Product Details:
Payment & Shipping Terms:
|

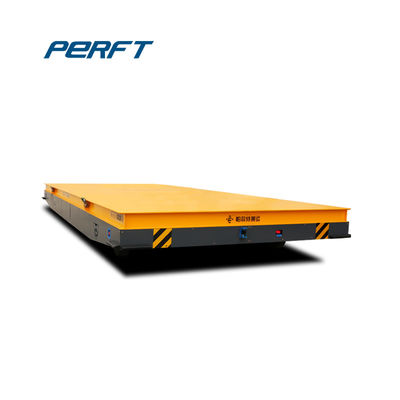

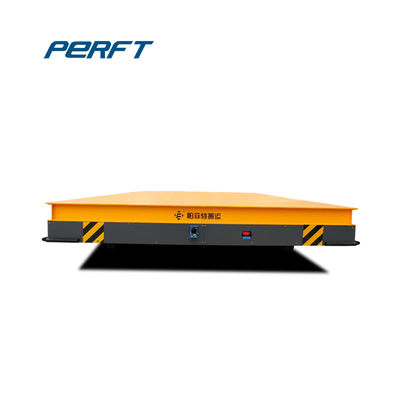

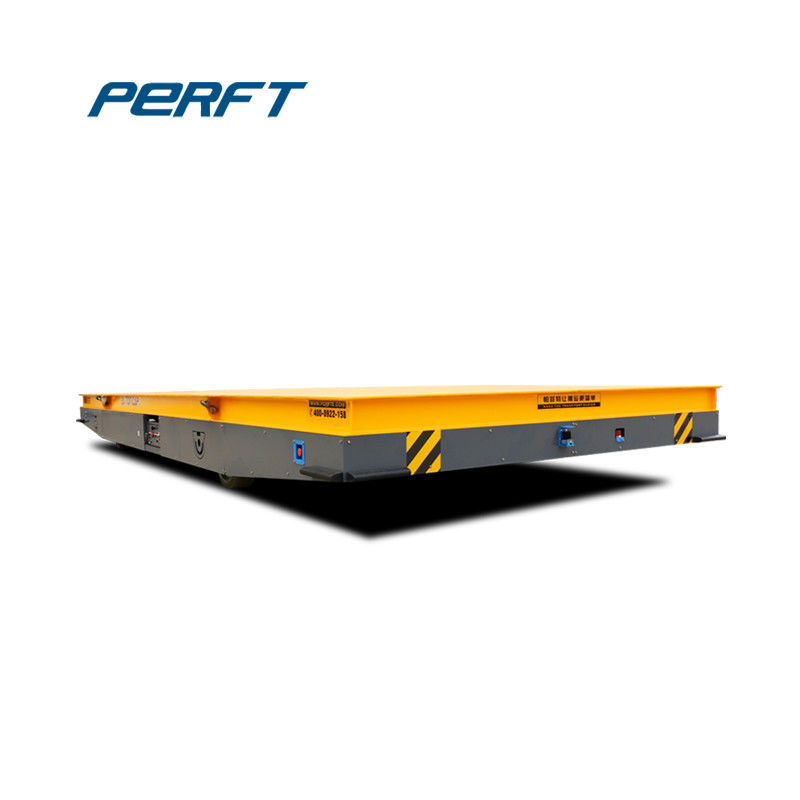

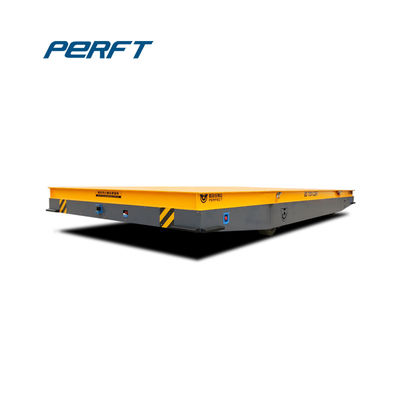

| Product Name: | Heavy Loads Flat Rail Cart | Powered Source: | Storage Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | 1435mm (Customized) | Color: | Black, Customized |
| Working Time: | 4-5 Hours | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| High Light: | metallurgical industry pallet transfer carts,customization pallet transfer carts,metallurgical industry battery transfer cart |
||
Introduction
Our line of industrial handling trolleys are designed to accommodate the needs of a wide range of industries including steel, copper, aluminum, automotive, stamping, heavy manufacturing and several others. These units are also used to convey heavy materials across crane bays or in areas not serviced by an overhead crane.
Some attachments are available on our handling trolley including "shock pads", "coil spring suspension" and articulating track assemblies. These facilities provide protection for the trolley from impact loading and poor track conditions.
All products are equipped with safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons.
Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application of Industrial Handling Trolley
Uses of industrial handling trolley:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality handling trolley solutions you need. Material handling trolleys are used:to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
