Product Details:
Payment & Shipping Terms:
|
Powered Source: | Storage Battery / Lead-acid Battery | Operation Mode: | Pandent And Remote Controller And PLC |
---|---|---|---|
Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
Color: | Yellow/Customized | Running Distance: | No Limited |
Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |

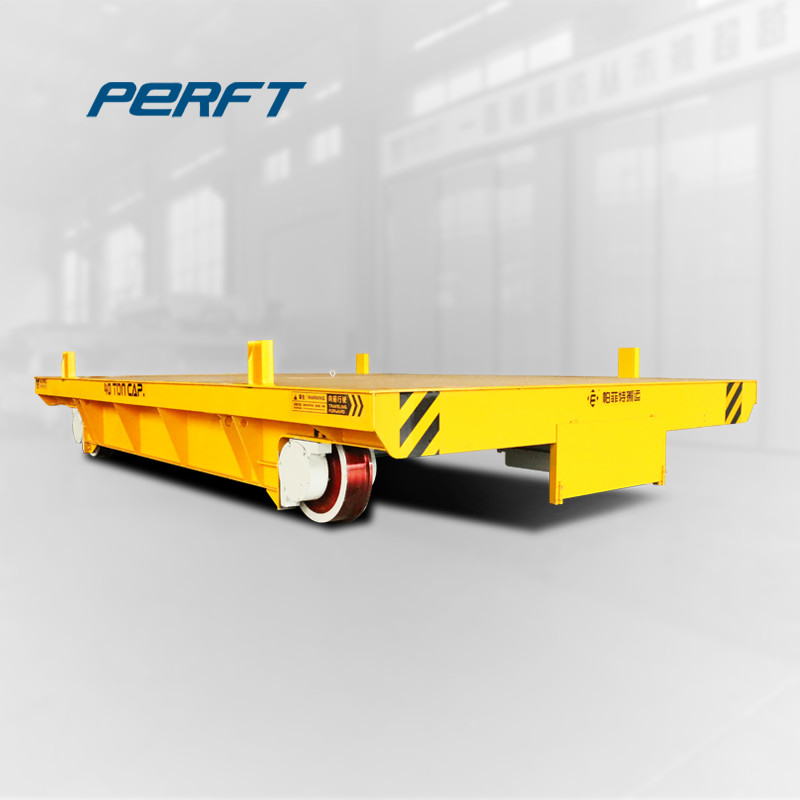

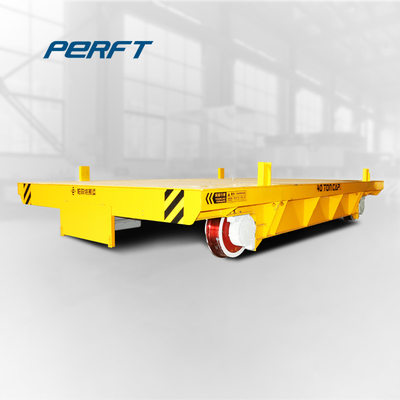

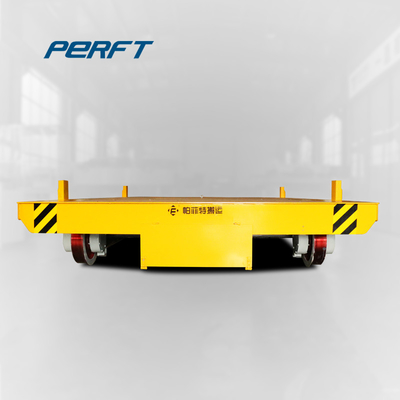

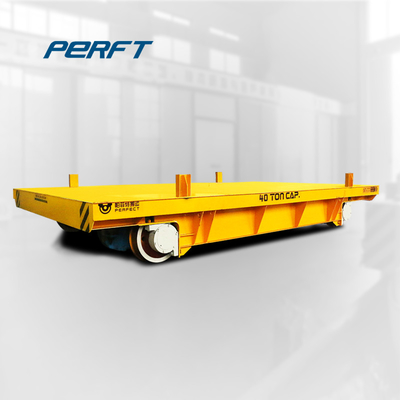

High Light: | wireless control electric transfer cart,electric transfer cart 20t,20t heavy duty transfer cart |
BXC SERIES TRANSFER CARTS TECHNICAL PARAMETER TABLE |
||||||
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
Height(H) |
450 |
550 |
650 |
900 |
1200 |
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
200 |
2000 |
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
Motor Power(kw) |
1 |
2.2 |
5 |
10 |
15 |
|
Battery Capacity |
180 |
180 |
330 |
440 |
600 |
|
Battery Voltage |
24 |
48 |
48 |
72 |
72 |
|
Running Time When Full Load |
4.32 |
4 |
3.3 |
3.2 |
2.9 |
|
Running Distance for One Charge(Km) |
6.5 |
4.8 |
4 |
3.8 |
3.2 |
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
