High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty

High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty
High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty

Large Image :  High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty

Product Details:
Place of Origin: China(mainland)
Brand Name: battery powered electric flat cars on rail
Certification: CE ISO SGS
Model Number: battery powered electric flat cars on rail
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2100~9000 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 sets month
Detailed Product Description
Product Name: Battery Powered Electric Flat Cars On Rail Powered Source: Battery
Capacity: 1-300T Warranty: 12 Months
Color: Customized Application: Industrial Filed
Feature: Easy Operation
High Light:

high temperature ladle transfer cart

,

battery powered ladle transfer cart

,

ladle transfer trolley heavy duty



battery powered Heavy Duty High Temperature Iron Ladle on rail for industrial Cart



Introduction

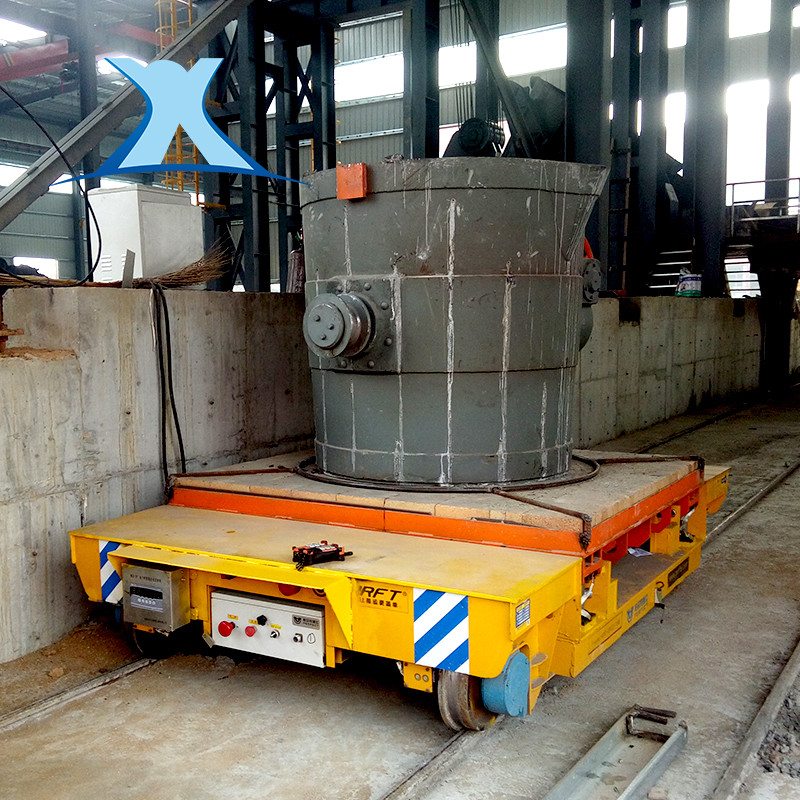

With the functions of steady traveling, stepless speed regulation, the Molten Steel Ladle Transfer Car is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the Molten Steel Ladle Transfer Car should be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance.
It can avoid the cart from damaging and shortening using time. During the cart working, it must be steady travel, steady start and slowly stop. In order to avoid the cart broken during working, there equipped two sets driving system, if the main driving system is broken, the spare driving system can be start at the same time.



High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty 0yConveyer Railway Conveyer



ailway Conveyer Railway Conveyer Railway Conveyer

Detailed Image

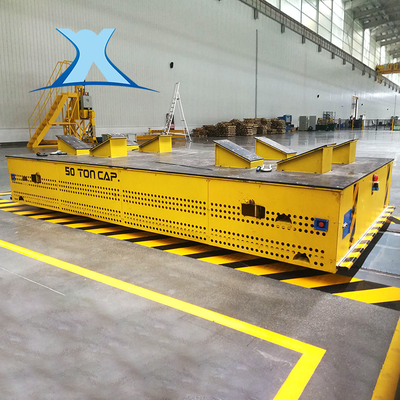

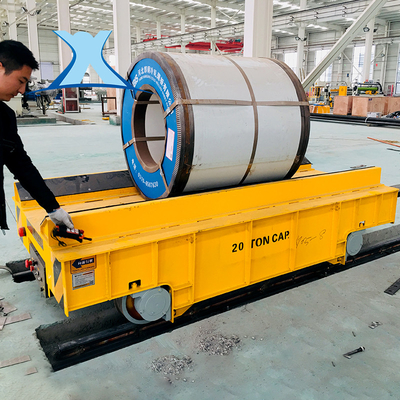

battery powered electric flat cars on rail


Technical Parameters

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100




Application

Transfer Cart
Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart, etc.
Rail Cart
Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter, etc.
Industrial Trailer
Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer, etc.
Cargo Transportation
Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie.
Special Handling Equipment
Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle, etc.
