Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant

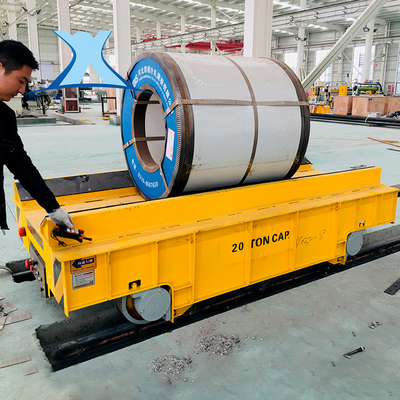

Large Image : Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant

Product Details:

Place of Origin:	China(mainland)
Brand Name:	rail transfer cart transport pallet
Certification:	CE ISO SGS
Model Number:	rail transfer cart transport pallet

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 2000~7800 SET
Packaging Details:	TRAP AND WOODEN CASE
Delivery Time:	20 work days after received balance payment
Supply Ability:	100 SETS MONTH

Contact Now

Detailed Product Description

Product Name:	Rail Transfer Cart Transport Pallet	Table Size:	Customized
Height:	Customized	Control Method:	Remote Control/Pendant
Running Speed:	0-20m/min	After-sales Service Provided:	Engineers Available To Service Machinery
High Light:	cable reel operated material transfer cart , remote control material transfer cart , steel pipe plant rail transfer cart

Cable Reel Operated steel pipe plant material rail transfer cart

Introduction of Material cart

Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

Detailed Image

Technical Parameters

Model		BDGZ-2t	BDGZ-20t	BDGZ-50t	BDGZ-100t	BDGZ-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Transformer Power(KVA)		3	6.8	10	30	30
Transformer Quanity		1	1	1	1	1
Running Distance(m)		70	70	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Application

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

About our Power team

Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
