Product Details:
Payment & Shipping Terms:
|
| Product Name: | Die Transfer Cart | Capacity: | 1-50T |
|---|---|---|---|
| Color: | Customized | Running Speed: | 0-20m/min |
| Certificates: | CE ISO SGS | ||
| High Light: | free turning die transfer cart,60t die transfer cart,60t battery transfer cart |
||

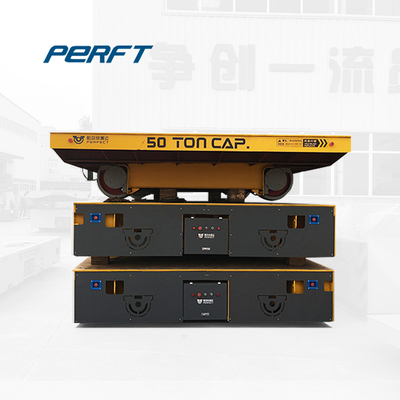

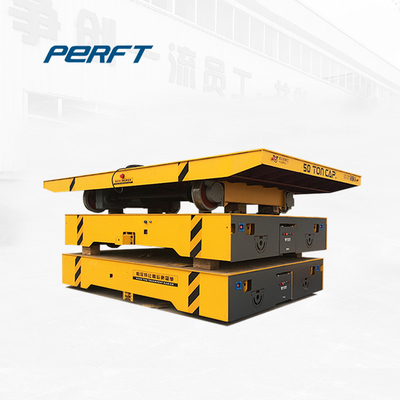

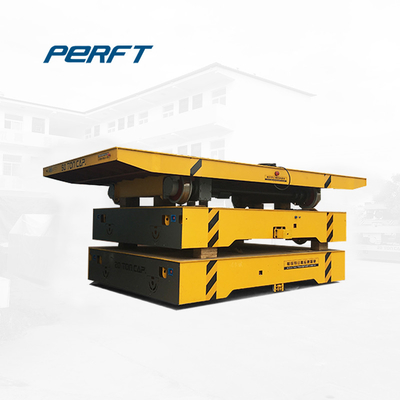

Description of battery transfer trolley
With high operation security and good flexibility, our heavy loads transfer vehicle can be applied to high-temperature, high use frequency, and medium-distance or long-distance transportation applications.
This series of heavy loads transfer vehicle uses rails instead of cable wires to offer power. It is safer and more reliable to use. In addition, It can transport on the curved track, circular track, or diverting track. Its application brings great convenience to transportation layout arrangement in factories.
Parameter Table
| Model | BDGZ-2t | BDGZ-16t | BDGZ-30t | BDGZ-50t | |
| Rated Load(t) | 2 | 16 | 30 | 50 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 4500 | 5500 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | |
| Height(H) | 450 | 500 | 600 | 650 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4200 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | |
| Wheel Diameter(mm) | 270 | 350 | 400 | 500 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2 | 3.5 | 5 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 20 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 50 | |
| Max Wheel Load(KN) | 14.4 | 64.5 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.5 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
