Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | Coil Transfer Trolley | Operation Mode: | Pendant And Remote Controller Or PLC |
|---|---|---|---|
| Application: | Factory, Warehouse, Port, Construction, Steel Structure | Rail Gauge: | 1435mm (Customized) |
| Color: | Customized | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Additional Unit: | Cylindrical Container On Table/Customized |
| High Light: | 2t coil transfer cart,pendant coil transfer cart,2t coil transfer trolley |
||
2022 New Production Cable Powered Transfer cart Customized Color
Introduction of Transportation cart
Our steel coil transfer wagon carriage are used to transport steel coils and pipes for metal industry. This coil transfer wagon is designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil transfer wagon is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer wagons are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.
Application of Towed Cable Powered Transportation
Our products are used in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
Parameter
|
Model |
BTL-2t |
BTL -20t |
BTL -50t |
BTL -100t |
BTL -150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Height(H) |
450 |
550 |
650 |
850 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
0.8 |
2.5 |
5.5 |
11 |
15 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|

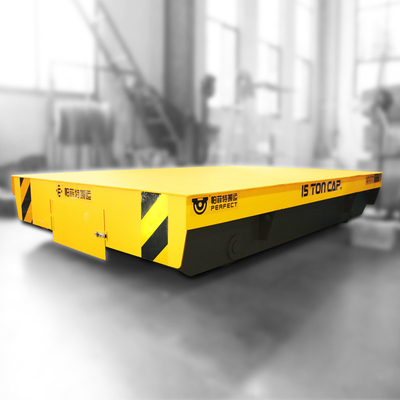

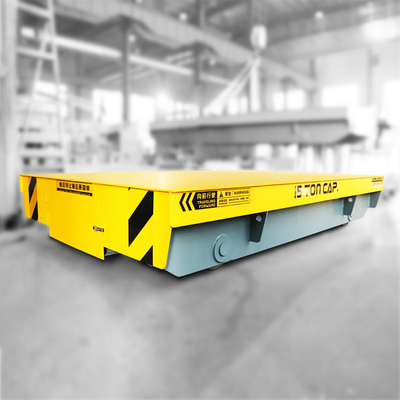

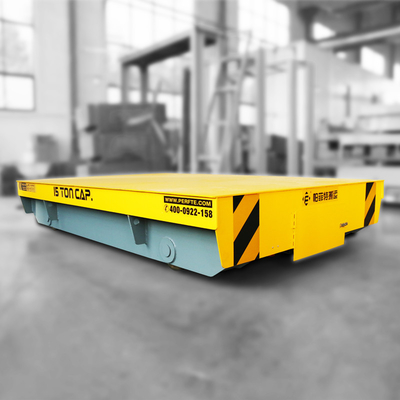

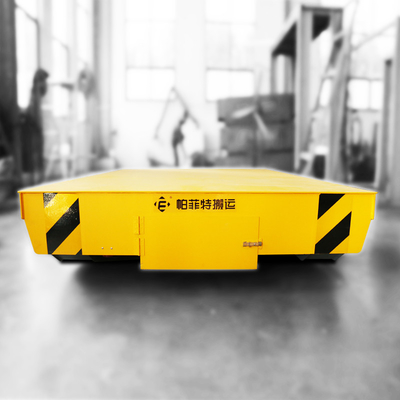

Image Details
Why Choose US
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
