Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rail Moving Coils Transfer Trolley | Power Supply: | Battery Powered |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Running Distance: | Unlimited |
| Capacity: | 15 Ton | Application: | Coil Transportation |
| Warranty: | 1 Year | Color: | Yellow, Customized |
| Wheel Type: | Cast Steel Wheel | Usage: | Used For Transport Coils, Paper Colls, Etc. |
| High Light: | coil transfer cart,motorised rail trolley |
||
15 Ton Yellow Bay to Bay Transfer Car on Rail Moving Coils Transfer Trolley
Introduction of Rail Moving Coils Transfer Trolley

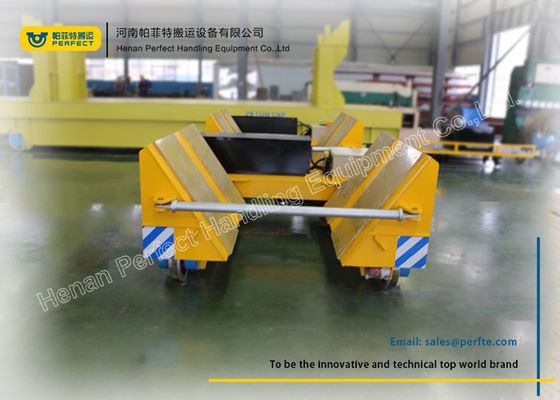

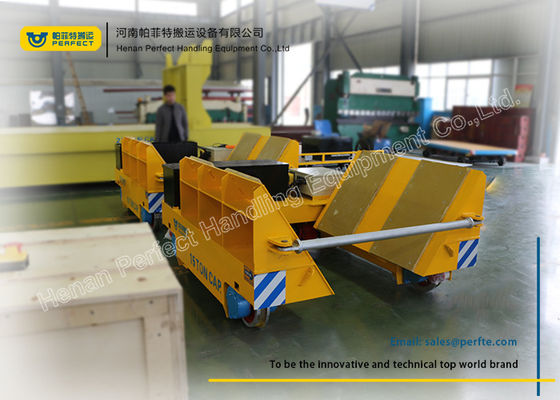

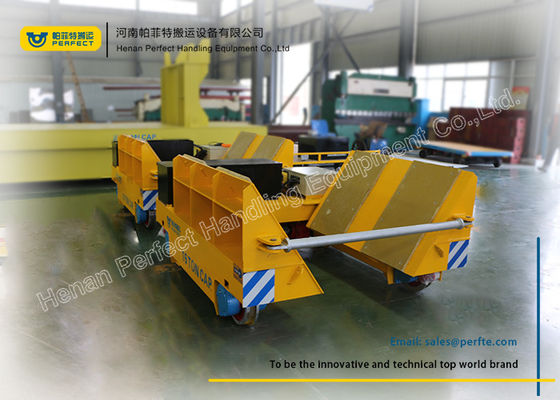

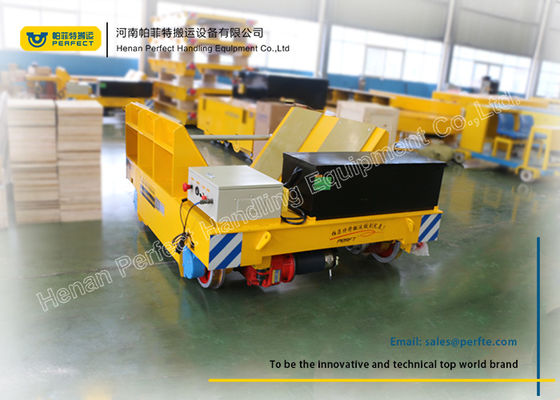

Our rail moving transfer teolleys are powered by storaged battery. The direct-current machine gets its power from the electric control system, which makes the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed. V-shape and roller are mounted on Coil rail transfer trolley to protect the coil from falling down from the Coil rail transfer trolley. The surface of the trolley is made up of high temperature proof materials. And all the parts can work normally
| Model | 2t | 20t | 50t | 100t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
Contact Information
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
