Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Cable Reel (Optional) | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Color: | Yellow/Customized | Working Time: | Whole Day |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| High Light: | heavy load cart,heavy duty industrial carts |
||

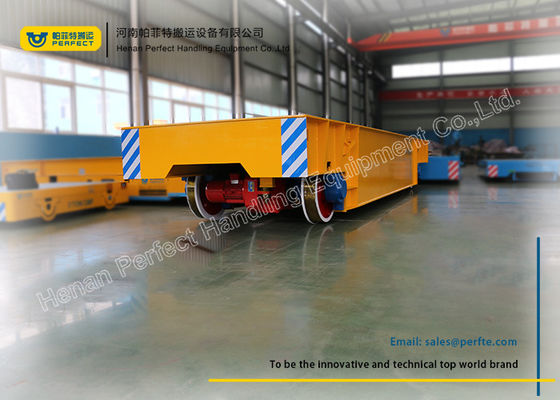

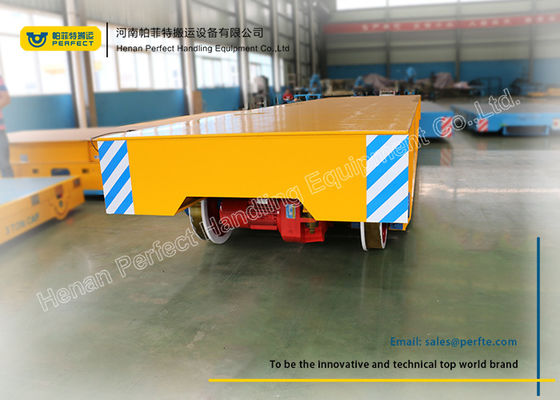

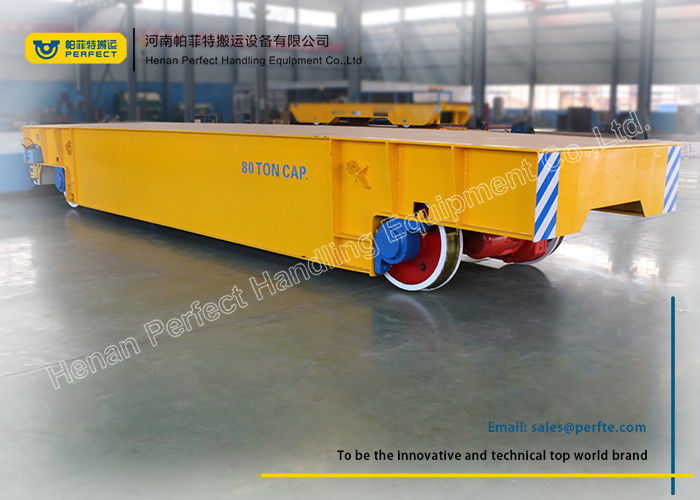

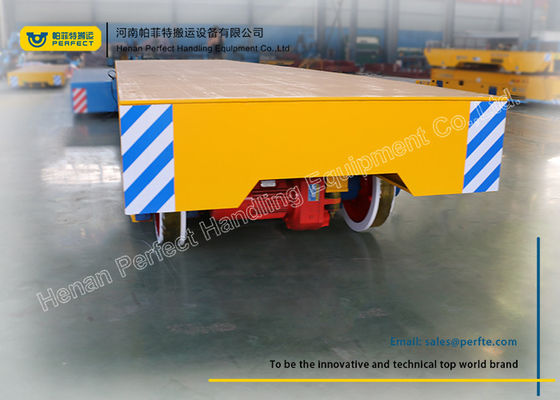

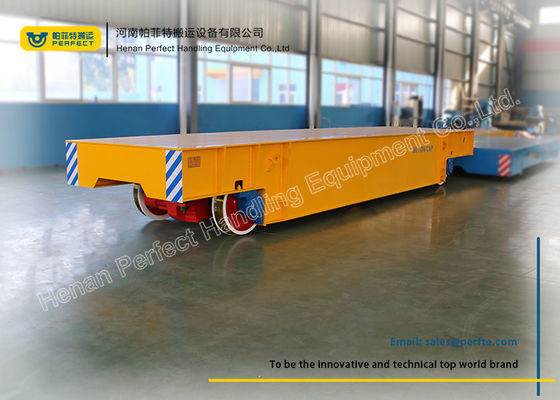

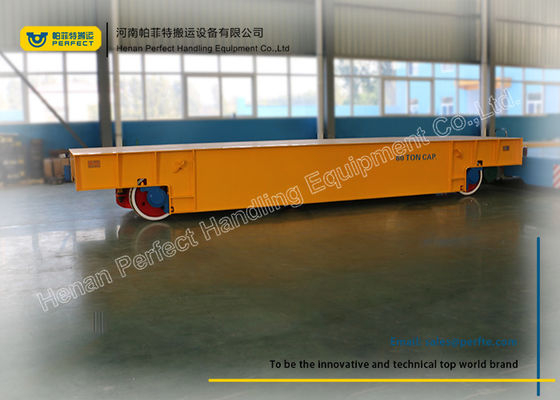

Product Introduction---Chemical Plant Motorized Transfer Trolley
Our chemical plant motorized transfer trolley powered by the cable reels. The hydraulic lifting device, V-shaped structure and fixed device can be installed on the trolley. This series’ chemical plant motorized transfer trolley for shuttling goods are suitable to be used in the bad environment, for example, high-temperature and explosive condition.
With its simple structure and low price, this series chemical plant motorized transfer trolley is more often used to transfer materials from one workshop to another. It has the advantages of unlimited using time, no strict requirements for the railway, the load capacity is not limited and can be used frequently. If the running distance is more than 50m, a cable arranger needs to be installed to arrange the cables.
Application Sites---Chemical Plant Motorized Transfer Trolley
The chemical plant motorized transfer trolley is powered by cable reels which is installed in the trolley. It conducts AC 380V directly into the electrical control system of the trolley to let it start, stop, go forward and backward and so on. The operation system is low voltage 36V power.
Related Products
| Product Name | Model | Power Supply Mode | Load Capacity | Running distance | Usage |
| Rail Transfer Cart | BDG | Conductor Rail |
We can design 1-300t load transfer cart. The load capacity and table size is customized according to the working condition and the client’s requirements.
|
≤70m | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | BXC | Battery | Unlimited | ||
| Cable powered Transfer Trolley | BJT | Cable Drum | ≤50m | ||
| Electric Transfer Cart | BTL | Trailing Cable | ≤20m | ||
| Busbar Powered Handling Cart | BHX | Busbar | Unlimited | ||
| Towed Rail Trailer | BP | Towed by other machine | Unlimited | ||
| Steerable Towed Car | BWT | Manually or towed by forklift or other machine | 1-150t on cement or steel floor. | Unlimited | |
| Trackless Handling Machine | BWP | Battery | Unlimited |
Company Strength
We are professional and experienced manufacturer,exporter of material handling equipments in China, meanwhile we also design material transfer cart solutions according to client's demand.
Our main products include rail transfer cart, battery transfer car, no rail transfer trolley, traverse, transfer table, turnplate, ferry car, track carriage etc. Our products have passed the authentication of quality system ISO9001, and SGS, CE certifications. All of our products accord with machinery industrial standard JB/T61 27-10.
Why Choose Us?
This kind motorized transfer trolley is by no less than 120% load bearing safety test before shipping.
Our motorized transfer trolley meeting JB/T6127-10 and crane girder standards ensure durability and long lifetime.
The capacity of our motorized transfer trolley ranging from 1 to 300 tons.
We adopt crane standard slab steel beam box structure,safety, little table deformation and large load capacity.
Heady duty packaging to provide protection during shipping.
