Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Transfer Trolley | Powered Source: | Storaged Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | 1435mm (Customized) | Color: | Yellow, Customized |
| Working Time: | 4-5 Hours | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| High Light: | electric transfer cart,load transfer trolley |
||

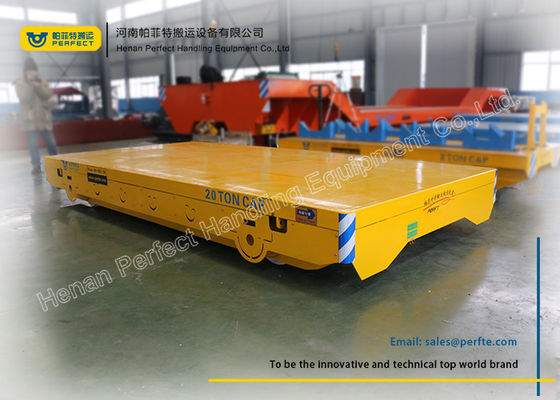

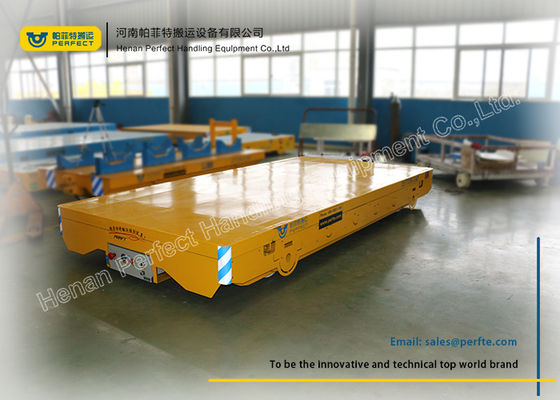

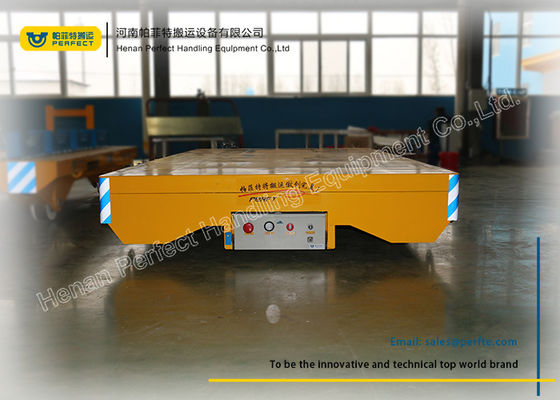

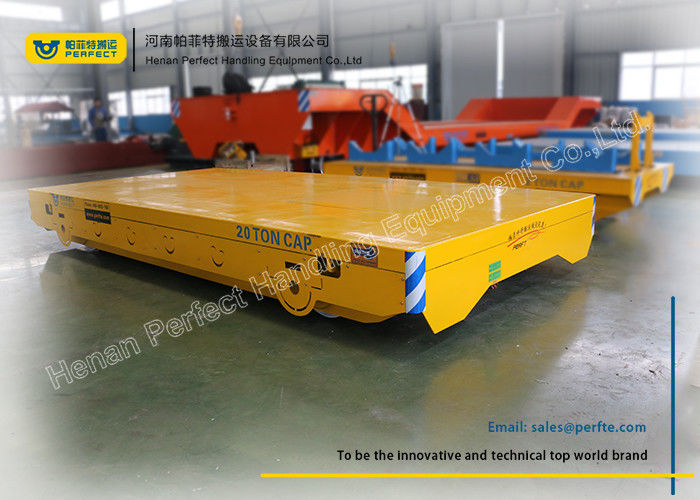

Product Preview of Industrial Transfer Trolley
Our transfer trolley moves on rails. It's special designed and powered by storaged battery. As we all know, for industry, we often need to move or transfer heavy things from one place to somewhere else. Thus, we need a good transfer trolley for us to finish our missions efficiently. The battery is free of maintenance, and the service life is over 3 years. You can control it by pendant or remote control. We can also equipment some other equipment as per you needs.
Application Fields of Industrial Transfer Trolley
We are a professional company and produce many different of products you want. If you need special type, customization is also accepted. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport equipment, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. According to your demands, we can assure that you will be satisfied with our product and service. We are working hard to provide the suitable products you want.
Production Process of Industrial Transfer Trolley
(1): The steel plate is transported from warehouse to CNC cutting workshop for cutting.
(2): Workers put the cut steel plate together according to the design drawing.
(3): Weld the steel plate with automatic welding machine after the preliminary assembling.
(4): Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
(5): Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
(6): Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
(7): Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
(8): Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.
Parameters of Industrial Transfer Trolley
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | |
| Battery Capacity | 180 | 180 | 330 | 440 | |
| Battery Voltage | 24 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
Packing and Shipment
We try our best to make sure the delivery is in good condition.The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
