Product Details:
Payment & Shipping Terms:
|
| Running Ground: | Cement Or Smooth Ground | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Color: | Yellow, Customized | Working Time: | 4-5 Hours |
| Wheel Type: | Polyurethane Solid Wheels | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| High Light: | industrial transfer car,industrial motorized carts |
||

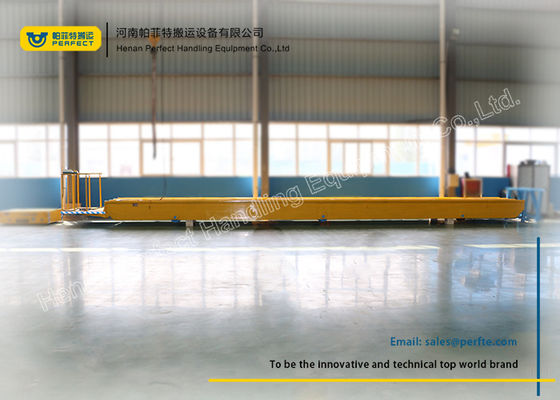

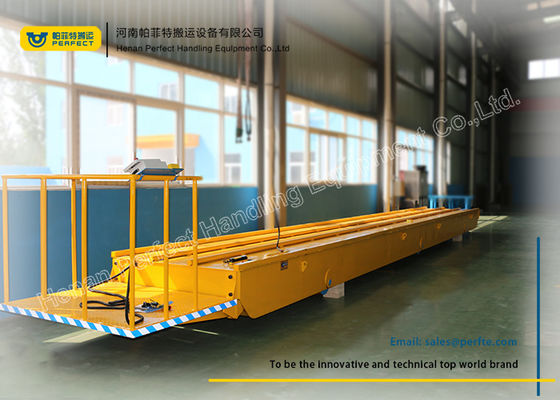

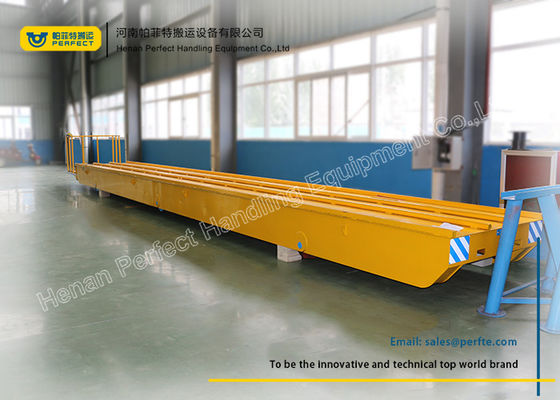

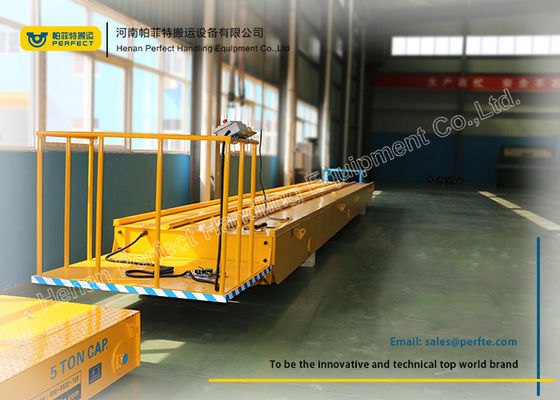

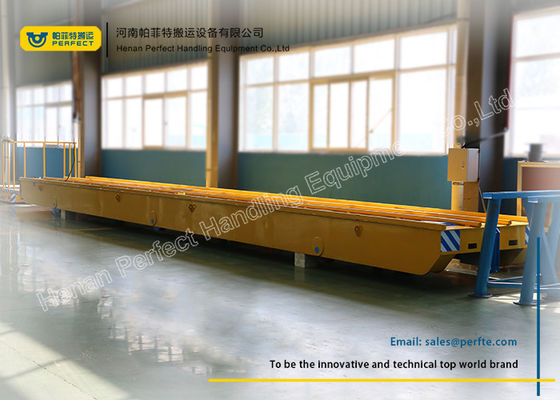

General Preview of Heavy Cargo Transfer Wagon
Our heavy cargo transfer waggon is operated on cement floor rather than on rail. thidskind of transfer wagon is power by storage battery. The inner wheel is made up of cast steel and the outer surface is polyurethane to make sure that the wagon run more smooth and have a long service life. We can also fit specific devices for you. you need to charge it for about 8 hours and then it can work over 4 hours. It can turn for 360 degrees without moving. We also fit alarm device and automatic charer device to make sure the safety.
Application Fields of Heavy Cargo Transfer Wagon
1: Coil Transportation
We can design and produce the transfer wagon for coil transportation. The flat of the wagon is in V shape and the coil material will be stable.
2: Factory transport
In factory, the space is limited. Sometimes, it's hard to transport materials. However, our transfer vehicle can turn in 360 degrees. It's no doubt that this is a good choice for you!
3: Ship Building
Our transfer vehicle can also be used in ship building industry. We can use our transfer vehicle to transfer heavy steel and carry out other heavy duty tasks.
Parameters of Heavy Cargo Transfer Wagon
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Other functions | Turning light, night light and power display | ||||
Packing & Shipping
The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
