Product Details:
Payment & Shipping Terms:
|
| POWER SUPPLY: | Battery | Size: | Customization |
|---|---|---|---|
| Feature: | Easy Opration | Color: | Customization |
| Brand Name: | Perfte | Model: | BTL |
| High Light: | Customization Ladle Rail Transfer Cart,Customization Ladle Material Transfer Carts,SGS Rail Transfer Cart |
||

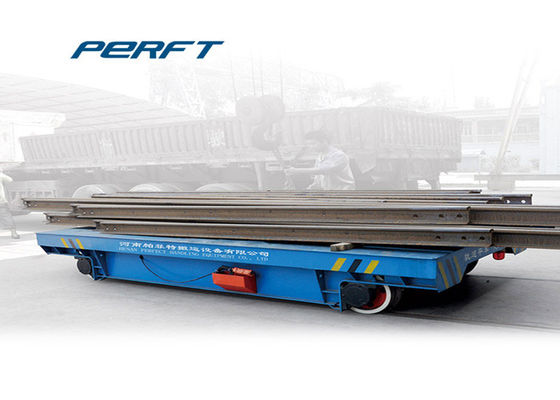

Worke House use Customization color Havy Load Electric Rail cart With Remote Control System
Product description:
The workshop rail heavy duty flat car introduces the 380V cable directly into the flat car electrical control system to control the start, stop, forward and reverse of the flat car. The workshop rail heavy duty flat car is powered by the cable that is placed on the ground by the movement of the flat car.The cable is placed in the center of the two tracks, and the operating system is controlled by a low voltage 36V power supply. A hydraulic lifting system can be installed on the flat car, which is suitable for long distance transportation in harsh, high temperature, explosion proof and other environments. The requirements for track laying are not high.

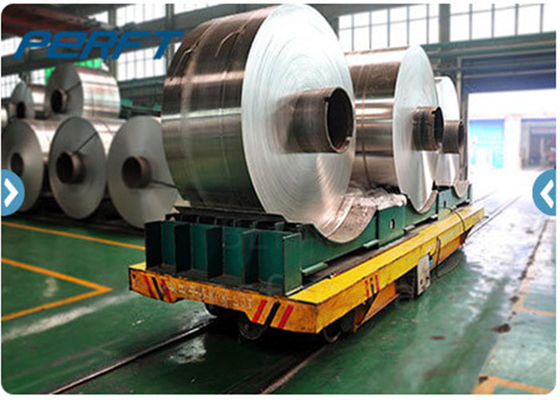

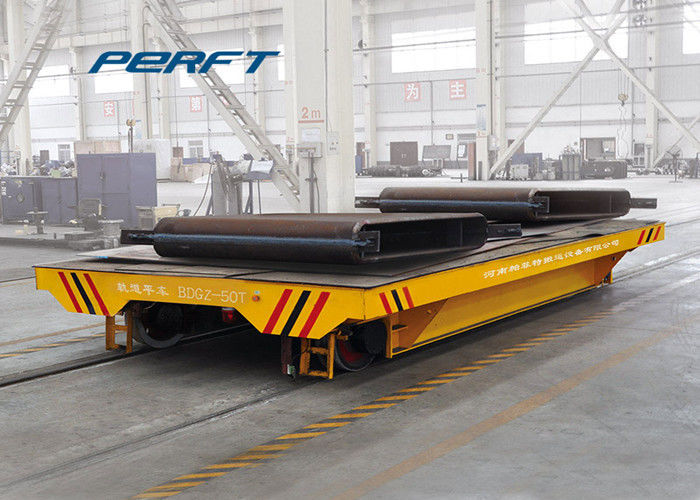

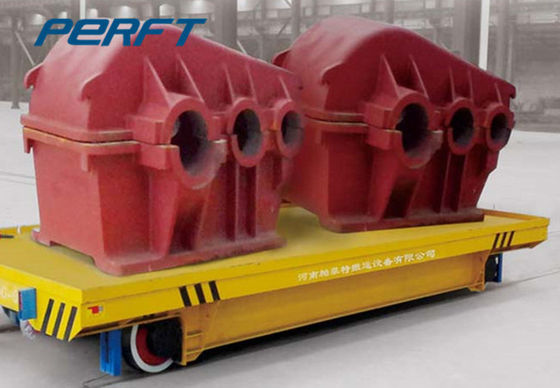

Details picture
ADVERTAGES:
Our team
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
Technical Parameter
| Model | BTL-2T | BT-20T | BTL-63T | BTL-100T | BTL-150T | |
|---|---|---|---|---|---|---|
| Rated Load(t) | 2 | 20 | 63 | 100 | 150 | |
| Table Size(mm) | (L) | 2000 | 4000 | 5600 | 6500 | 10000 |
| (W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| (H) | 450 | 500 | 750 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4300 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 600 | 600 | 600 | |
| WheelQuantity | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 75 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 7.5 | 11 | 15 | |
