Product Details:
Payment & Shipping Terms:
|
| Product Name: | Remote Control 10 Ton Bogie Electric Flat Transfer Carriage | Item: | Cart |
|---|---|---|---|
| Material: | Q235 | Usage: | Heavy Duty |
| Name: | Battery Powered Railway Motorized Trolley | Capacity: | 1-300T(Customized) |
| Certificates: | CE ISO SGS | ||
| High Light: | rail transfer car 10 ton,flatbed rail transfer car 10 ton,remote control rail transfer car |
||

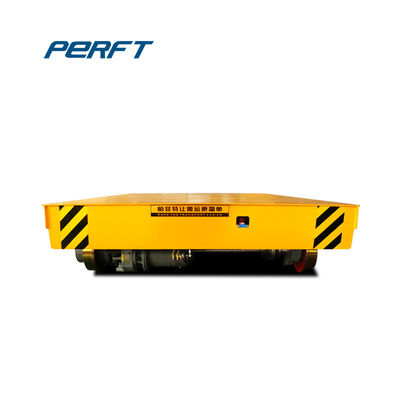

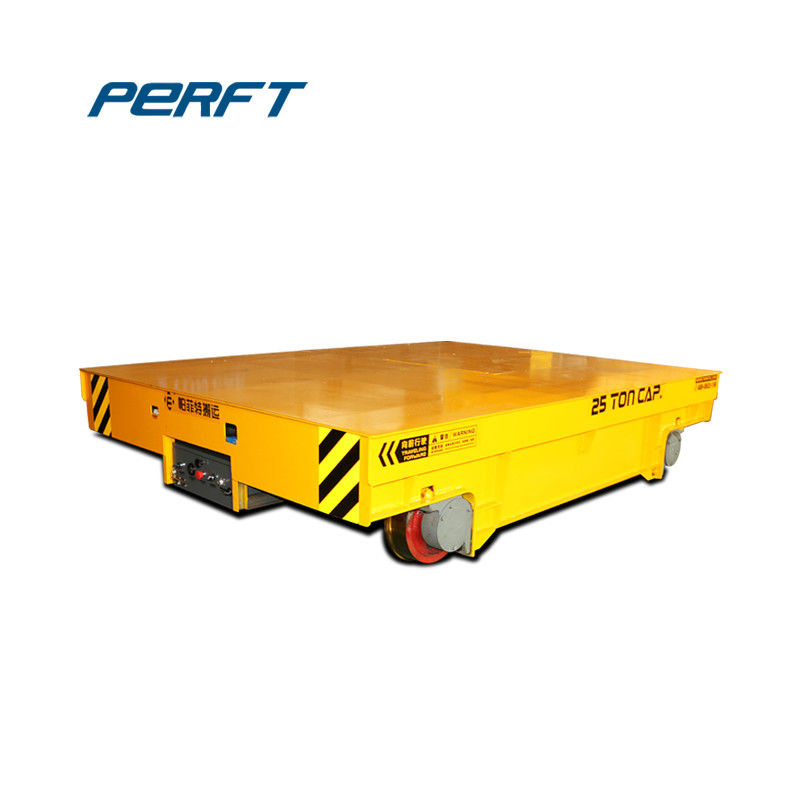

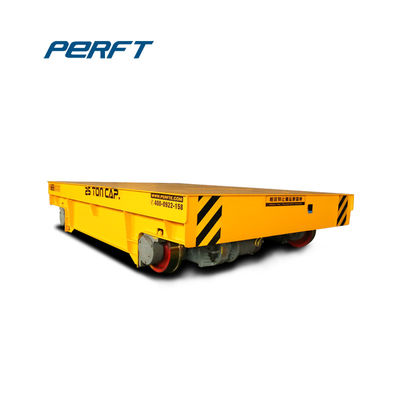

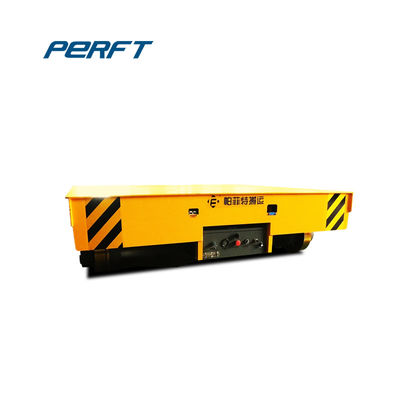

Remote Control 10 Ton Heavy load Electric Transfer Platform on Rails for warehouse
PERFECT is specialized in designing and manufacturing of heavy duty material transport equipment. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport solution, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. The coil transfer carts are used to transport steel coils and pipes, die, machine parts, paper products for manufacturing industry; The factory transport solution is mainly to offer heavy duty horizontal transportation for manufacturing;while the motorized battery operated transport vehicle specially apply to transport heavy loads from one warehouse to another. With the steel box girder structure and safety devices make the electric transfer vehicle with easily, precisely and safely move up to 200 tons. .
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Applicable sites
PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
Advatages
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
