Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Trackless Transfer Car | Application: | Industrial Filed |
|---|---|---|---|
| Color: | Customized | Capacity: | 1-300ton |
| Warranty: | 12 Months | Usage: | Unloading Cargo |
| Table Size: | Customized | Height: | Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery | ||
| High Light: | Motorized Electric Flat Transfer Cart,Trackless Flat Transfer Cart,Material Transfer Cart 3000X2000 |
||

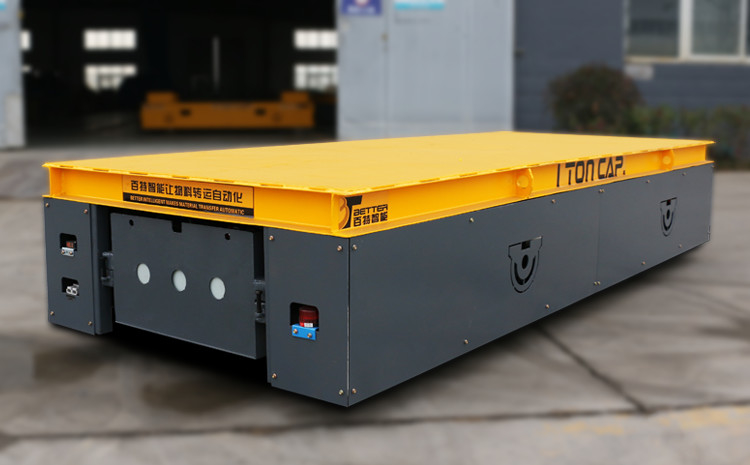

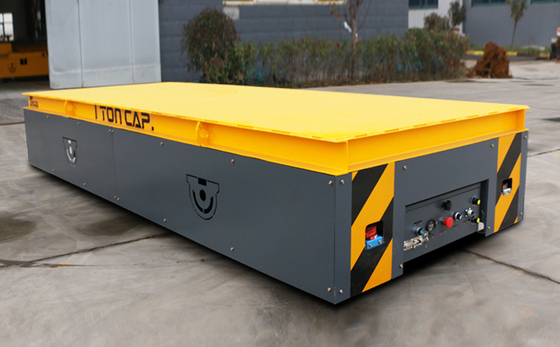

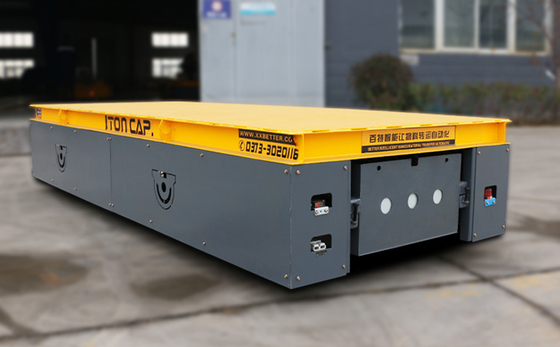

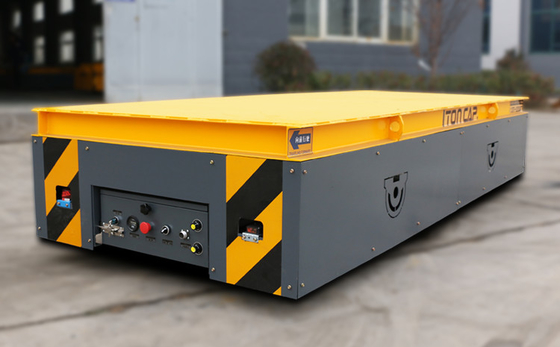

Easy to operate automatic trackless Motorized Electric Flat Transfer Cart
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 | |
| Structure of Frame | Steel plates welded, beam | |||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 | |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 | |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | |||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 | |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 | |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | |
| Turning type | Turning while driving with no stop | |||||
| Control method for turning | Control button | |||||
| Turning structure | Mechanical | |||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | |
| Wheel material | ZG55+hydropurture | |||||
| Running speed (m/min) | 0-15 | 0-12 | ||||
| Brake principle | Electric magnetic brake | |||||
| Ground balance | Mechanical automatic adjustment | |||||
| Operation method | With wire or no wire | |||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | |||||
| Charger's installation | Installed on cart | Split-type | ||||
| Cart color | Yellow and warning sign | |||||
| Charger's function | Automatic stop for obstacles | |||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | |||||
| Warning equipment | Sound and light | |||||
| Other functions | Turning light, night light and power display | |||||
