| Product Name: | Electric Trackless Tunnel Transport Vehicle For Material Handling | Warranty: | 12 Months |
|---|---|---|---|
| Color: | Customized | Application: | Industrial Filed |
| Feature: | Easy Operation | ||
| High Light: | Steerable Molten Metal Transfer Cart,Electric Trackless Metal Transfer Cart,50t Cement Material Transfer Cart |
||

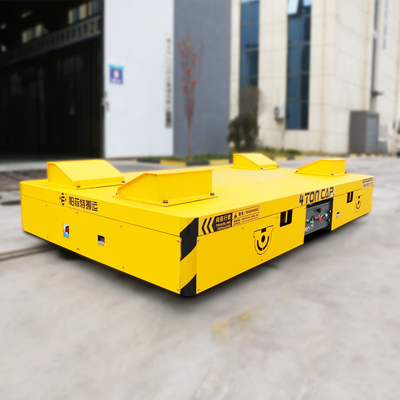

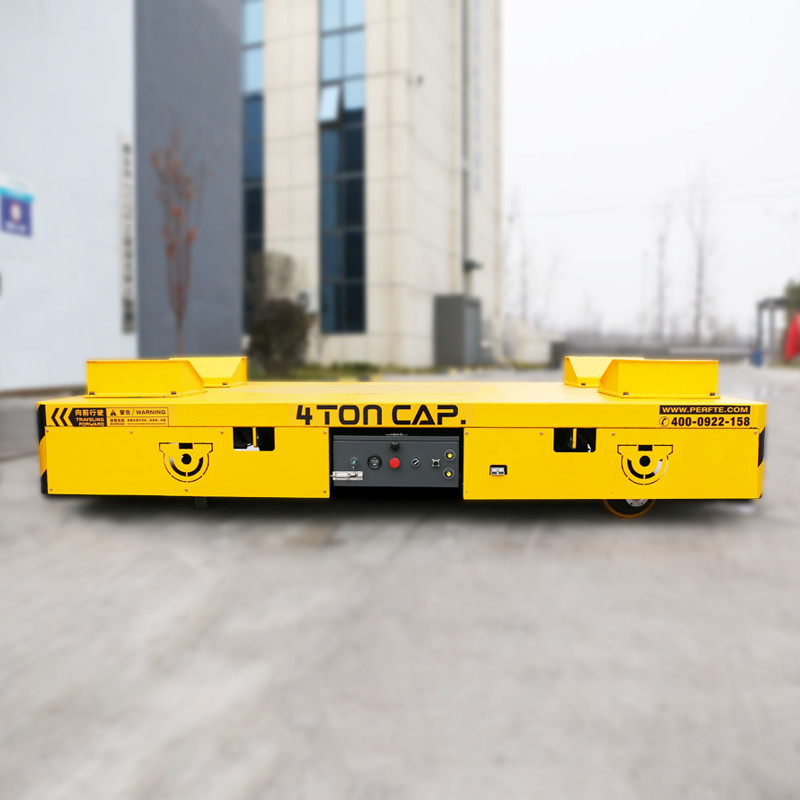

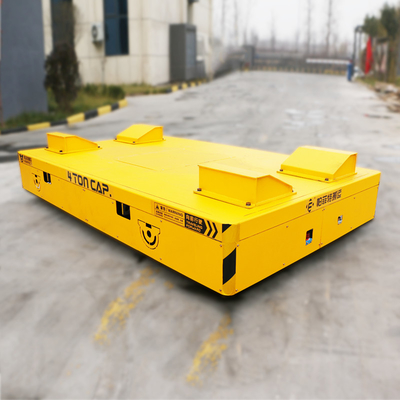

Our trolley are powered by battery. It's trackless and consists of steel structure bearing frame. When the current get in the electric control system, the machine is powered to make the trolley stop, start, move forward and move backward. It can also turn around for 360 degrees without moving forward or backward. As per clients' request, we can provide all kinds of trackless transfer trolley for you according to the working environment and floor condition.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
1. Q: What is the size and load of this motorized trackless transfer cart ?
A:The size and load of our this trackless over-span traction flat smart agv electric transfer vehicle is customized design according to your requirement.
2. Q: How should I operate this motorized trackless transfer cart ?
A: The trackless over-span traction flat smart agv electric transfer vehicle is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this motorized trackless transfer cart ?
A: Yes, there are electromagnetic brakes on the Motorized trackless cart. When the trackless over-span traction flat smart agv electric transfer vehicle is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the Motorized trackless cart, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the motorized trackless transfer cart and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the Motorized trackless cart to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special Motorized trackless cart, such as hydraulic lifting trackless over-span traction flat smart agv electric transfer vehicle, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
