Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Storage Battery | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Load Capacity: | 1-200Ton/ Customized | Color: | Yellow And Blue/Customized |
| Working Time: | 6~7 Hours | Wheel Type: | Polyurethane Coated Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Parameter: | 3000*2000*450 | Warranty: | 12 Months |
| High Light: | Steel Mill Battery Transfer Cart,Polyurethane Coated Wheel Battery Transfer Cart,35t Lathe Carriage |
||

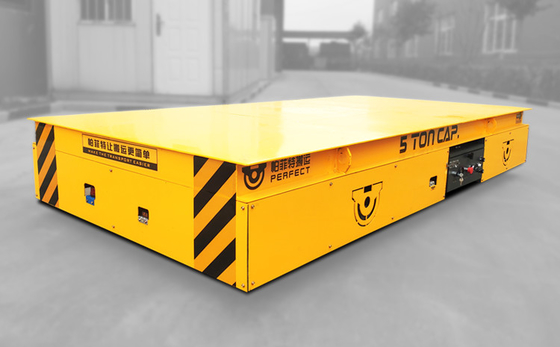

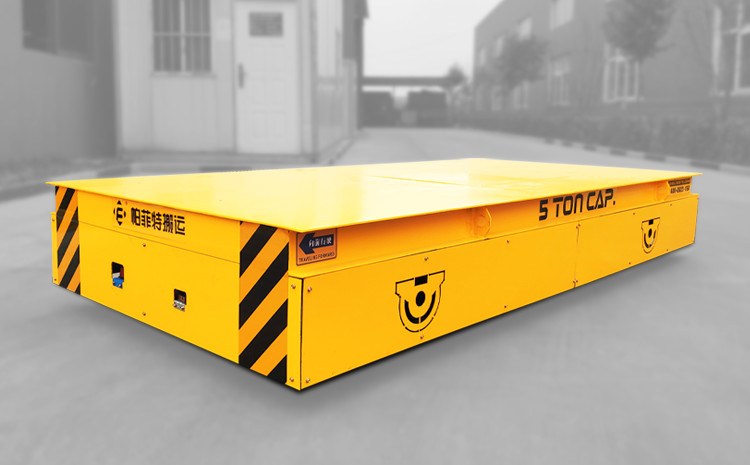

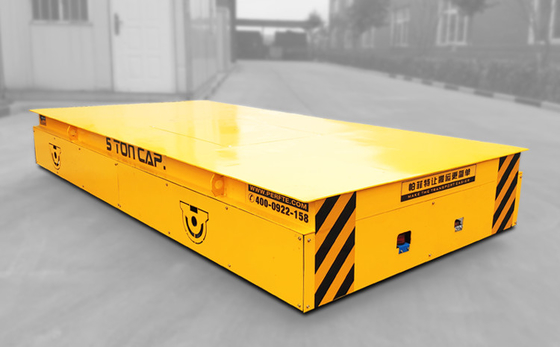

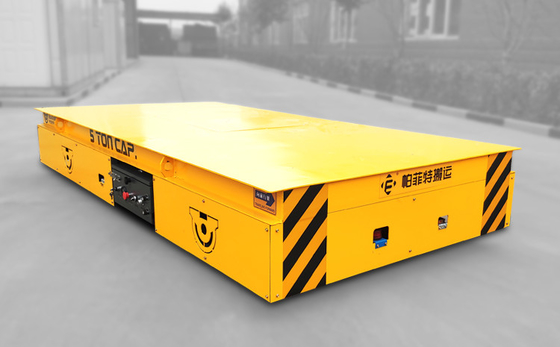

35t Lathe Carriage No Rail Steel Mill Battery Transfer Cart with remote control
Introduction of Remote Control Transfer Table
The 35T workshop lathe carriage no rail transfer cart has been widely used for their utmost extent working flexibility. Due to there is no predefined pathway and can steer in any direction and can run on any kind of floor the workshop lathe carriage no rail transfer cart is very beneficial to bring the heavy duty where overhead cranes cannot reach. In short, the no rail transfer cart symbolizes the best method for all those appliances with delicate handling issues in limited space.
More importantly, operating easiness make the workshop lathe carriage no rail transfer cart immaculacy to meet the most important demands: where places are very limited and pathways are extremely constrained.The conception of each transfer cart is guided with a preliminary study about particular needs of user and consequent use occasions.
Product porpuse
The lathe carriage no rail transfer cart of Henan Perfect Handling Equipment Co., Ltd has a wide range usage in industries, manufacturing and die-making plants.The no rail transfer carts are essential handling machines to cranes lifting heavy loading at ground and the superior solution for material transferring.
Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display |
||||
