15T Heavy Load Electric Ferry Transfer Cart Transporting Cargo For Workshop

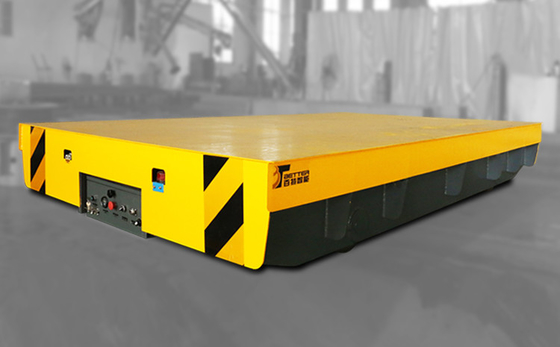

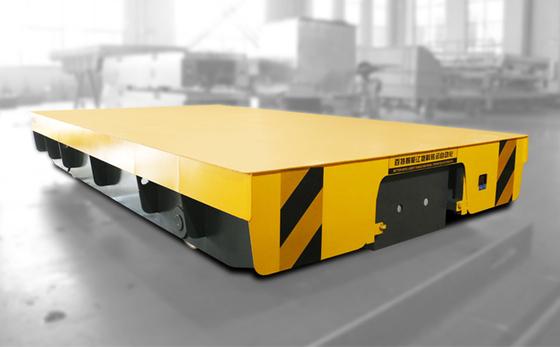

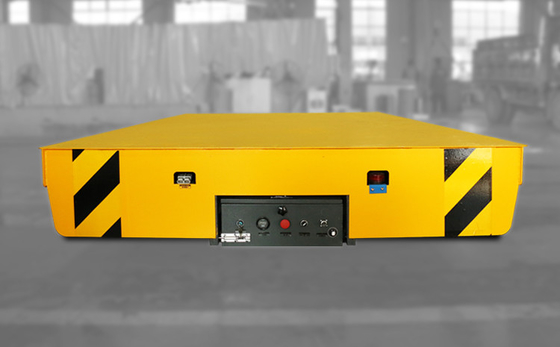

Large Image : 15T Heavy Load Electric Ferry Transfer Cart Transporting Cargo For Workshop

Product Details:

Place of Origin:	China(mainland)
Brand Name:	cable drum power railroad 15T transfer cart
Certification:	CE ISO SGS
Model Number:	cable drum power railroad 15T transfer cart

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 4000~8000set
Packaging Details:	trap and wooden case
Delivery Time:	20 work days after received balance payment
Supply Ability:	100 sets month

Contact Now

Detailed Product Description

Product Name:	Cable Drum Power Railroad 15T Transfer Cart	Usage:	Heavy Duty
Color:	Customized	Capacity:	Customized
Running Speed:	0-20m/min	After-sales Service Provided:	Engineers Available To Service Machinery
High Light:	15T Electric Ferry Transfer Cart , 20m/min Electric Ferry Transfer Cart

15T Heavy Load Electric Ferry Transfer Cart Transporting Cargo used for workshop

Introduction

The Crossing Rails Ferry Transport Cart is made up of two parts. The upper car is used for transporting cargo. The upper can can be equipped with V shape support, lifting platform. The down car is usually designed to run underground. The rail is mounted underneath the car and used for connecting with other rails in workshops which makes the upper car be able to run on parallel rails. The Crossing Rails Ferry Transport Cart can realize cargo transfer among crossing rails. It's more convenient and could be used separately compared with rotating platform.

Feature of cart

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Technical Parameter

Model		BTL-2t	BTL-20t	BTL-50t	BTL-100t	BDGS-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		0-20
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Technical Process of 15T transfer cart for workshops transfer

1. Moving the steel plate from storage area to cutting process area by crane;
2. According to the cutting drawing cutiting steel plate by the numercial control cutting machine;
3. The mobile welding machine is used for precise welding of diferent parts of the frame;
4. Fine grinding and weld inspection of the weld joint;
5. For every car primer spray, toccat, perfect antirust, ensure th ebeauftiful appearance;
6. Installation of the whole internal parts of the wheel and the car body;
7. Commissioning the vehicle operation and electrical parts, then test after completion of commissoning:
8. Zero load test and load test before shipping.
