Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Lead-acid Battery | Operation Mode: | Pandent And Remote Controller And PLC |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Running Distance: | Ulimited | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Dimension: | Customized | Guarantee Period: | 12 Months |

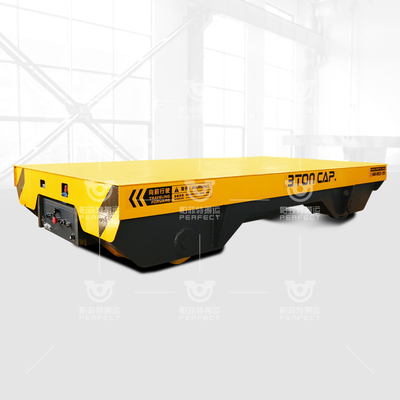

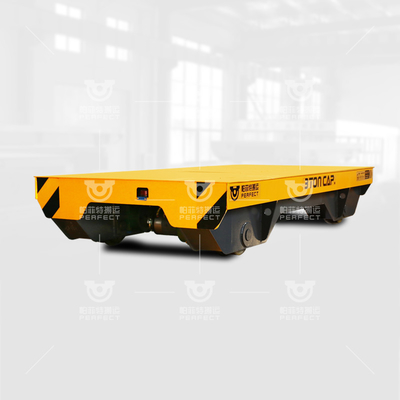

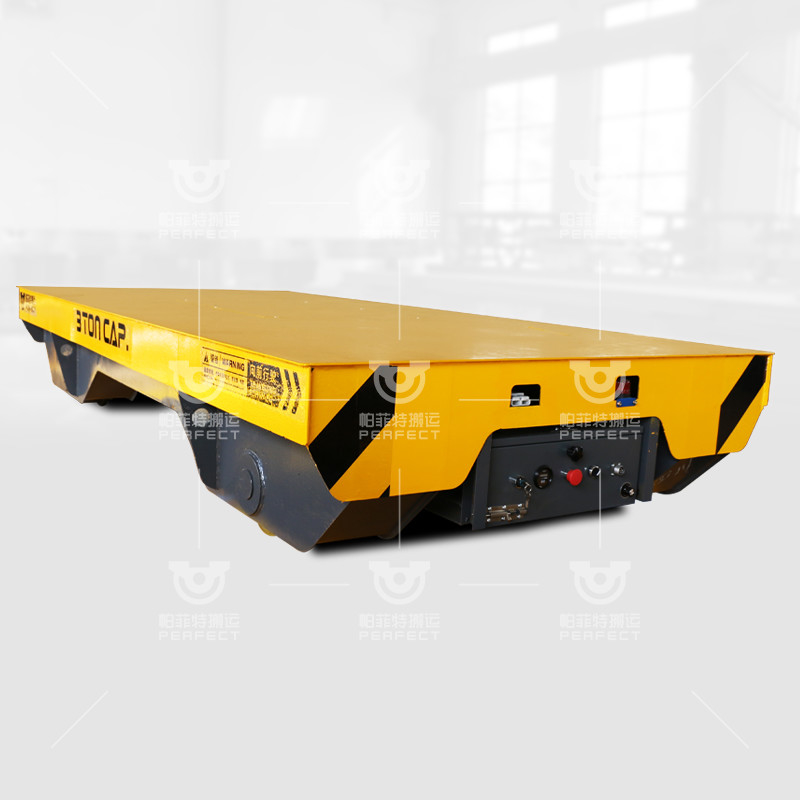

| High Light: | Heavy Load Tundish Transfer Car,Q235B Steel Material Die Transfer Cart |
||
Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Uses of heavy industrial transfer carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
· Safe and environment friendly
· High start torque
· Small impact to the gear reducer
· No restriction of the running distance
· Can running on s-shape rail, arc-shape rails even perpendicular rails
· Has no limit on working distance
· Anti-explosion,Anti-high temperature
· Stable start, big starting power, long lifetime.
BXC SERIES INDUSTRIAL CROSS TROLLEYS TECHNICAL PARAMETER TABLE |
||||||
|
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Height(H) |
450 |
550 |
650 |
900 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
200 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
1 |
2.2 |
5 |
10 |
15 |
|
|
Battery Capacity |
180 |
180 |
330 |
440 |
600 |
|
|
Battery Voltage |
24 |
48 |
48 |
72 |
72 |
|
|
Running Time When Full Load |
4.32 |
4 |
3.3 |
3.2 |
2.9 |
|
|
Running Distance for One Charge(Km) |
6.5 |
4.8 |
4 |
3.8 |
3.2 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
Henan Perfect Handling Equipment Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,battery transfer trolley as one of the professional manufacturing company, which has a modernized management team and excellent staff. And our products gets CE, SGS,ISO certificate and other 8 national patent, and our products have been exported to more than 40 countries and regions.
1>. Our commitment: The load bearing safety factor of the trolley is no less than 120%.
2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
3>. 16 hours engineering service and 24 hours internet service for our customers
4>. During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
