Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Battery Powered Trackless Utility Vehicles | Capacity: | 1-300T |
|---|---|---|---|
| Table Size: | Customized | Height: | Customized |
| Running Speed: | 0-50/min(Adjustable) | After-sales Service Provided: | Engineers Available To Service Machinery |
| Warranty: | 12 Months | ||
| High Light: | Coils Motorized Transfer Trolley,Battery Motorized Transfer Trolley,300T Material Transfer Cart |
||
Our transfer trolley with lifting table is widely used in the processing line of punching, pouring, cold heading, extrusion, powder metallurgy parts pressing, pressure casting, and engineering plastics, rubber, ceramics and other products of the compression molding or injection molding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table etc.
details

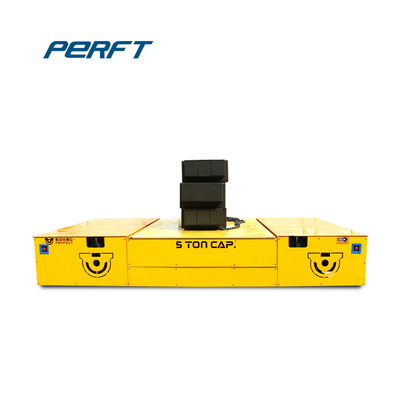

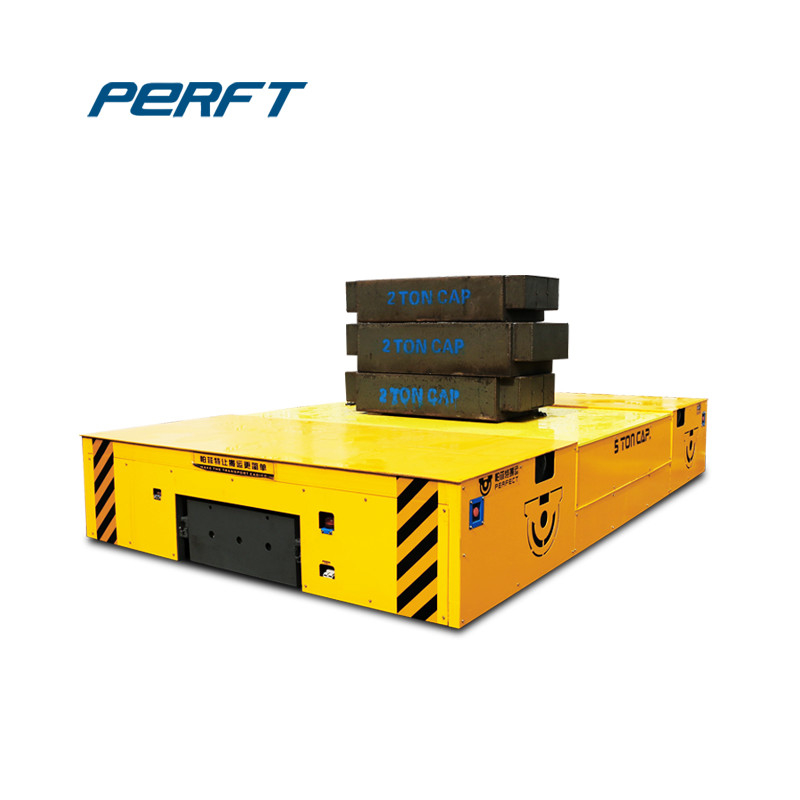

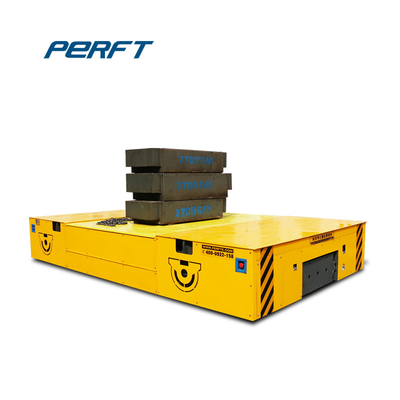

The trackless utility vehicles is powered by battery, electric cable and generator. The trackless utility vehicles can spin around 360 degrees. All the cars are equipped with warning alarm, safety inspection device and Dead-man control.The trackless utility vehicles can also be equipped with automatic intelligent charger and PLC control system, so that it can realize full-automatic control.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 | |
| Structure of Frame | Steel plates welded, beam | |||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 | |
| Carts weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 | |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | |||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 | |
| Height of the whole Carts (mm) | 450 | 600 | 650 | 700 | 700 | |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | |
| Turning type | Turning while driving with no stop | |||||
| Control method for turning | Control button | |||||
| Turning structure | Mechanical | |||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | |
| Wheel material | ZG55+hydropurture | |||||
| Running speed (m/min) | 0-15 | 0-12 | ||||
| Brake principle | Electric magnetic brake | |||||
| Ground balance | Mechanical automatic adjustment | |||||
| Operation method | With wire or no wire | |||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | |||||
| Charger's installation | Installed on Carts | Split-type | ||||
| Carts color | Yellow and warning sign | |||||
| Charger's function | Automatic stop for obstacles | |||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | |||||
| Warning equipment | Sound and light | |||||
| Other functions | Turning light, night light and power display | |||||
