Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Transfer Cart | Powered Source: | Storaged Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Load Capacity: | 1-200T (Customized) | Color: | Yellow, Customized |
| Working Time: | 4-5 Hours | Wheel Type: | Polyurethane Coated Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Charge Time: | 6-8 Hours |
| High Light: | Q235B Frame Die Transfer Cart,Electric Trackless Transfer Trailer,Cement Floor Die Transfer Cart |
||
Introduction

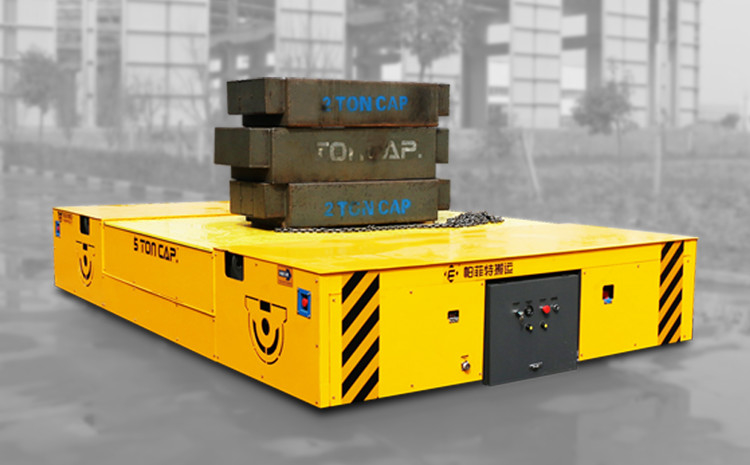

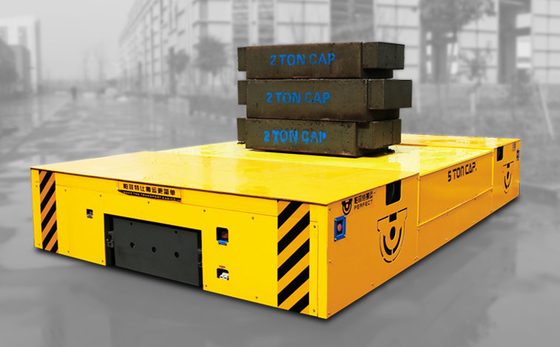

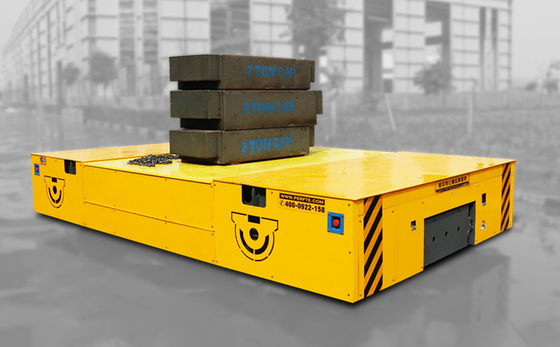

Compact in design, the die electric transfer trailer can handle upwards of 300ton and work well in areas with limited floor space. These motorized trackless transport cart is more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads, The transfer carts of material handling equipment running on cement can offer flexibility as they can be customized to suit specific needs. The material handling transfer carts can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result can be increased production and throughput.
Application places
We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want.
Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
Customization of Cement Ground Trolley
1. Outer Appearance
The Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure can be customized.
2. Special Using

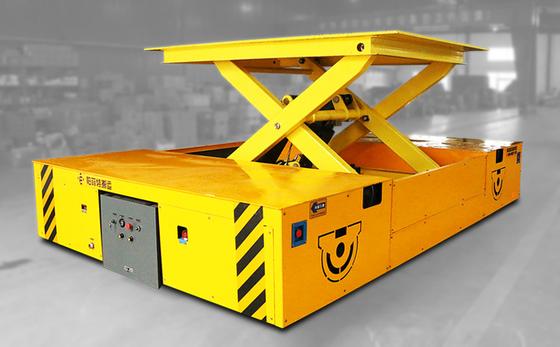

You can mount on Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system and many other devices according to your specific needs.
3. Safety Device
Safety must be in the first position. We can equipment Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails and some other devices.
4. Special Design
We also have Round corner, Hold pendant box, Lifting hole. We can meet all the contents above according your previous order.
