Product Details:
Payment & Shipping Terms:
|
| Application: | Heavy Cargo Die Handling In Plant & Outside | Load Capacity: | 35T/Customized |
|---|---|---|---|
| Power Mode: | Storage Battery | Control Mode: | Pendant/Remote/PLC Control |
| Material: | Q235 | Dimension: | 5000*2200*650/Customized |
| Runing Speed: | 0-25m/min | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Turning Structure: | Mechanical | Battery Type: | Free Of Maintenance |
| High Light: | Material Handling Transport Carriage 5t,Box Beam Transport Carriage,Q235 Lifting Material Transfer Cart |
||

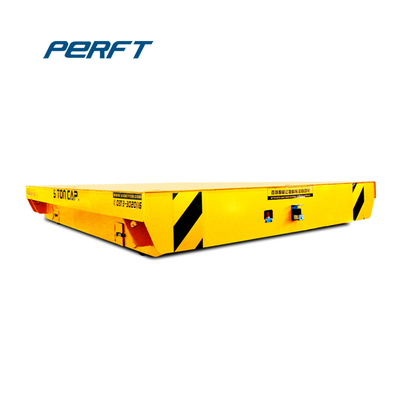

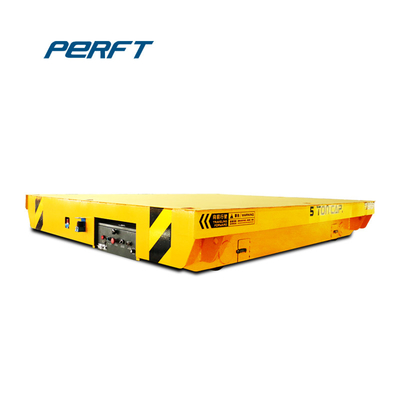

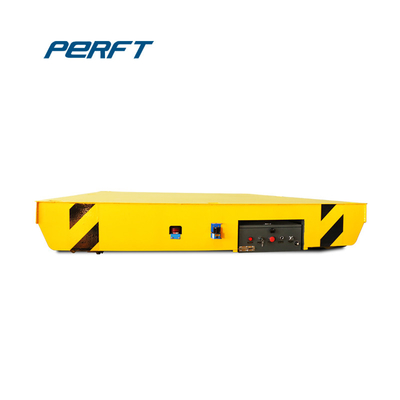

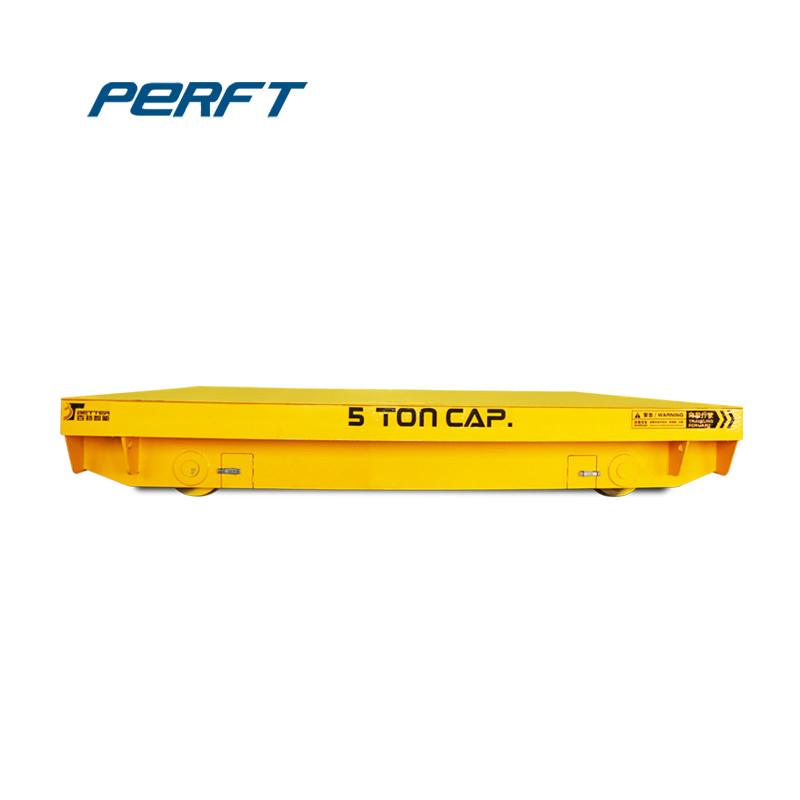

Box - Beam Material Heavy Material Handling 5t Transport Carriage with Lifting Platform
Product Over View
Our battery powered material transfer cart meet JB/T6127-92 machinery industrial standards. This series transfer cart is designed in compact structure and beautiful appearance. It has a plenty of advantages: accurate positioning, steady turn capacity and strong climbing capacity. Our battery powered material transfer cart is easy to operate with long driving range. More important, this type of material transfer cart has characters of low noise, easy maintenance and easy remote control for no cable.
Product Application
PERFECT is specialized in designing and manufacturing of heavy duty material transport equipment. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport solution, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. The coil transfer carts are used to transport steel coils and pipes, die, machine parts, paper products for manufacturing industry; The factory transport solution is mainly to offer heavy duty horizontal transportation for manufacturing;while the motorized battery operated transport vehicle specially apply to transport heavy loads from one warehouse to another. With the steel box girder structure and safety devices make the electric transfer vehicle with easily, precisely and safely move up to 200 tons.
Product Parameter
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
Advantages
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
Packing & Shipping
Large Capacity Transfer Cart Transportation: With large capacity and dimension, the transfer cart is delivery through flat rack.
Large Duty transfer car Transportation: With small table size, the transfer car can be delivery into 20’ container.
Small Dimension Rail Cart: With small dimension, the two or more rail carts can be put into a container.
Long Flat Bed Transfer Trolley Transportation:
With long flatbed and small width, the transfer trolley can be delivered through a 40’ container.
