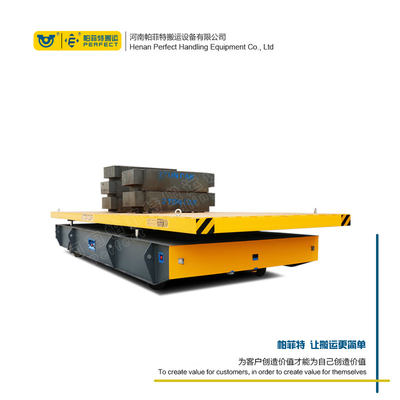

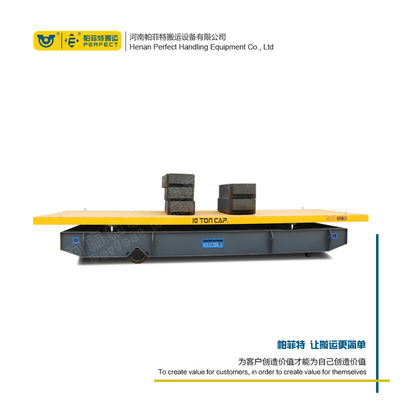

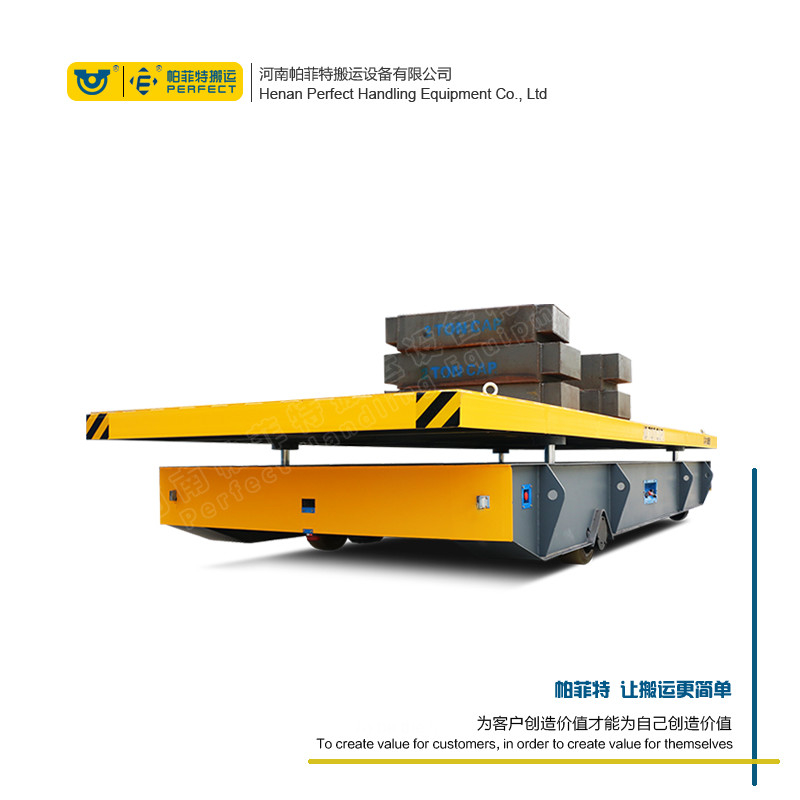

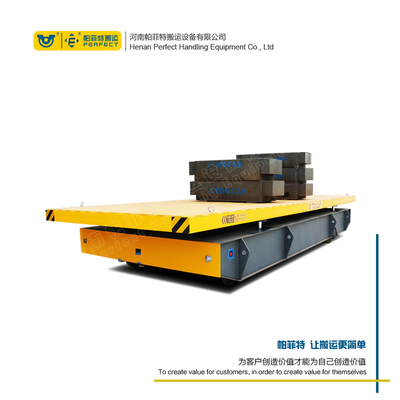

15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo

15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo
15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo 15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo 15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo 15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo

Large Image :  15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo

Product Details:
Place of Origin: China(Mainland)
Brand Name: 15t Cable Reel Powered Transfer Cart
Certification: CE ISO SGS
Model Number: 15t Cable Reel Powered Transfer Cart
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000~7800 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 set month
Detailed Product Description
Place Of Origin: Henan, China (Mainland) Product Name: 15t Cable Reel Powered Transfer Cart
Application: Industrial Filed Color: Customized
Capacity: Customized Running Speed: 0-20m/min
After-sales Service Provided: Engineers Available To Service Machinery

15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo



Description

BTL series electric transporter dolly permit the 380V alternating current get in the electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

Features of Ferry Transfer Cart

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Site map for customer useSite map for customer useail Trailer Rail Trail



Detailed Image


15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo 0



Components


15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo 1



Technical Parameters

Model BTL-2t BTL-20t BTL-50t BTL-100t BTL-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 25 30 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.5 5.6 7.8 14.1 26.2
Recommended Rail Model P15 P24 P43 QU100 QU100

Production Process of Ferry Transfer Cart

CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.



15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo 2
