Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Storage Battery | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Load Capacity: | 100 Ton/ Customized |
| Color: | Yellow/Customized | Working Time: | 6~7 Hours |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Parameter: | 6000*2300*700 | Warranty: | 12 Months |
| High Light: | battery transfer carriage,battery operated cart |
||

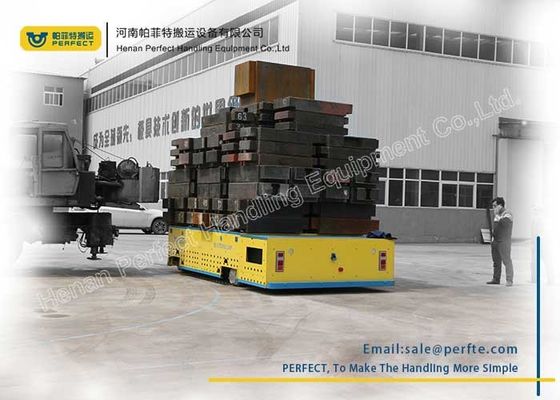

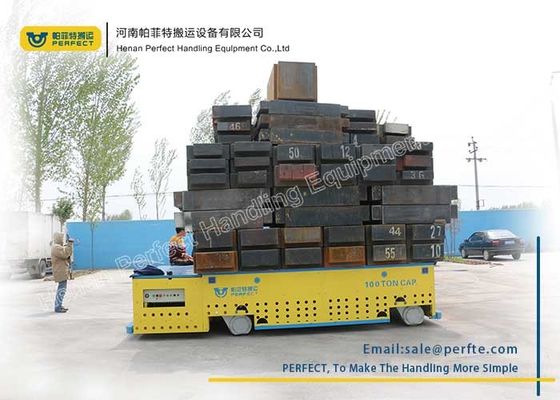

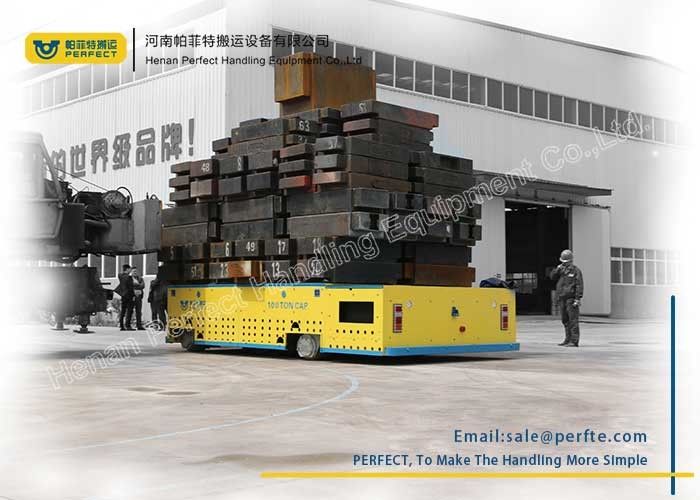

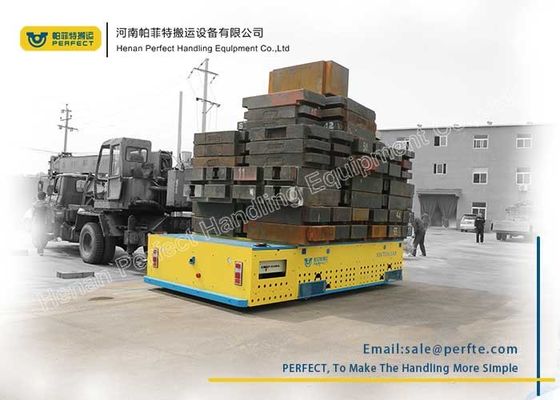

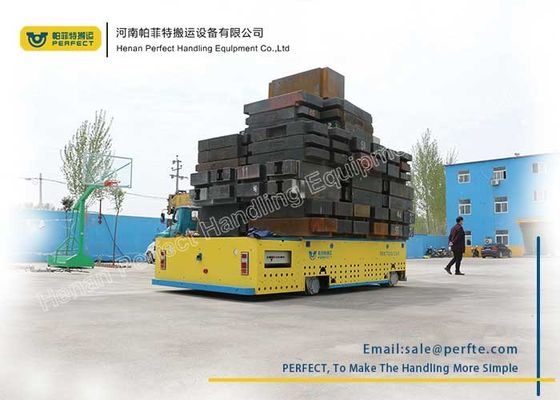

Battery Die Transfer Cart Ship Body Maintenance Electric Transfer Traverser
Introduction of Electric Transfer Traverser
The electric transfer traverser is one of the most popular production among our products, which is our patented products. We research and develop this kind product to make the handling simple--the electric transfer traverer, by contrast, has no need for steel rail installation and will not be restricted by the cable outside the electric traverser. All in all, it make the working process promote efficiency, and its operation is simple. It is so popular in many countries, Like Germany, Turkey, Malaysia, Indonesia, Malaysia, Pakistan, South Africa and so on.
Application of Industry Using Electric Transfer Traverser
The shipbuilding maintenance electric transfer traverser, all can be customized as per your requirement. What's more, this kind shipbuilding using electric transfer traverser can be used in many occasions, industry, warehouse, logistic, power, energy, petrochemical, contruction, mold, yard, bay to bay... it can transport anything you'd like, we can customized as per your demand, and it can be used in bad environment, high temperature, explosion...
Components of Industry Using Electric Transfer Traverser
About the battery, we choose maintenance free which is convenient, and long lifetime, we needn't remove. So in this series electric transfer traverser, it is popular among customers.
About the wheels, which material is PU, inside is cast steel while outside is encapsulation. By this design, its main function is damping. Our electric transfer traverser is also used it.
Characters of Industry Using Electric Transfer Traverser
Δ Increases production by saving material delivered time
Δ Decreases the use of cranes and tractor thereby greatly improving plant safety
Δ Avoids damage to material or product
Parameters of Industry Using Electric Transfer Traverser
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
Packing & Shipping
The shipbuilding using electric transfer traverser for sale body is packed with tarp, the motorized heavy transporter for sale wheel and parts will be packed with wooden case.
For length is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container (20 or 40 ft). If the electric transfer car for sale is beyond above dimension, It needs to be transported by BB container. Determine the size & material of the box according to the shape & number of products.
After Service
Our Strength
Henan Perfect Handling Equipment Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of handling equipments, as one of the professional manufacturing company, which has a modernized management team and excellent staff. And our products get CE, SGS, ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
