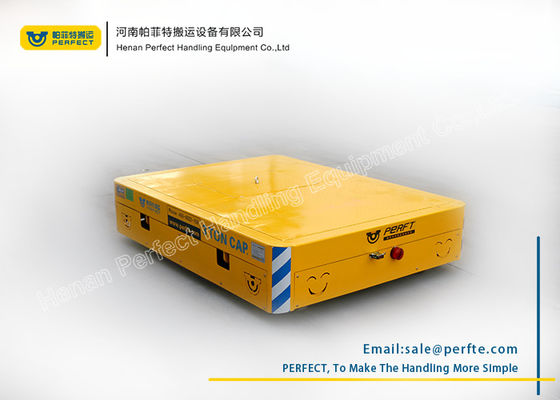

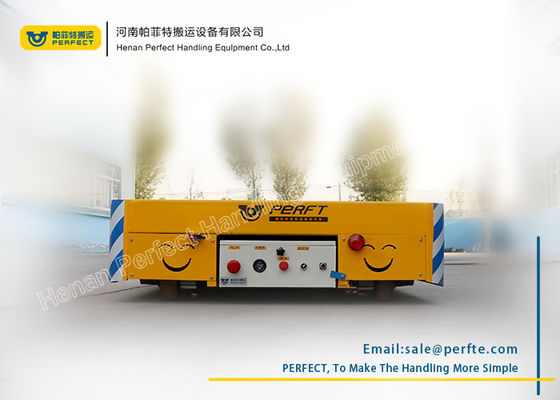

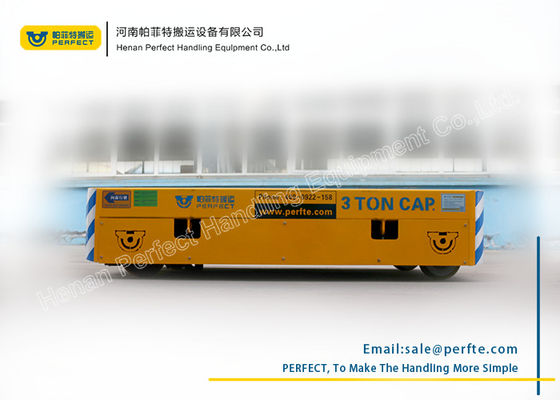

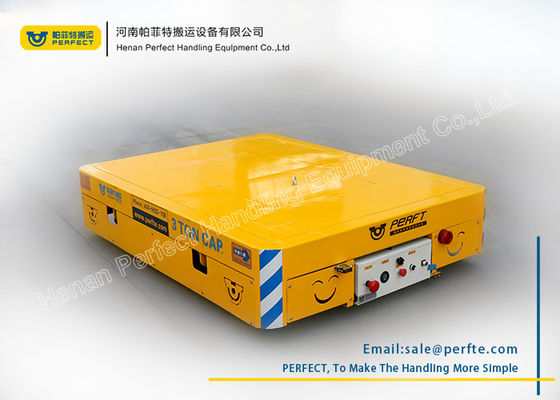

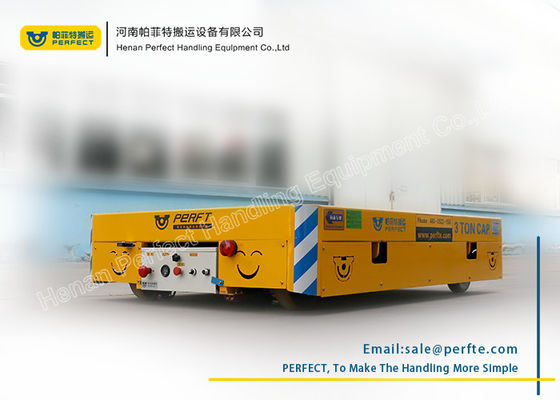

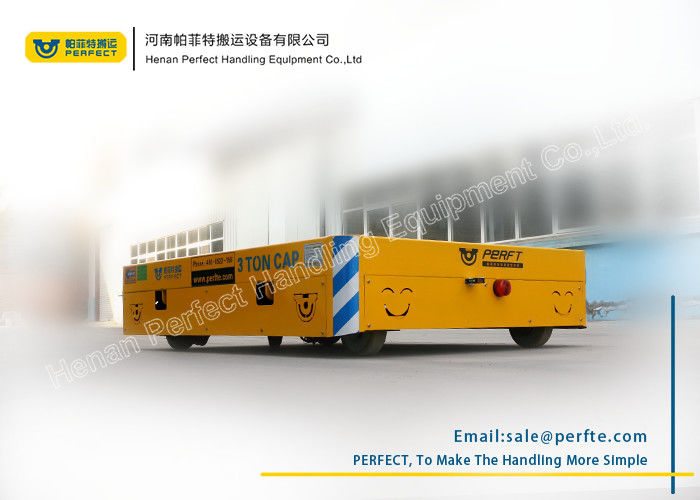

Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie

Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie
Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie

Large Image :  Motor Driven Interbay Vehicle For Warehouse / Factory Steerable Bogie

Product Details:

Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BWP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 75 Sets per month
Detailed Product Description
Powered Source: Storage Battery Operation Mode: Pandent And Remote Controller
Cart Frame: Q235B Rail Gauge: 1435mm (Customized)
Color: Yellow/Customized Wheel Type: Cast Steel Wheel+PU
Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Carrying Capacity: 1-300 Tons Accessory: Added As Required
High Light:

electric transfer cart

,

load transfer trolley

Motor Driven Interbay Vehicle Warehouse Factory Apply Steerable Bogie



Description of Interbay Vehicle



The motor driven interbay vehicle, also called transfer trolley, transfer cart and climbing transfer cart, is a new kind of electric material handling equipment. With advantages of flexibility and easy operate,it is widely applied to transfer heavy material or equipment in factory, shipyard, warehouse, steel plant, aluminum factory, plastic pipes factory, etc.

Advantages of Interbay Vehicle


· Safety and flexibility;
· high efficiency and stable start;
· Long lifetime and durable, at least 20 years of lifetime;
· Simple operation;
· using frequency;
· Environmental protection;

interbay vehicle

Application of Interbay Vehicle


1. These kind of motor driven interbay vehicles are applied to transfer heavy steel or aluminum coils. In order to avoid the steel coils falling down from the transfer cart, we designed a V-frame. It can protect the coils also the security. We can recommend you the direction of the V-frame according to the coils;
2. The motor driven interbay vehicle warehouse factory apply steerable bogie is mainly applied in assembly line(ring production line, loop production line); Due to advantage of without cable, the motor driven interbay vehicle is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc

3. Metallurgy industry (steel ladle); With the functions of steady traveling, step less speed regulation, the motor driven interbay vehicle is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the vehicle should be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance.

4. Warehouse transport;

5. Ship industry (maintenance, assemble, container transport);

6. Workpiece transport in workshop, lathe transport;

7. Steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure); Due to the large load capacity, the motor driven interbay vehicle is applied in ship industry to transfer workpieces, maintenance tools (propeller, motor etc.). The interbay vehicle is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.

8. Construction (bridge, simple building, concrete, concrete column);

9. Petroleum industry (oil pump, sucker rod and parts);

10. Energy (polycrystal line silicon, generator, windmill);

11. Chemical industry(electrolytic cell, retort etc),

12. Railway (rail maintenance, rail welding, train tractor).

interbay vehicle

Parameters of Interbay Vehicle



BWP SERIES INTERBAY VEHICLE TECHNICAL PARAMETERS

Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Impacted rated load(t) 7.5 30 45 60 75
Structure of Frame Steel plates welded, beam
thickness of the steel plate 8 14 14 16 16
Cart weight(t) 4.3 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table size (mm) 3000*2000 4500*2200 5000*2200 5500*2300 6000*2300
Height of the whole cart (mm) 450 600 650 700 700
Wheel base (mm) 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3900 4300 4800 5200
Turning radius (mm) 2501 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3.5 7 10 12 15
Wheel diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel material ZG55+hydropurture
Running speed (m/min) 0-15 0-12
Brake principle Electric magnetic brake
Ground balance mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Battery maintenance Free of maintenance
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display


Process Line of Interbay Vehicle


Steel Plate Cutting:

Use full-automatic cutting machine,it has small deviation

Wheel Processing:

We have a professional wheel processing plant, the quality and material can be adjusted

Box Girder Structure;

Box girder structure has advantages of not easy transfermation

Wheel Installation:

The steel whell is casted wheels, after the wheel is installed, it should be adjust to in level
interbay vehicle

Manufacture of  Interbay Vehicle


· Henan Perfect Handling Equipment Co., Ltd is the professional manufacturer of motor driven interbay vehicle, which with more than 15 years experience in designing and producing the motor driven interbay vehicle warehouse factory apply steerable bogie.
· There are 8 series and more than 80 kind of products for our motor driven interbay vehicles, and our products have been exported to more than 40 countries and regions, such as Germany, Singapore, South Africa, Mexico, USA, Middle East, etc.
· Our products have gets CE, SGS, ISO certificate and other 8 national patents.
· The power supply, table size,capacity of the motor driven interbay vehicle can be customized, we also can recommend client a suitable type according to their working site and requirements.

interbay vehicle

Why Choose Us?



· Our commitment: The load bearing safety factor of the car is no less than 120%.
· Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
· 16 hours engineering service and 24 hours internet service for our customers.
· During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
· Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

interbay vehicle
