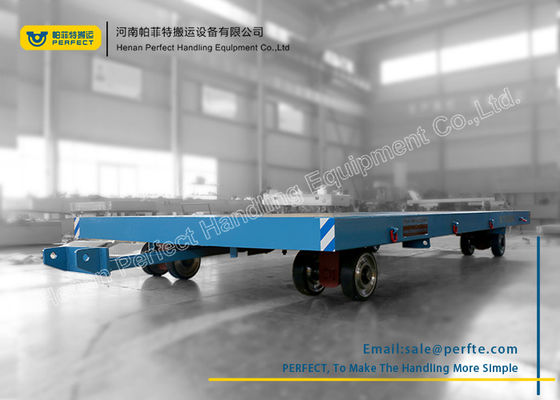

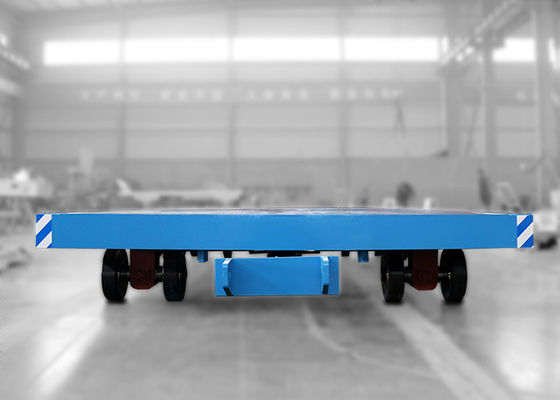

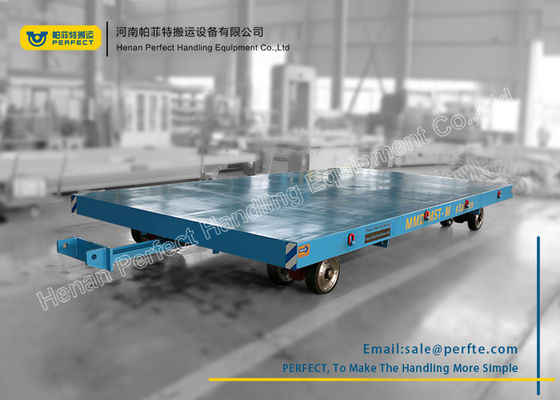

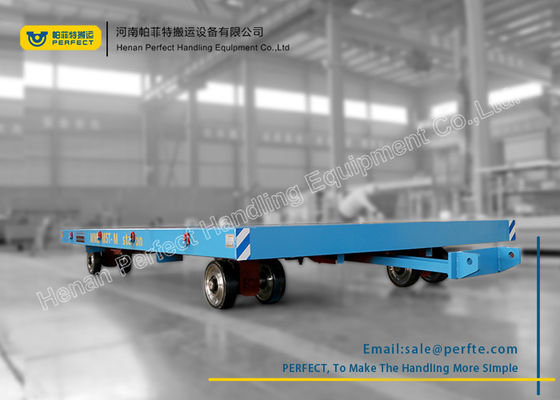

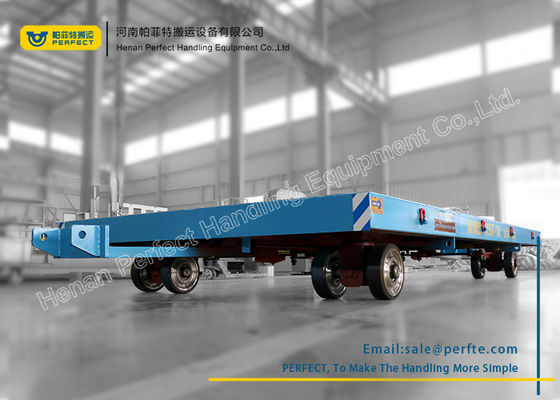

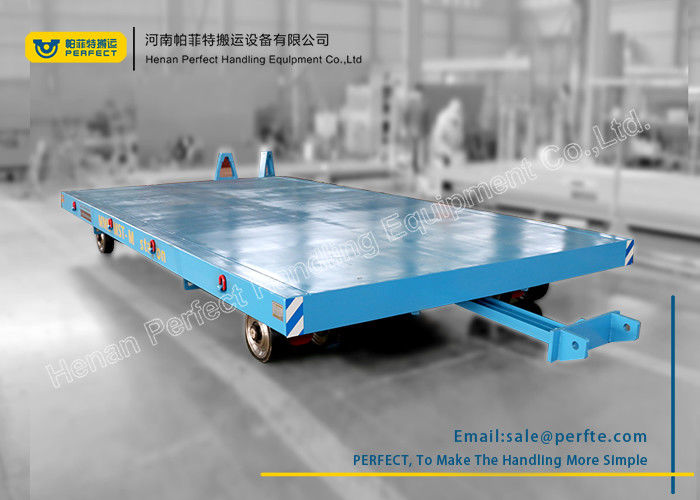

15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar

15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar
15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar 15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar 15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar 15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar 15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar 15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar

Large Image :  15T Transport Steerable Heavy Duty Plant Trailer with Draw Bar

Product Details:

Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BWT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets Per Month
Detailed Product Description
Application: Steel Industry, Factory, Warehouse, Port Load Capacity: 15T (Customized)
Tow Mode: Draw Bar Guard Rails: Optional
Cart Frame: Q235B Control Mode: Towing
Running Distance: Ulimited Working Time: Ulimited
Wheel Type: Polyurethane Solid Wheels/Solid Tire Wheels Color: Customized
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling Power Mode: Unpowered
High Light:

eavy duty equipment trailers

,

heavy load cart

PERFECT Transport Solution China Made Steerable Trailer with Draw Bar



General Introduction for Steerable Trailer



PERFECT transport solution china made steerable trailer with draw bar can be pushed by manpower or towed by other vehicles,such as winch, forklift or tractor. If one trailer is powered by forklift, then a drawbar is needed. There are two kinds of drawbar type, one is fixed length drawbar, the other is adjustable drawbar. The length can be customized as per customer’s demand. The turning radius is designed as per trailer dimension.

steerable trailer



Features of Steerable Trailer

  • Simple structure and competitive price;

  • The using time of the steerable trailer is not limited;

  • Welded construction of structural steel;

  • Coupling connection for towing;

  • Requiring no power supply or track, this product has higher cost effectiveness.

steerable trailer



Main Advantages of Steerable Trailer





  1. The load capacity and size of the steerable trailer could be customized according to clients’ requirement.

  2. The frame of the steerable trailer is made of steel beam, so the load ability of the trailer is strong and it is not easy to bend over and avoid the deformation, which extends the service time.

  3. The table of the steerable trailer could install special device for transporting round steel, round lod, etc.

  4. The wheels of the steerable trailer are special manufactured by cast steel and rubber. The rubber will reduce the impact force to the ground from the trolley, and protect the damage to the wheel.

  5. The wheels of the steerable trailer has been sealing treated to protect them from water, oil and dust.

steerable trailer

Applications of Steerable Trailer



Our PERFECT transport solution china made steerable trailer with draw bar is suitable for a lot of areas, such chemical industry, household appliances, ceramics, metal, machinery, logistics and other industries. And it is widely used for short distance transport of paper making, paint, metallurgy, mound machinery and other industries.

steerable transfer trailer

Technical Parameters of Steerable Trailer



Model

BWT-2T

BWT-5T

BWT-10T

BWT-15T

BWT-20T

BWT-30T

BWT-45T

BWT-60T

Rated Load(T)

2

5

10

15

20

30

45

60

Table Size(mm)

2000*1500

2500*1500

3000*2000

3200*2000

4000*2000

5000*2200

6000*2400

6000*2500

Height of Trailer (mm)

500

600

700

750

750

800

850

950

Wheel Quantity

4

4

8

8

8

12

12

12

Tire Specification

254*102

305*165

559*254



559*356

22*9-10



22*9-10



22*10-16



22*14-16



Tire Material

Polyurethane Solid Wheel, Press-on Solid Tire



Frame Material

Q235

Q235

Q235

Q235

Q235

Q345

Q345

Q345

Color

Customized

Speed(km/h)

0-20

0-20

0-20

0-20

0-15

0-15

0-15

0-10

















Packaging & Shipping

  • The steerable trailer body is packed with tarp, the steerable trailer wheel and parts will be packed with wooden case.

  • For length is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the steerable trailer is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.

  • Price Term: EXW, FOB, CIF, C&F,DDU, DDP.

industrial trailer

Who We Are?



Henan Perfect Handling Equipment Co., Ltd is one of the qualified manufacturers of various transfer carts, like battery powered transfer cart, steerable transfer car, industrial trailers, etc. Integrated production, scientific research & development and professional sales teams, all those advantages could provide full service of a wide range of transfer cars and their parts. With high standard machinery and automatic equipment, powerful R&D team and elite sales team, so welcome to contact us for electric transfer carts and industrial trailers.

trailer

FAQ for Steerable Trailer



1. Can I have samples of this type of steerable trailer to test the quality?



Yes, you can buy any samples to test the quality,our MOQ is 1 set.



2. What's the delivery time and can you lower the price?



It depends on your order. The delivery time is about 30 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.



3. Can I customize the painting and the trailer design?



Yes, we offer customized design and logo for reasonable type.



4. What's the payment method?



TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.



5.How do you ensure its quality?



We are direct factory and we have professional quality inspector.We will not let any imperfections departure from our factory.



6.Can you provide the certificate we need?



Yes,We can provide the certificate you need,such as FORM E, Certificate of origin,CNCA, SONCAP, ASME, DOT, ECE as so on.
