Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Trackless Transfer Flat Car For Industrial Transfer With Remote And Hand | Material: | Q235+ZG55 |
|---|---|---|---|
| Running Speed(m/min): | 20 | Table Size: | Customized |
| Motor Power(Kw): | 3.5-15 | Color: | Customized |
| Rated Load: | 5-50 | ||
| High Light: | electric transfer cart,load transfer trolley |
||
Electric Trackless Transfer Flat Car For Industrial Transfer with Remote and Hand
The BWP series Electric Trackless Transfer Car usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Electric Trackless Transfer Flat Car is supplied to pulling motor through electric control system,which makes the Transfer Car start,stop,move background,turn around and realize other functions.Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if it’s necessary.

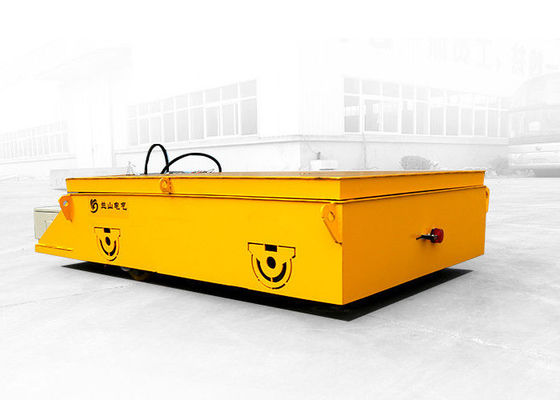

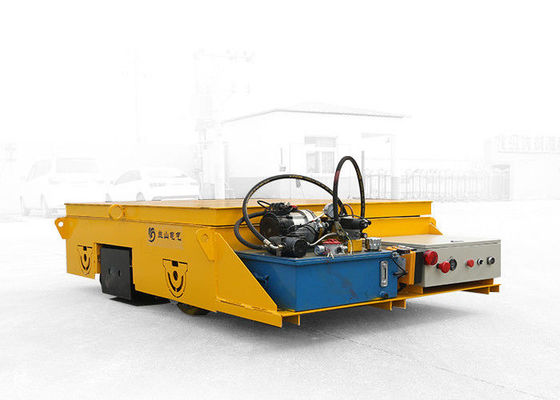

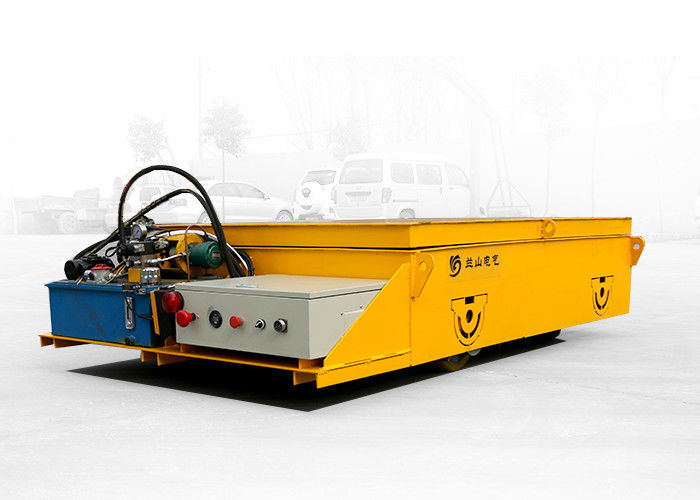

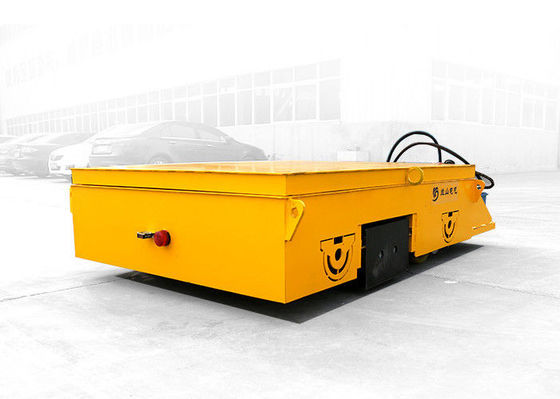

Detailed Image of Electric Trackless Transfer Flat Car For Industrial Transfer with Remote and Hand
The Transfer Cart consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Electric Trackless Transfer Flat Car.
Technical parameter table of Electric Trackless Transfer Flat Car For Industrial Transfer with Remote and Hand
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Application of Electric Trackless Transfer Flat Car For Industrial Transfer with Remote and Hand
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The Electric Trackless Transfer Flat Car has been highly approved by our customers.
Customer visit
About Us
We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, SASO, SGS certificate. Meanwhile, we also got 8 national patents which are S type rail turning cart utility model patent, S type rail turning cart appearance patent, rail electric forklift utility patent, Electric Railway Car utility patent, steerable Railway Car utility patent, lifting Electric Cart utility patent, scissor hydraulic lifting Transfer Cart patent, whole ring Railway Cart’s wheel and Electric Flat Car patent.
Packaging & Shipping of the Electric Trackless Transfer Flat Car For Industrial Transfer with Remote and Hand
The Heavy Load Industrial Handling body is packed with tarp, the cart wheel and parts will be packed with wooden case.
The Customized Electric Trackless Transfer Flat Car For Industrial Transfer with Remote and Hand lenght is less than 5.9m, the width is less than 2.2m. Industrial Large Motorized Transport Carts will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the cart is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
