Heavy load equipment sliding wire powered electric cargo transfer vehicle on track

Heavy load equipment sliding wire powered electric cargo transfer vehicle on track
Heavy load equipment sliding wire powered electric cargo transfer vehicle on track Heavy load equipment sliding wire powered electric cargo transfer vehicle on track Heavy load equipment sliding wire powered electric cargo transfer vehicle on track Heavy load equipment sliding wire powered electric cargo transfer vehicle on track Heavy load equipment sliding wire powered electric cargo transfer vehicle on track

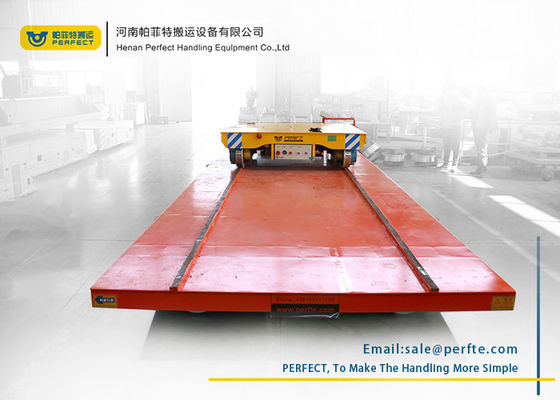

Large Image :  Heavy load equipment sliding wire powered electric cargo transfer vehicle on track

Product Details:
Place of Origin: China（Mainland）
Brand Name: Heavy load equipment sliding wire powered electric cargo transfer vehicle on track
Certification: CE ISO SGS
Model Number: Heavy load equipment sliding wire powered electric cargo
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~7600 SET
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 sets month
Contact Now
Detailed Product Description
Place Of Origin: Henan, China (Mainland) Product Name: Busbar Powered C On Track
Application: Industry Color: Customized
Warranty: 12 Months Power Supply: Busbar Power
After-sales Service Provided: Engineers Available To Service Machinery Advantage: Low Cost With Professional Manufacturing
Certification: CE ISO SGS
High Light:

electric transfer cart

,

load transfer trolley

Heavy load equipment sliding wire powered electric cargo transfer vehicle on track
The kind of sliding wire powered electric cargo transfer vehicle is so popular and widely used in various occassions.electric vehicle is suitable to be used in the bad environment,suach as high-temperature and so on. with the simple structure and low cost, it not so strict requirement on the construction of the rails,it is the first choice for the assembely lines of the workshops. About that, our company have professionsal team,and specialized study ways, and it is about 15 historys that we insist on the item. up to now, we can provided the largest roated load---300T.
61c5

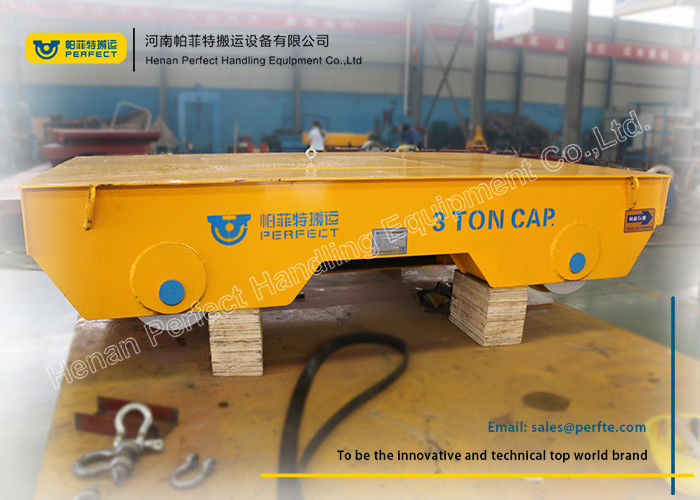

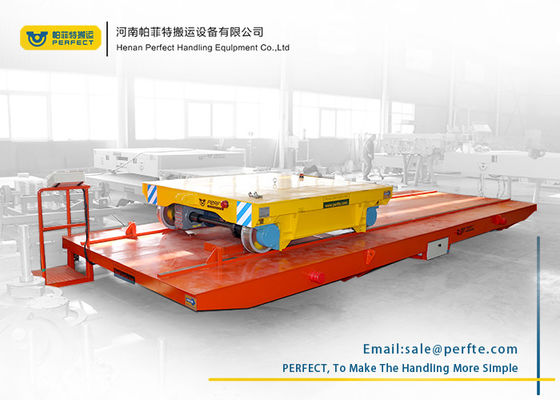

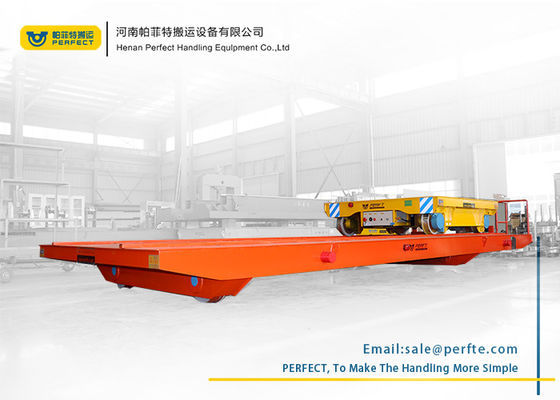

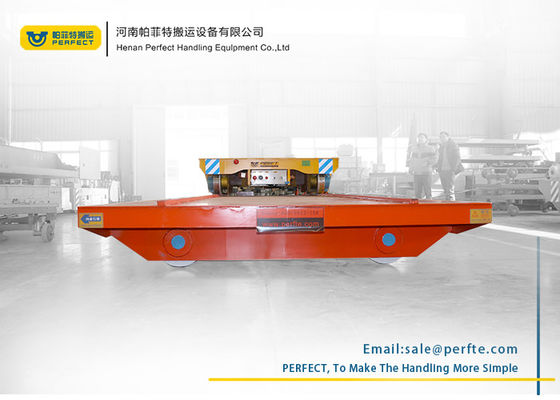

Detailed Image Of electric cargo transfer vehicle

AGV Customized Electric Remote Control Transfer Car

Processing Line Of electric cargo transfer vehicle

AGV Customized Electric Remote Control Transfer Car



Technical Parameters Of electric cargo transfer vehicle
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Why choose us?

AGV Customized Electric Remote Control Transfer Car

Components Of electric cargo transfer vehicle

AGV Customized Electric Remote Control Transfer Car

Functions & Advantages Of electric cargo transfer vehicle

AGV Customized Electric Remote Control Transfer Car

  • electric cargo transfer vehicle is Anti-high temperature
  • Electric Transfer Car is powered by battery, traveling cable, rail, generator or other way
  • With lifting holes, Electric Transfer Car is convenient to shipment
  • The Electric Transfer Car has a feature of stable start, big starting power, long lifetime
  • The Electric Transfer Car can run on the L-form track or S-form track or curved track
  • Running distance of Electric Transfer Car is unlimited
  • Safe and convenient operation is available for Electric Transfer Car
  • High using frequency for Electric Transfer Car
  • Electric Transfer Car is suitable for bad environment and explosion environment
  • The Electric Transfer Car is convenient for operation and maintaince
Application Sites Of electric cargo transfer vehicle

AGV Customized Electric Remote Control Transfer Car



Packaging & Shipping



AGV Customized Electric Remote Control Transfer Car

Certifications



AGV Customized Electric Remote Control Transfer Car



Our Services



  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
  •
