| Table Size: | Customized As Practical Needs | Height: | Customized |
|---|---|---|---|
| Running Speed: | 0-20/min(Adjustable) | Capacity: | 1-300ton |
| Application: | Industrial Filed | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | electric transfer cart,load transfer trolley |
||

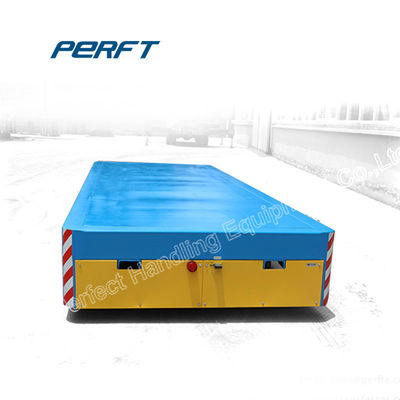

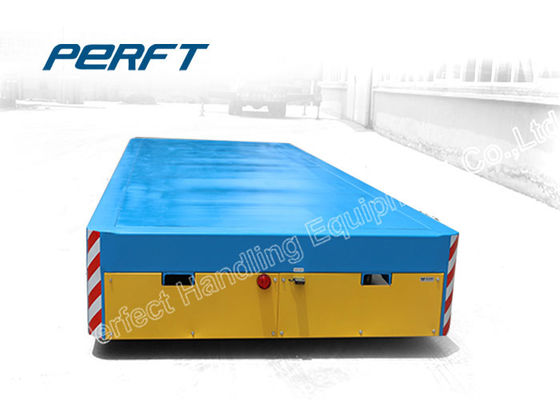

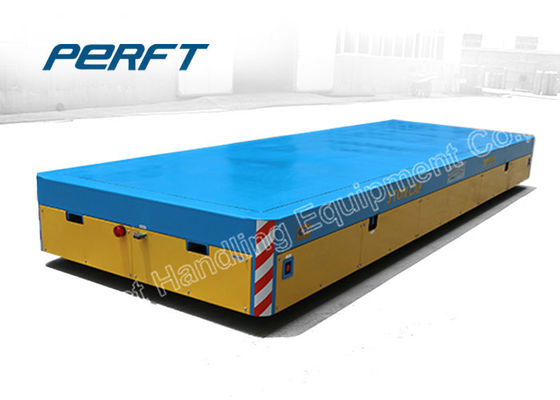

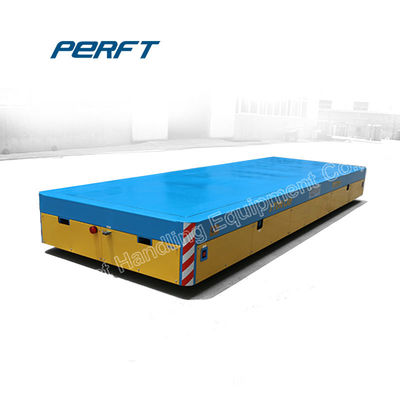

high quality trackless transfer cart for material handling
The trackless transfer cart is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This Trackless Car has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
