CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load

CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load

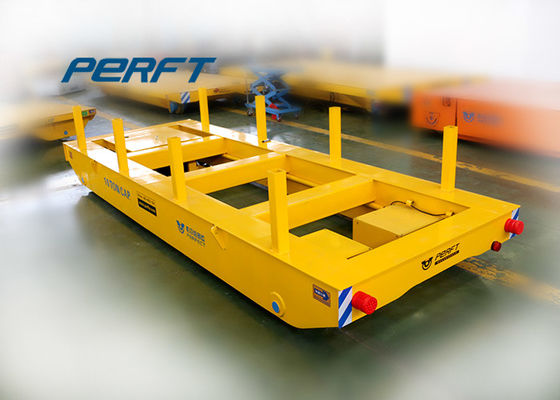

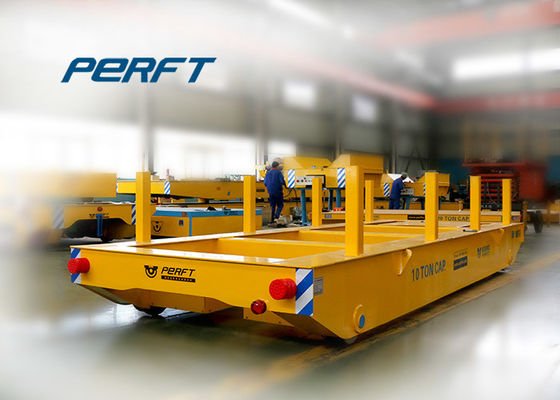

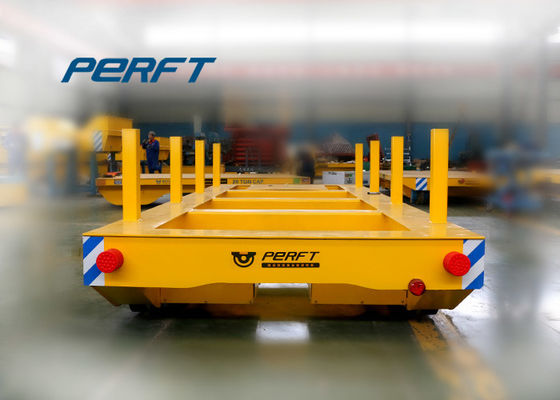

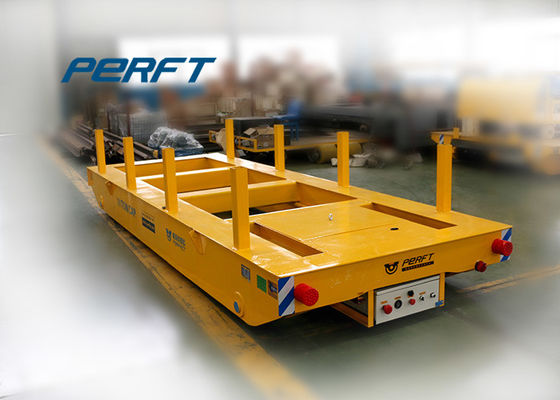

CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load

Large Image :  CE Certified Ladle Transfer Car 2.9 - 4.32 Running Time When Full Load

Product Details:
Place of Origin: Henan China
Brand Name: ladle transfer cart on rails
Certification: CE ISO SGS
Model Number: ladle transfer cart on rails
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Usd2800-5000/set
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 30sets/week
Detailed Product Description
Type: Ladle Transfer Cart On Rails Product Name: Ladle Industrial Transfer Cart To Transfer Molten Steel And Can Be Equipped Hydraulic Lifting Equipment
Wheel Diameter(mm): 270-600 Rail Inner Gauge(mm): 1200-2000
Running Speed(min): 0-25 Motor Power(kw): 1-15
Running Time When Full Load: 2.9-4.32
High Light:

heat resistant ladle transfer car

,

ce ladle transfer car

,

anti explosion ladle transfer trolley



ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment



This kind of ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the “Sand arc-shaped railways.The supply power of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment can be choose,such as:rail,cable drum...

ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment



Advantage and functions of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment

1. Fixed support ensures the stability of ladle transfer cart.

2. The Fixed support of the ladle transfer cart is customized according to your requirements if need.

3. The supply power of the ladle transfer cart can be choose,such as rail motorized,battery powered,cable drum...

4. The ladle transfer cart  has an explosion-proof device.

5. The platform of the ladle transfer cart is insulated material.

6. The ladle transfer cart can customized the lifting equipment,hydraulic lifting...

7. The capacity and table size of the ladle transfer cart can be customized according to you requied.



Technical Table of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment

Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Battery Voltage(v) 24 48 48 72 72
Battery Capacity(Ah) 180 180 330 440 600



The scheme of the ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment

 ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment

 ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment

 ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment



Application and Usage of ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment

 ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment



 ladle industrial transfer cart to transfer molten steel and can be equipped hydraulic lifting equipment
