Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cable Drum Supply Model Rail Transfer Cart For Heavy Load Material Handling | Capacity: | 1-100t |
|---|---|---|---|
| Power Supply: | Cable Drum | Running Speed: | 0-25m/min |
| Color: | Standard | Item: | Transfer Cart |
| High Light: | electric transfer cart,load transfer trolley |
||

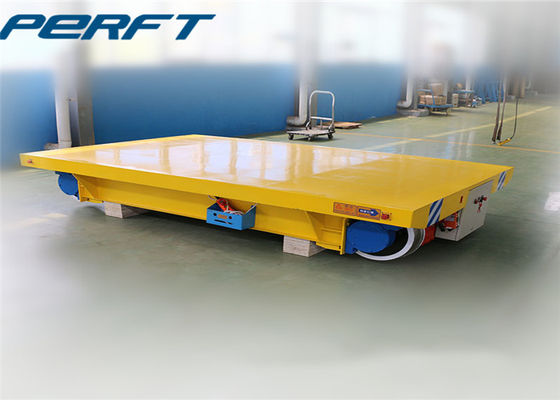

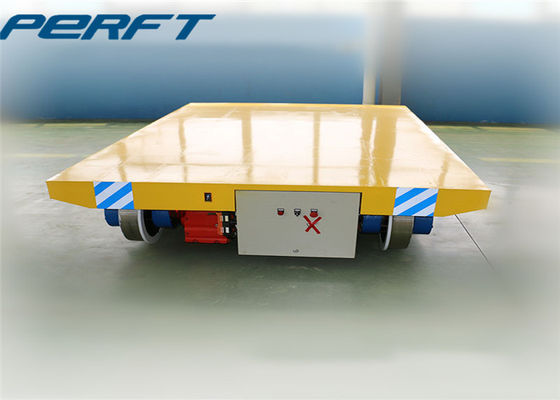

Flat Cable Drum Industrial Trolley Cart For Heavy Load Material Handling
1. The rail ferry transfer cart is a model derived from the rail flat car. The rail ferry transfer cart is a kind of heavy-duty tool car that runs on the rail. It is a workshop transport vehicle that is driven by electric power, handle or remote control. Because of its heavy load, the car can be customized, so it is in many industries. Widely used.
The rail ferry transfer cart, also known as the sub-mother car, is composed of two vehicles. The bottom car runs in one direction on the track. The track on the bottom car platform is arranged to facilitate the operation of the upper car. The direction of the upper car is generally intersected with the bottom car. of.
Technical parameters of BJT-2T (Customizable)
|
Model
|
KPJ-2T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-63T | KPJ-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size(mm) | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 500 | 550 | 600 | 650 | 700 | 800 | 1200 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 15 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |

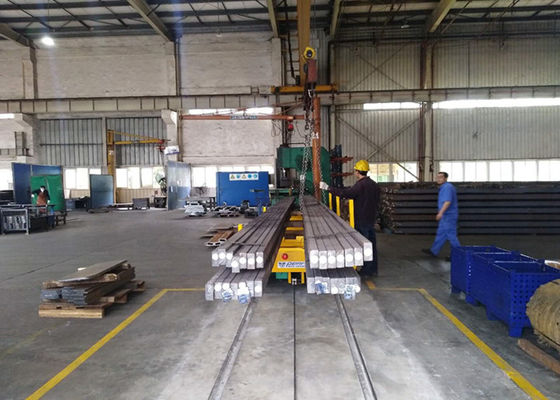

The material handling rail ferry transfer cart can be superimposed. The car has the characteristics of strong driving and pushing. The big car runs on the ground or the trench, and the track is installed on the big car platform. The whole vehicle running route is arranged in front and rear, the big car After the horizontal rapid movement, it can accurately stop, locate and connect the rails. When the heavy vehicle is running again, it can be converted to slow speed, and the inverter can be converted quickly when the vehicle returns.
The rail type transfer car can be used in not short distance transportation, it has no limited using frequency.
Its application range includes: port transport,car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering, etc.

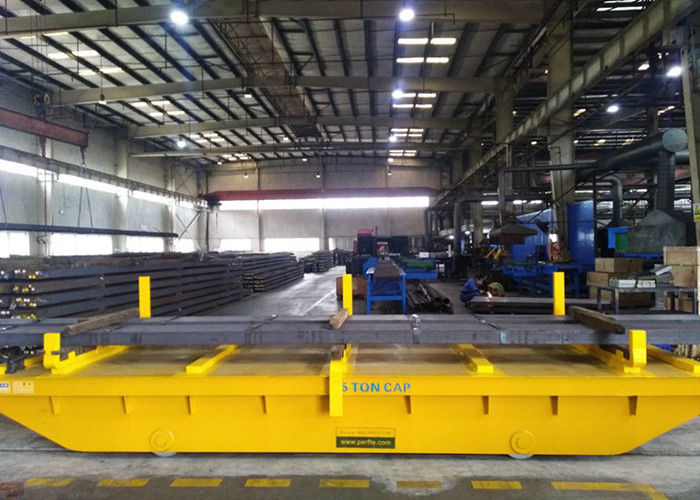

For material transport: coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, building materials , scrap, pallet...
All can be customized as per customers’ requirement.And our business is meeting your business need, hope our professional team can help you well with rich experience.
Henan Perfect Handling Equipment Co., Ltd has been devoting to development Manufacture & Sale Of Material Handling System for more than 15 years. We Invest a large amount of money each year for product innovation. Therefore, our products are in a leading position in the industry.
