Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer

China Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer supplier
Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer supplier Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer supplier Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer supplier Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer supplier

Large Image :  Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer

Product Details:

Place of Origin: Henan China
Brand Name: Perfte
Certification: CE ISO SGS
Model Number: Material Handling Turntable

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD3500-5500/set
Packaging Details: Trap wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 40sets/week
Contact Now
Detailed Product Description
Product Name: 10t Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer Orignal: Henan China
Supply Capability: 45 Sets/week Motor Power: 5.5 Kw
Material: Q235 Wheel Base(mm): 1500-3000



10t Material Handling Turntable 90 degree with turntable to rotate a trailer





  • The working principle is that: the guide rail is also mounted on the turntable, When the rail transport vehicle is running on the turntable, the turntable can be rotated automatically or manually until it is accurately attached to the target rail and then the transport vehicle is running on the vertical rail.
  • Heavy Load Industrial Electric Motor Turntable Rail Transfer Car is suitable for a variety of applications, such as round rails, vertical rails, cross rails, and more.
  •

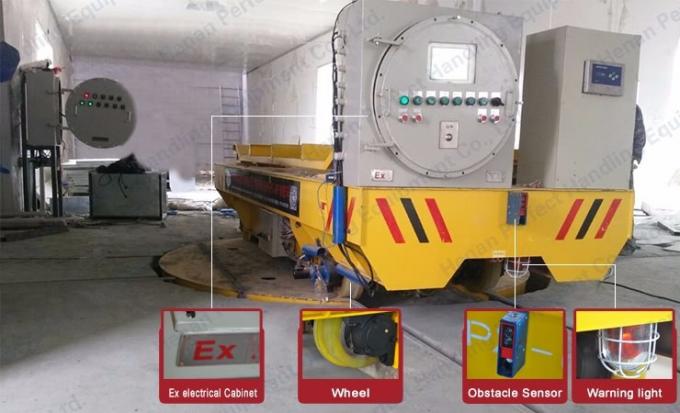

Main Components
Rail trailer with turntable Rail material handling trailer with turntable



Advantage

1.Stable rotation, accurate positioning.
2.Positioning safety requirements are high, there are mechanical and electrical two control methods for braking.
3.Adopts electric drive mode and frequency control;
4.Convenient and flexible
5.Control panel with wire or romote control.

6.turntable flat car is to rotate the gear by the motor to achieve the rotation of the turntable.

7.When the flat car is completely running on the turntable, the turntable starts to rotate to the desired angle and the connect with the ground rails completely, then the Material Handling Turntable can starts again and runs along the rails.



Technical parameters

Model
BDG-2T BDG-10T BDG-20T BDG-30T BDG-50T BDG-63T BDG-150T
Rated load (T) 2 10 20 30 50 63 150
Table size(mm) length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 500 550 600 650 700 800 1200
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 0.8 1.5 2.5 4 5.5 7.5 15
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

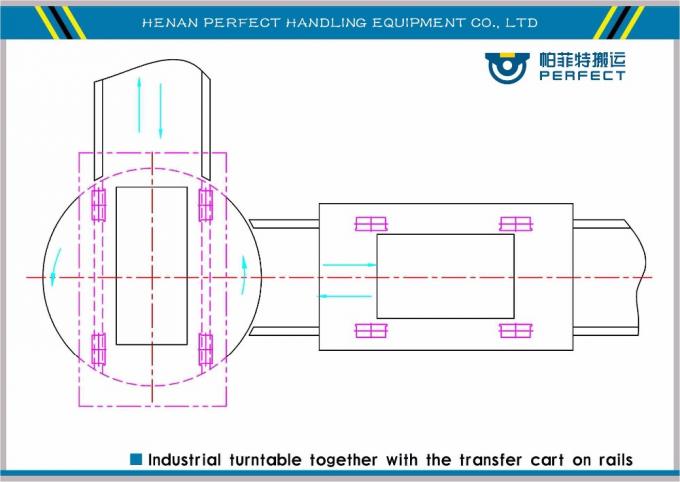

The scheme

360 Degree Rotating Rail Material Handling Turntable/90 degree with turntable to rotate a trailer

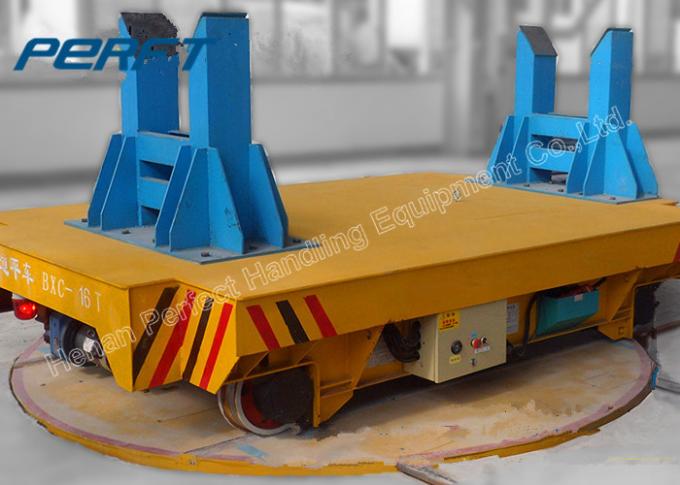

Application

360 Degree Rotating Rail Material Handling Turntable/90 degree with turntable to rotate a trailer

Rail trailer with turntable Rail material handling trailer with turntable
