20 Ton 25 Ton 30 Ton Industrial Transfer Trolley , Anti Explosion Transfer Wagon

China 20 Ton 25 Ton 30 Ton Industrial Transfer Trolley , Anti Explosion Transfer Wagon supplier
20 Ton 25 Ton 30 Ton Industrial Transfer Trolley , Anti Explosion Transfer Wagon supplier 20 Ton 25 Ton 30 Ton Industrial Transfer Trolley , Anti Explosion Transfer Wagon supplier 20 Ton 25 Ton 30 Ton Industrial Transfer Trolley , Anti Explosion Transfer Wagon supplier 20 Ton 25 Ton 30 Ton Industrial Transfer Trolley , Anti Explosion Transfer Wagon supplier

Large Image :  20 Ton 25 Ton 30 Ton Industrial Transfer Trolley , Anti Explosion Transfer Wagon

Product Details:

Place of Origin: Henan, China(mainland)
Brand Name: Perfte
Certification: CE, ISO, SGS
Model Number: Transfer Cart

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $5500-$7500
Packaging Details: Packed with a tarp,with wooden case.
Delivery Time: 5-9 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 56 set per months
Contact Now
Detailed Product Description
Product Name: 20ton 25ton 30ton Anti-explosion Electric Trackless Flat Transfer Carts Type: Transfer Flat Cart
Warranty: 12 Months Running Speed: 0-30 M/min
Orignal: Henan, China After-sales Service: Yes

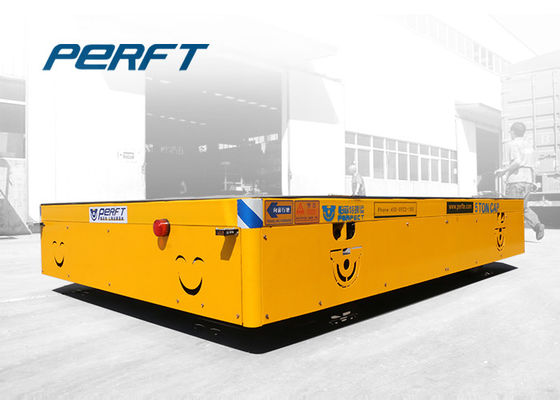

20ton 25ton 30ton anti-explosion electric trackless flat transfer carts





20ton 25ton 30ton anti-explosion electric trackless flat transfer carts is designed for transporting heavy cargo or equipment from one workshop to another in many different factories and industries. The running distance of electric trackless transfer car is unlimited; electric trackless transfer car does not need rail when working; electric trackless transfer car can achieve turn and be used in anti-explosion, high temperature and ferry occasion.

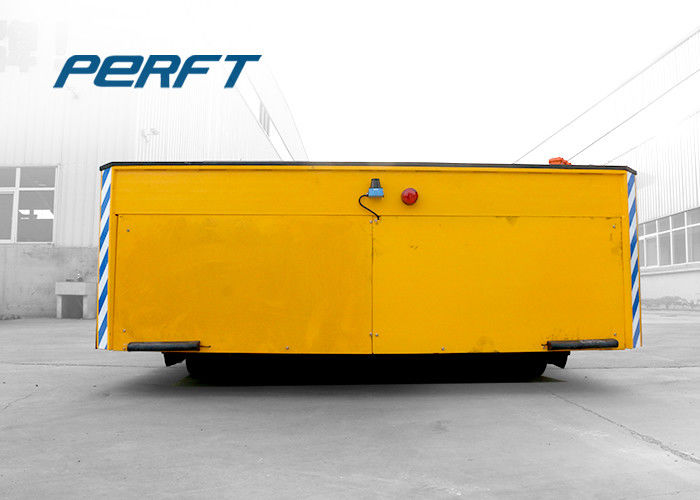

20ton 25ton 30ton anti-explosion electric trackless flat transfer carts



Advantages

  • Cost is not high,easy to operate and maintenance;
  • The cargo transfer car can be customized as per your true demand;
  • AC motor has the following advantages:simple structure, unlimited using time;
  • The cargo transfer car can run on the straight railways to carry many material,workpiece,workpiece;
  • This kind of cargo transfer car is powered by cable drum, so no strict requirement for railway laying;
  • The cargo transfer car can be applied in many occasions, such as easy explosion, easy corrasion, high temperature.



Parameters

Rated Load 5 10 15 20 30 40 50
Ground Clearance(mm) 50 50 50 50 50 50 50
Wheel Base(mm) 1500 1500 1500 1700 1700 1800 1800
Turnning Radius(mm) 2501 3101 3401 3901 4301 4801 5201
Axles Distance(mm) 2500 3100 3400 3900 4300 4800 5200
Motor Power(Kw) 3.5 5 6 7 10 12 15
Running Speed(m/min) 0-15 0-15 0-15 0-15 0-15 0-12 0-12
Cart Weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Impacted Rated Load(t) 7.5 15 22.5 30 45 60 75



Application

Electric trackless transfer car can be used in many different occasions, such as steel industry, iron industry, assembly line workshop, heavy industry, light industry, chemical, mine plant, shipyard, project, spaceflight, coal, nuclear energy, hydraulic engineering, transformer plant, working line, etc.

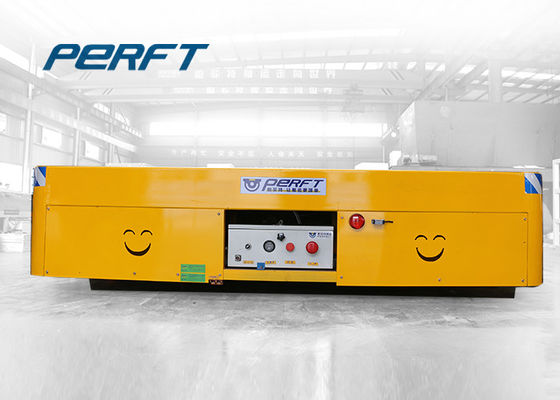

20ton 25ton 30ton anti-explosion electric trackless flat transfer carts



Hot Products

Product Model Power Supply Running path and capacity Advantage Usage
BDG Conductor Rail Running on rail, capacity can customized as demand. High working frequency Suitable for various industries,such as Metallurgy, Machinery Fabrication, Heavy Industrial, Light Industrial, Mould Manufacturer, Construction Machinery producer, Shipyard, Port Cargo Yard, Steel mill, Mining plant, etc, to transfer and handling equipment or material, cargo, workpiece, and so on.
BXC Battery No high demands for Rail installation
BJT Cable Drum Using frequency
BHX Busbar
BP Tractor/forklift/other engine Running distance
BWT Tractor Running on Cement floor, ground directly, capacity can customized as demand.
BWP Battery
