Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | Customized | Operation Mode: | Pandent And Remote Controller Or PLC |
|---|---|---|---|
| Application: | Factory, Warehouse, Port, Construction, Steel Structure | Rail Gauge: | Customized |
| Color: | Customized | Working Time: | All Day |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| High Light: | rubber wheels flatbed rail transfer cart,4 wheels flatbed rail transfer cart,PLC rail transfer cart |
||

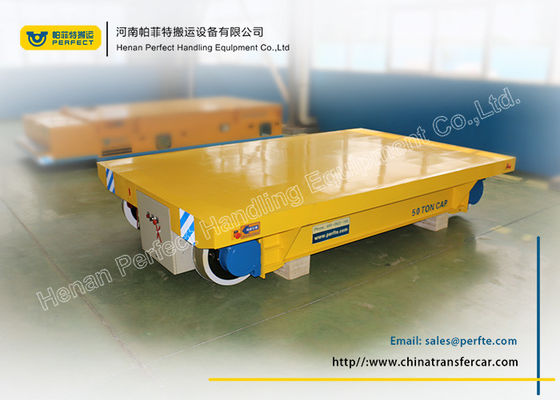

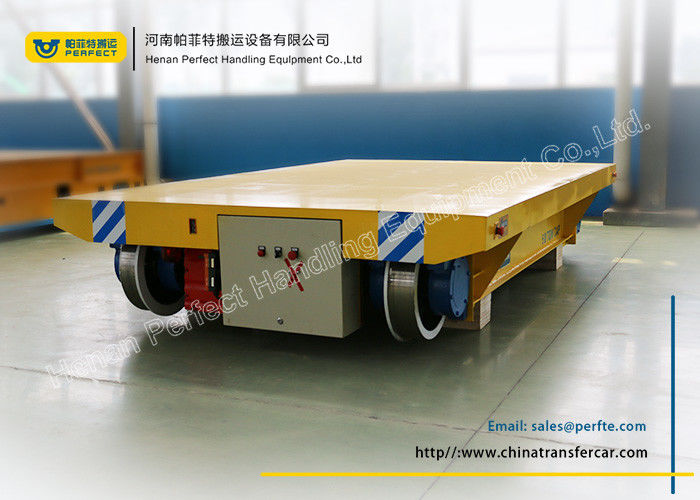

4 Rubber Wheels Flatbed Rail Factory use Electric Car Trailer
Product Introduction
BTL Series of cars is powered by dragging cable. The 380V alternating current is leaded into electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.
Why choose 4 Rubber Wheels Flatbed Rail Electric Car Trailer
The series cars are usually applied to steel mills, foundry plants and factories doing all kinds of spare parts .This series of transfer cars are much lower in hight than other series, so they are more suitable for logistics industry .
Parameters
|
Model |
BTL-2t |
BTL -20t |
BTL -50t |
BTL -100t |
BTL -150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Height(H) |
450 |
550 |
650 |
850 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
0.8 |
2.5 |
5.5 |
11 |
15 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.3 |
5.5 |
7.6 |
13.9 |
26 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
FAQ
1. Q: What is you delivery time ?
A: We will delivery the carts you ordered 45 days after we accept the prepayment.
2. Q: How do product been shipped ?
A: We export the Industrial Handling Vehicle by sea or train with full container, LCL or in Bulk.
3. Q: Do you have quality assurance for Industrial Handling Vehicle ?
A: Yes, we have one year of assurance.
Packing
Company Descraption
Henan Perfect Handling Equipment Co., Ltd. offers both standard solutions and customized solutions specially conceived to solve specific and complex handling needs. Our products not only have sold across the country,but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal and many other countrys.
