Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | Transfer Flat Cart With Turntable On Rails |
|---|---|---|---|
| Capacity: | 1-300 Ton | Application: | Industrial Filed |
| Color: | Customized | Dimension: | Customized As Practical Needs |
| After-sales Service Provided: | Engineers Available To Service Machinery | ||
| High Light: | rails transfer flat cart,transfer flat cart with turntable,1t capacity transfer flat cart |
||
Good price Factory use transfer flat cart with turntable on rails

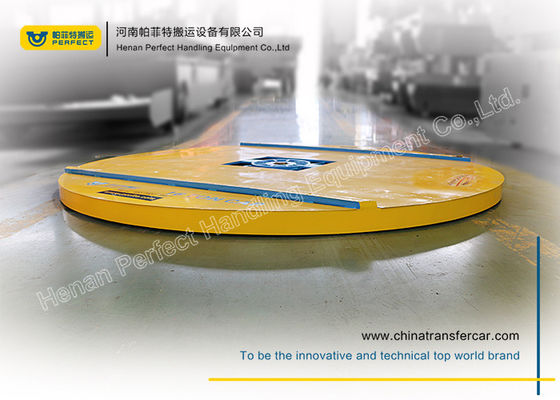

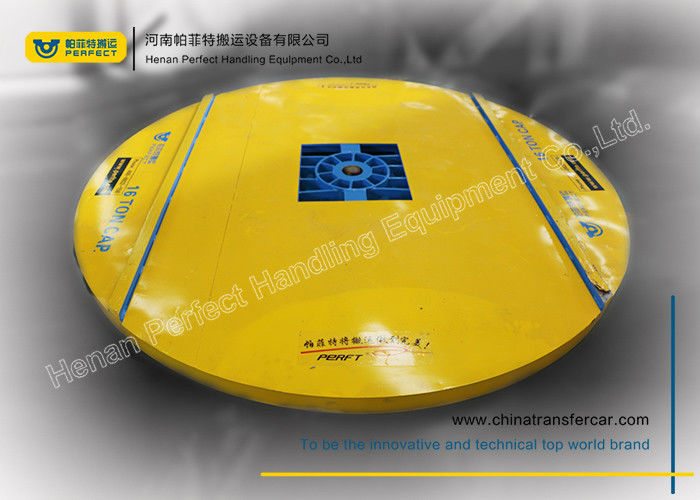

What is transfer flat cart with turntable on rails
The transfer flat cart with turntable on rails is a kind of handling system, which can make the rail car turn 90 degree on rails. The turntable system runs stedily and has the features such as high rail jointing accuracy and can meet full automatic electrical control.Cooperated with inverter and sensors, it could realize rails accurate but joint for excellent turning performance with 90/180/360 swerve angle.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
Package
