Product Details:
Payment & Shipping Terms:
|
| Product Name: | 30t Flat Bed Industry Material Handling Electric Trackless Transfer Car With Remote And Hand Wireless Control | Type: | Material Trackless Transfer Cart |
|---|---|---|---|
| Battery Capacity(Ah): | 180-600 | Ground Requirement: | Cement Floor |
| Ground Clearance(mm): | 50 | Wheels Base(mm): | 1500-1800 |
| Motor Power(Kw): | 3.5-15 | Running Speed(m/min): | 0-15 |
| High Light: | 1t material transfer cart,50t material transfer cart,flatbed motorized transfer trolley |
||

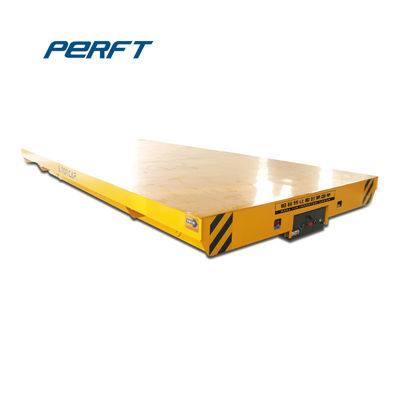

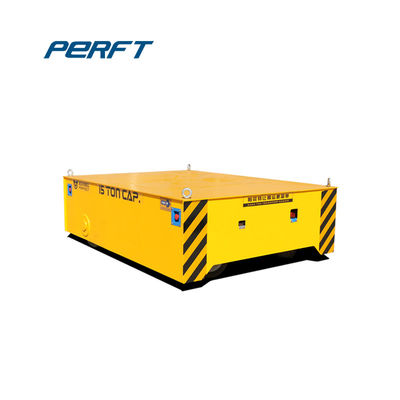

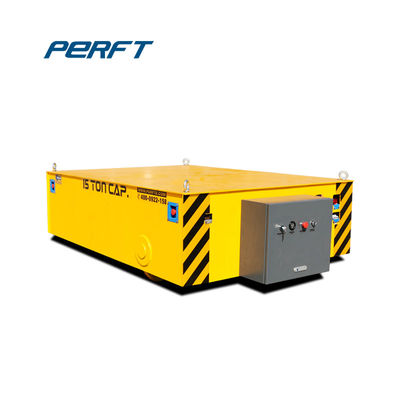

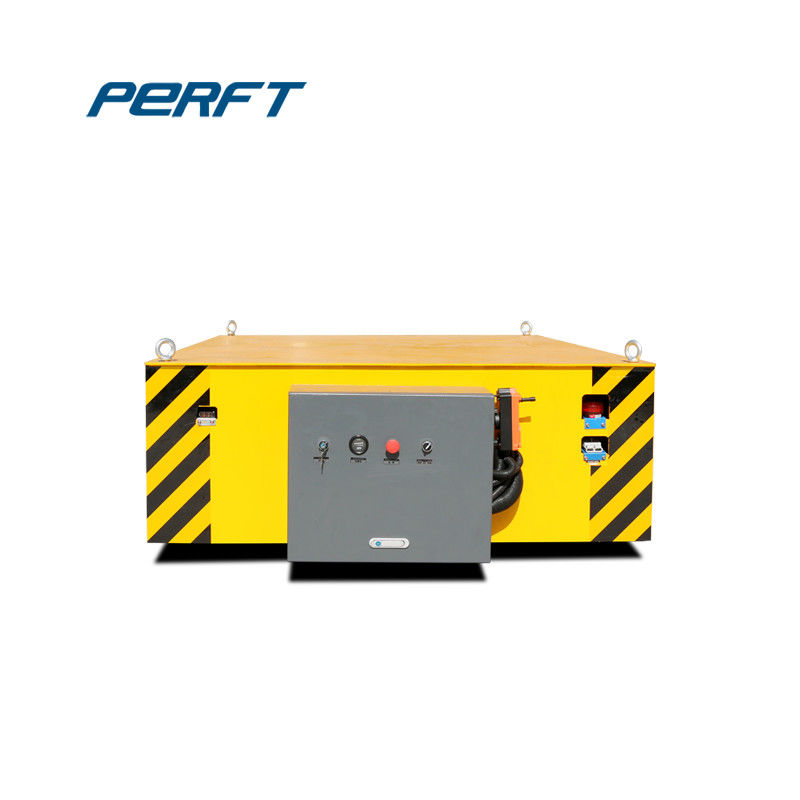

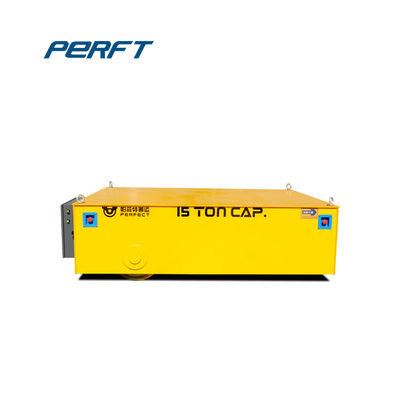

1-50T Factory use Flat Bed Material handing Transfer Cart With Remote control
Descraptions
The series transfer cart usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Cart is supplied to pulling motor through electric control system,which makes the transfer cart start,stop,move background,turn around and realize other functions.Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions.
Details
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Cement Floor
|
Application
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The Carts has been highly approved by our customers.
Processing
CNC Cutting and Preliminary Assembling
Welding and Post weld treatment
Paint finish and Debugging
Packaging & Shipping
The Heavy Load Industrial Handling body is packed with tarp, the cart wheel and parts will be packed with wooden case.
cart lenght is less than 5.9m, the width is less than 2.2m. Industrial Large Motorized Transport Carts will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the cart is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
Our Team
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
Certifications
Q & A
1.Q:What is the MOQ?
A: At present, our MOQ is 1 set.
2. Q: What is the size and load of this Trackless Transfer Car ?
A:The size and load of our this trackless transfer car is customized design according to your requirement.
3. Q:Can choose the power supply?
4. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
