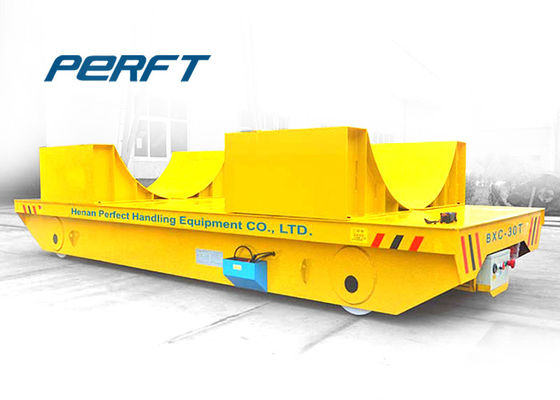

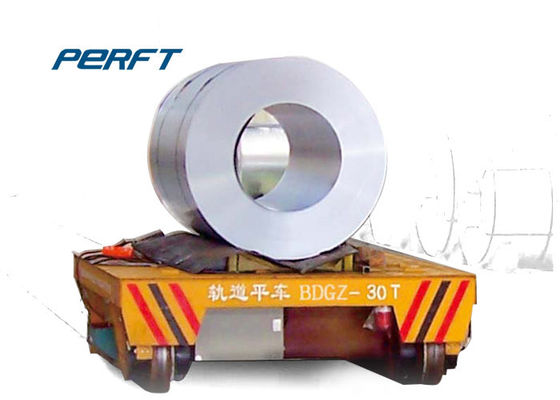

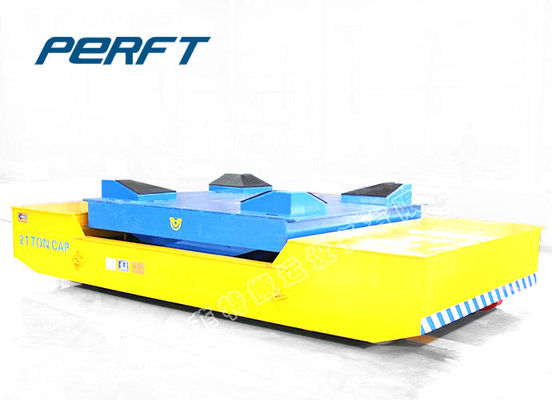

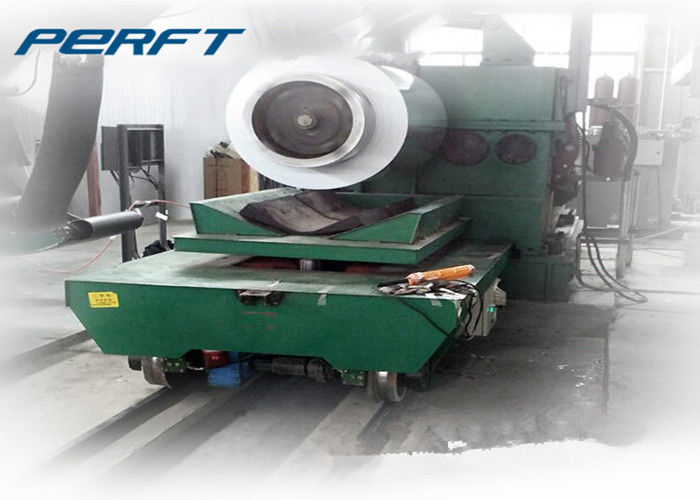

300t Factory Use Battery Power Rail Ferry Electric Transfer Cart





The cart is made up of two parts .The upper car is used for transporting cargo .The down car is usually designed to run underground.The rail is mounted underneath the car and used for connecting with other rails in workshops which makes the upper car be able to run on parallel rails.About that, our company have professionsal team,and specialized study ways, and it is about 15 historys that we insist on the item. up to now, we can provided the largest roated load---300T.





Our Advantages:

• Load capacity,table size and rail gauge can be customized on request.
• Power supply mode: Battery powered,cable powered,low voltage rail powered,busbar powered.
• Options: Warning light,radar detector,remote controller, electrical parts.
• Run on rail or floor.
• 2 years warranty.
• After-sale service provided ,engineer available overseas.
•

Parameter



Model		BWP-2T	BWP-10T	BWP-20T	BWP-30T	BWP-50T	BWP-63T	BWP-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground Clearance (mm)		50	50	50	50	50	75	75
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2



FAQ



1. Q: How to operate the electric transport cart?

A: It’s equipped with a remote controller that is used by the operator to control the transfer car movement .

2. Q: How do you guarantee the quality of the products?

A: The cart will be tested before delivery,also we got the CE SGS SASO certificates.Don’t worry,We supply after-sale service worldwide.

3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: Can we choose the power supply for battery powered flat cart?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
