Product Details:
Payment & Shipping Terms:
|

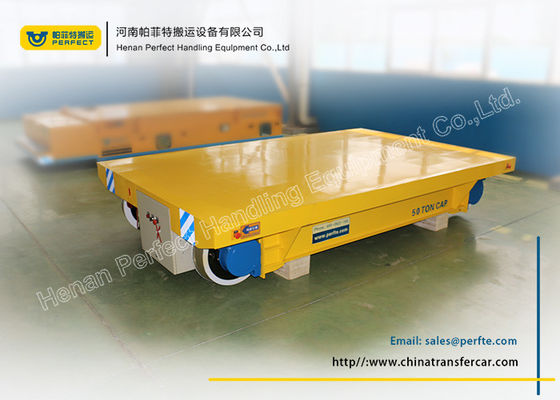

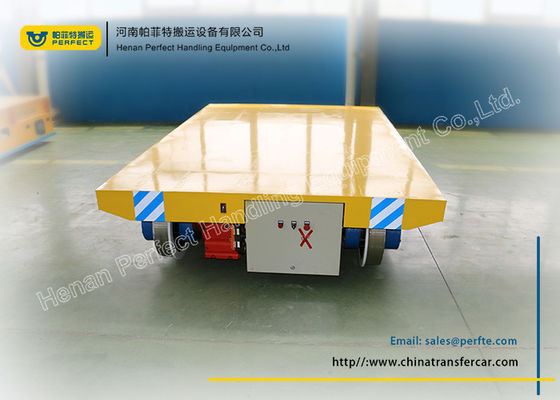

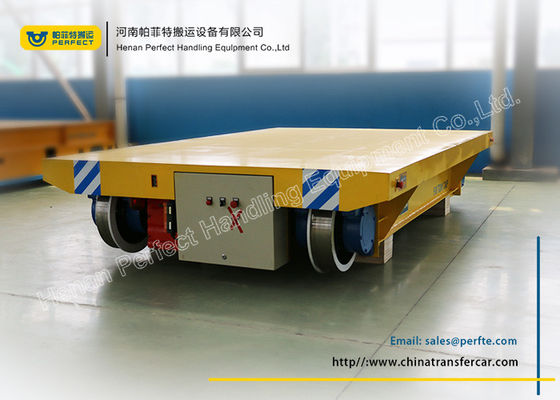

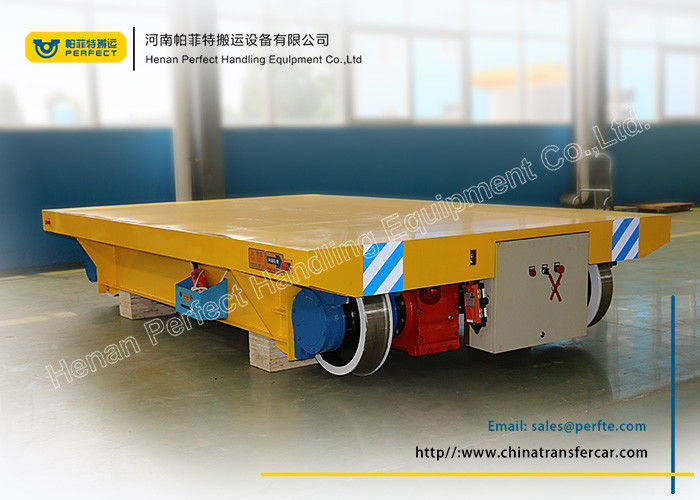

| Product Name: | Low-bed Motorized On Rail Flat Transfer Cart With 6 T Load Capacity For Industrial Light Material Transportation | Type: | Rail Transfer Cart |
|---|---|---|---|
| Wheel Diameter(mm): | 270-600 | Ground Clearance(mm): | 50 |
| Wheel Quantity: | 4 | Color: | Customized |
| Running Speed(min): | 0-25 | Running Distance(m): | 25-50 |
| High Light: | electric rail transfer cart,customization rail transfer cart,industrial rail transfer trolley |
||
Descraptions
The BJT Series is powered by cabled drum. The power source 380V alternating-current is supplied to the transfer cart motor by cable. Cable is collected and released by coiling device mounted underneath the motorized on rail flat transfer cart. The motorized on rail flat transfer cart can realize full automatic operation by PLC system. The motorized on rail flat transfer cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc.The motorized rail flat transfer car can be applied in the occasion with any loading capacity and high using frequency. If the running distance of the motorized on rail flat transfer cart is beyond 50m, the motorized on rail flat transfer cart needs to install cable arranger to help with cable rolling. The max running distance of the motorized on rail flat transfer cart is up to 200-400m.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
1. Q: What is the table size and load capacity of this electric coil transfer car?
A:The size and load of the transfer cart is customized according to your requirement.
2. Q: How do you transport the battery powered transfer cars and what is the package ?
A: The cart’s body is packed with tarp, the wheels and accessories are packed with wooden case.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: What is your MOQ?
A: The MOQ is 1 set.
5. Q:Can we choose the power supply for the electric material transfer car?
A:Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
6, Q:What certificates do you have?
A:ISO9001,CE,SASO,SGS,etc.
