Product Details:
Payment & Shipping Terms:
|
| Type: | Ladle Rail Transfer Cart | Ground Clearance(mm): | 50 |
|---|---|---|---|
| Wheel Diameter(mm): | 270-600 | Rail Inner Gauge(mm): | 1200-2000 |
| Motor Power(kw): | 1-15 | Battery Capacity: | 180-600 |
| Table Size: | Customized | Product Name: | Cable Drum Plate Steel Ladle Transfer Cart With High Temperature Resistance For Steel And Iron Plant |
| High Light: | cable drum ladle transfer car,high temperature resistance ladle transfer car,flatbed ladle transfer car |
||
Customization 1-100t Cable Drum Electic Remote control Transfer Car High Temperature Resistance
Descraptions
The cart is a large capacity raw material hot metal ladle transfer cart,and it makes the AC electricity power is transformed into AC 36v two-phas and are respectively connected to the two rails.Then the cart wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the vehicles, And then the AC 36v is transformed into DC 36v and then control the DC motor through the DC control system to make the ladle transfer cart start, stop, go forward and backward and adjust the speed and so on.
Product Parameter
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø350 | Ø400 | Ø500 | Ø500 | Ø600 | Ø600 | Ø600 | Ø600 |
| Ground Clearence(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(KN) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 3.8 | 5.5 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 |

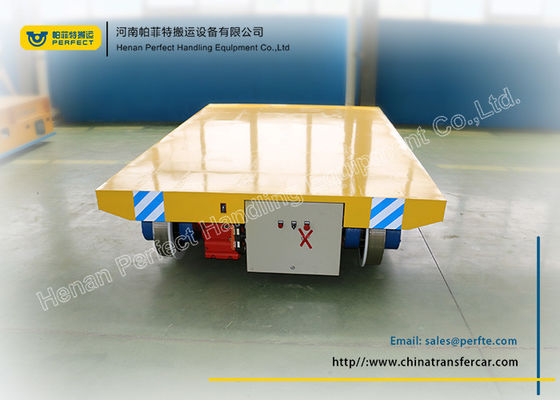

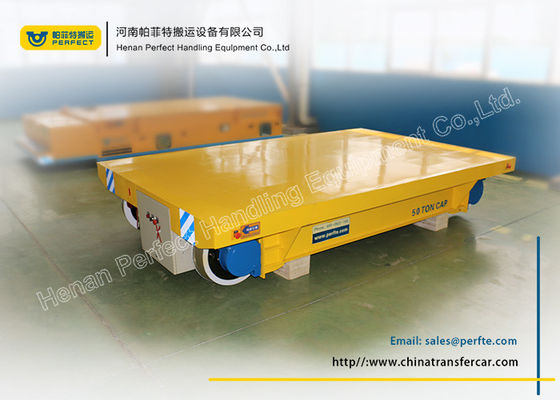

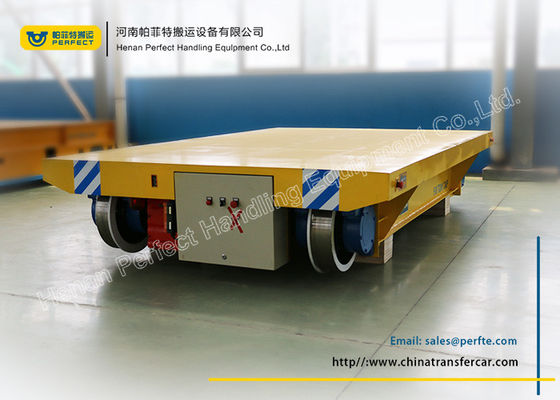

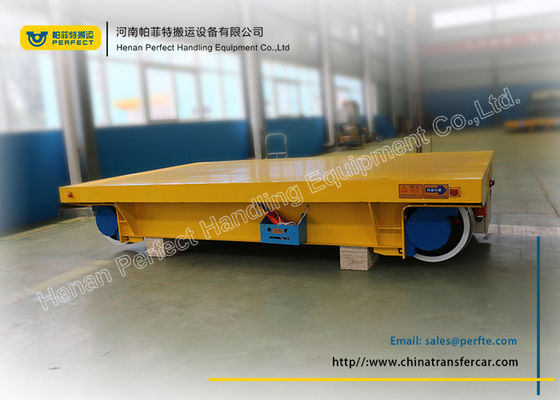

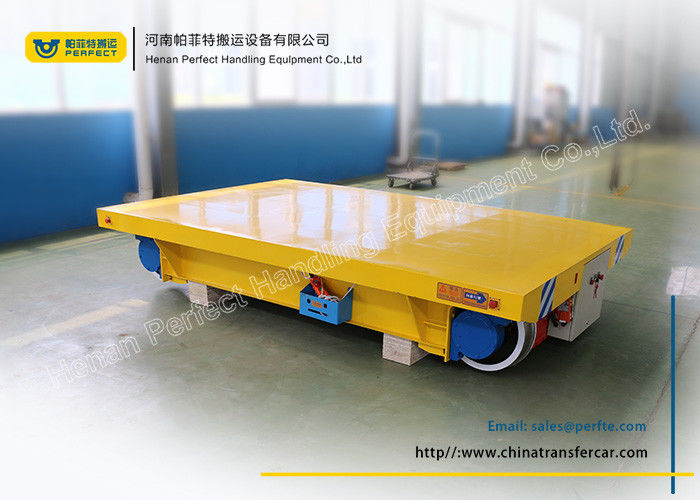

The details
Other material handling equipment
FAQ
1. Q: What is the table size and load capacity of this electric coil transfer car?
A:The size and load of the transfer cart is customized according to your requirement.
2. Q: How do you transport the battery powered transfer cars and what is the package ?
A: The cart’s body is packed with tarp, the wheels and accessories are packed with wooden case.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: What is your MOQ?
A: The MOQ is 1 set.
5. Q:Can we choose the power supply for the electric material transfer car?
A:Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
6, Q:What certificates do you have?
A:ISO9001,CE,SASO,SGS,etc.
