Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rail Powered Low Voltage Rail Electric Transfer Cart | Capacity: | 1-300T |
|---|---|---|---|
| Table Size: | Customized | Height: | Customized |
| Running Speed: | 0-50/min(Adjustable) | After-sales Service Provided: | Engineers Available To Service Machinery |
| Warranty: | 12 Months | ||
| High Light: | 50m/min battery transfer cart,curved rail battery transfer cart,flatbed battery transfer trolley |
||
Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of transfer trolley for transportation storage material on the curved rail route. Our company has been founded for 13 years and has become enterprise in the motorized transfer trolley for transportation storage material on the curved rail route business.

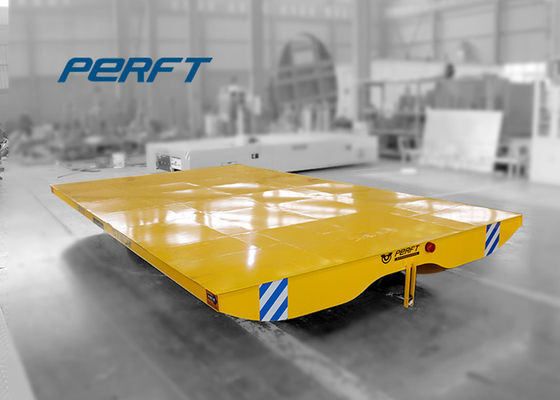

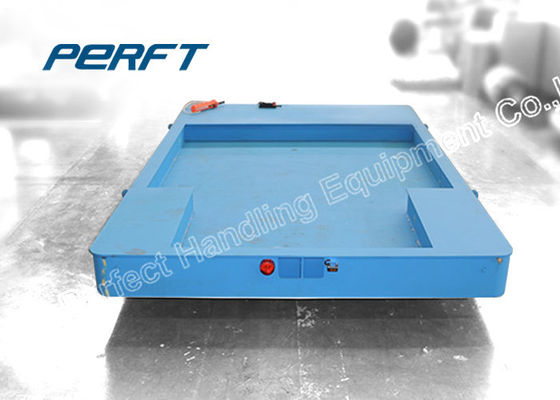

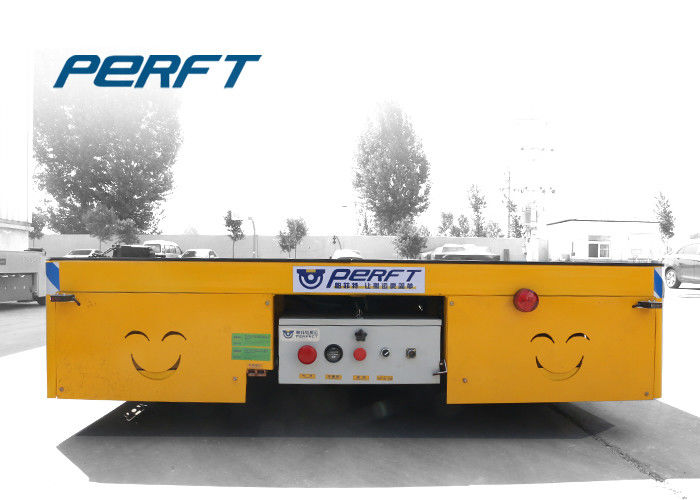

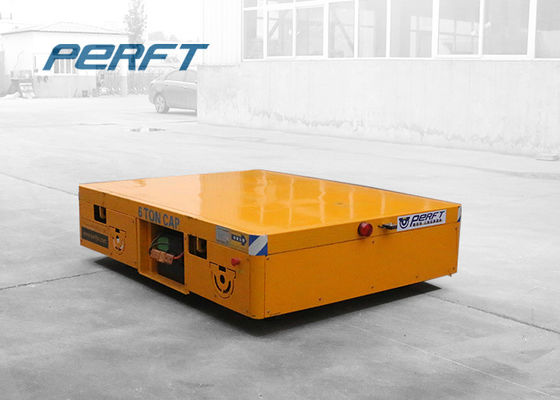

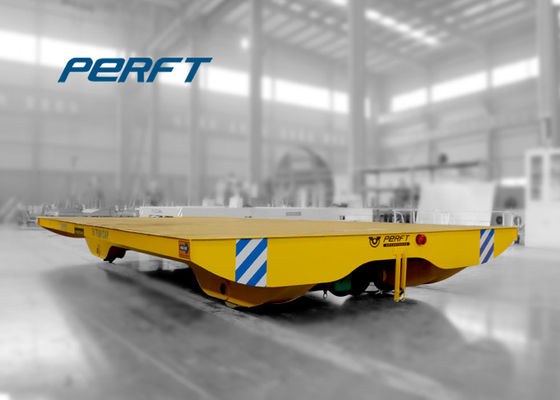

The transfer trolley for transportation storage material on the curved rail route is powered by the battery.The rails need to be insulated in erection.When the running distance is longer than 70m , the rail powered low voltage rail electric transfer cart needs to be increased to raise the voltage.
FAQ
Steel Coil Heavy Material Handling Large Table Battery Powered Rail Car
1. Q: What term of payment do you accept ?
A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.
2. Q: What is you delivery time ?
A: We will delivery the carts you ordered 45 days after we accept the prepayment.
3. Q: How do product been shipped ?
A: We export the Industrial Handling Vehicle by sea or train with full container, LCL or in Bulk.
4. Q: Do you have quality assurance for Industrial Handling Vehicle ?
A: Yes, we have one year of assurance.
| Model | BDGZ-2t | BDGZ-20t | BDGZ-50t | BDGZ-100t | BDGZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
