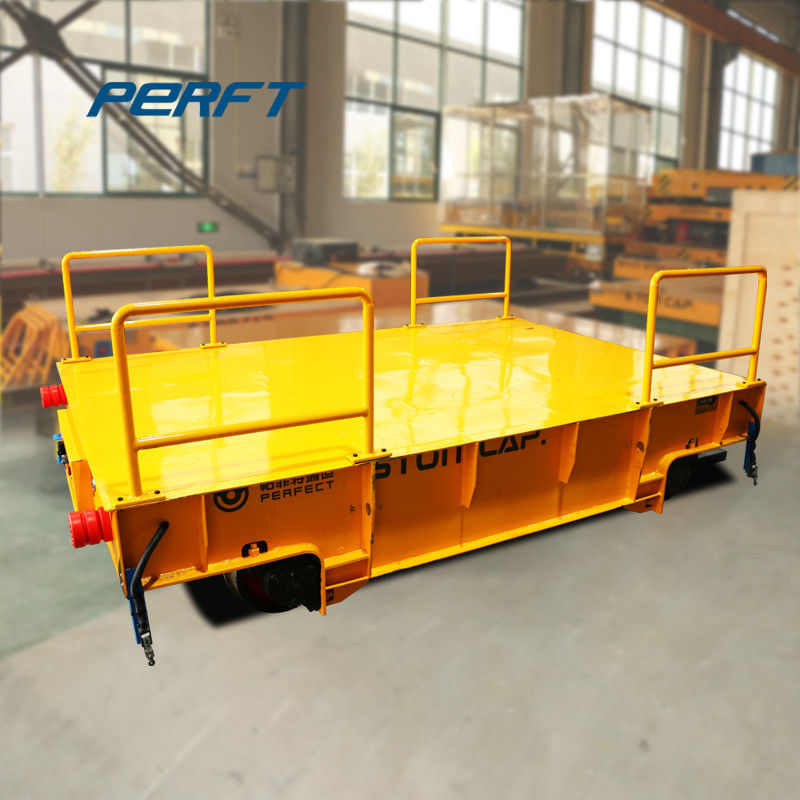

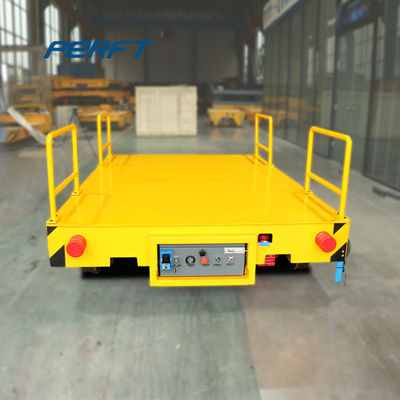

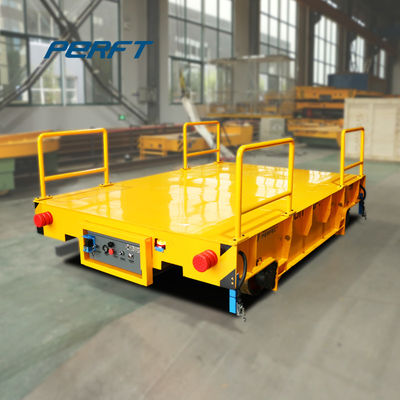

Electric Steel Wheel Ladle Transfer Car With Battery Power

Electric Steel Wheel Ladle Transfer Car With Battery Power
Electric Steel Wheel Ladle Transfer Car With Battery Power Electric Steel Wheel Ladle Transfer Car With Battery Power Electric Steel Wheel Ladle Transfer Car With Battery Power Electric Steel Wheel Ladle Transfer Car With Battery Power

Large Image :  Electric Steel Wheel Ladle Transfer Car With Battery Power

Product Details:
Place of Origin: China(mainland)
Brand Name: cargo handling electric transfer cars on rail
Certification: CE ISO SGS
Model Number: cargo handling electric transfer cars on rail
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000~7200 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100sets month
Detailed Product Description
Product Name: Cargo Handling Electric Transfer Cars On Rail Table Size: Customized
Color: Customized Running Speed: 0-20m/min
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

sgs ladle transfer car

,

steel wheel ladle transfer car

,

customization motorized transfer trolley

Electric Ladle Steel Wheel Transfer Wagon Rail With Elecric battery power



Working principle of Rail Transport Trolley


This kind of rail transport trolley is battery powered. The batteriey is installed in the trolley. The battery supply electricity to the DC motor through the electrical control system to make the transport trolley start, stop, go forward and backward and realize other functions.



Electric Steel Wheel Ladle Transfer Car With Battery Power 0





Application of Rail Transport Trolley



This kind of rail transport trolley is suitable to be used in the long running distance transportation and low using frequency. For horizontal load transfers of a wide range of material, we have the heavy duty, high quality battery rail transport trolley solutions you need. They are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. Battery transport trolleys can even be used as a stable yet moveable machine base.





Parameter of Rail Transport Trolley



Model

BXC-2t

BXC-20t

BXC-50t

BXC-100t

BXC-150t

Rated Load(t)

2

20

50

100

150

Table Size (mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Height(H)

450

550

650

900

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

200

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5

10

15

Battery Capacity

180

180

330

440

600

Battery Voltage

24

48

48

72

72

Running Time When Full Load

4.32

4

3.3

3.2

2.9

Running Distance for One Charge(Km)

6.5

4.8

4

3.8

3.2

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.8

5.9

8

14.6

26.8

Recommended Rail Model

P15

P24

P43

QU100

QU100





Certificate



Customized heavy duty coil high temperature steel ladle workshop handling tractor
