| Product Name: | Trackless Handling Bogie Trackless Transfer Car Industrial Material Handling Equipment | Material: | Carbon Steel |
|---|---|---|---|
| Running Speed: | 20(m/min) | Motor Power(Kw): | 3.5-15 |
| Table Size: | Customized | Color: | Customized |
| High Light: | 5t material transfer cart,flatbed material transfer cart heavy load,flatbed handling trackless transfer cart |
||
5T Heavy Load High Quality Trackless Handling Bogie Material Transfer Cart for factories
Introduction
Compact in design, the die electric transfer trailer can handle upwards of 300ton and work well in areas with limited floor space. These motorized trackless transport cart is more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads, The transfer carts of material handling equipment running on cement can offer flexibility as they can be customized to suit specific needs. The material handling transfer carts can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result can be increased production and throughput.
Application of Die Electric Transfer Trailer
We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want.

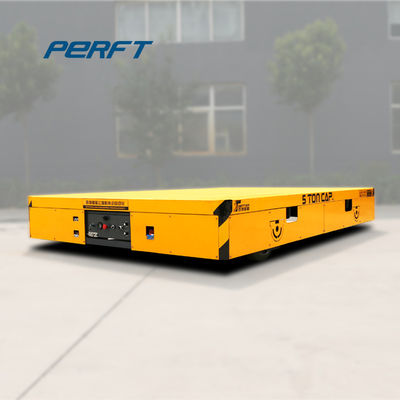

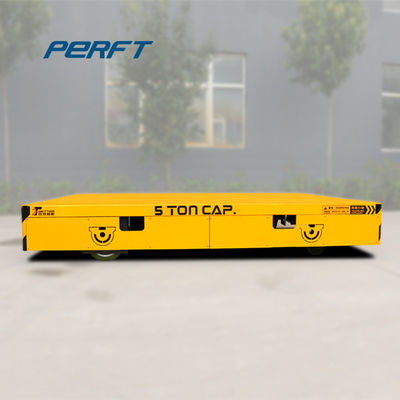

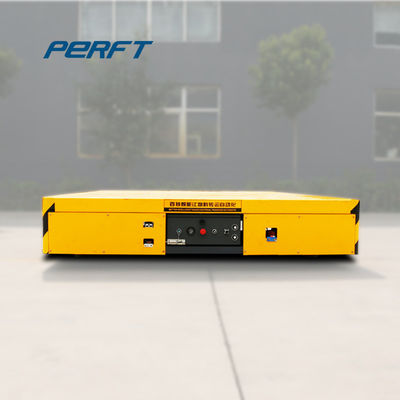

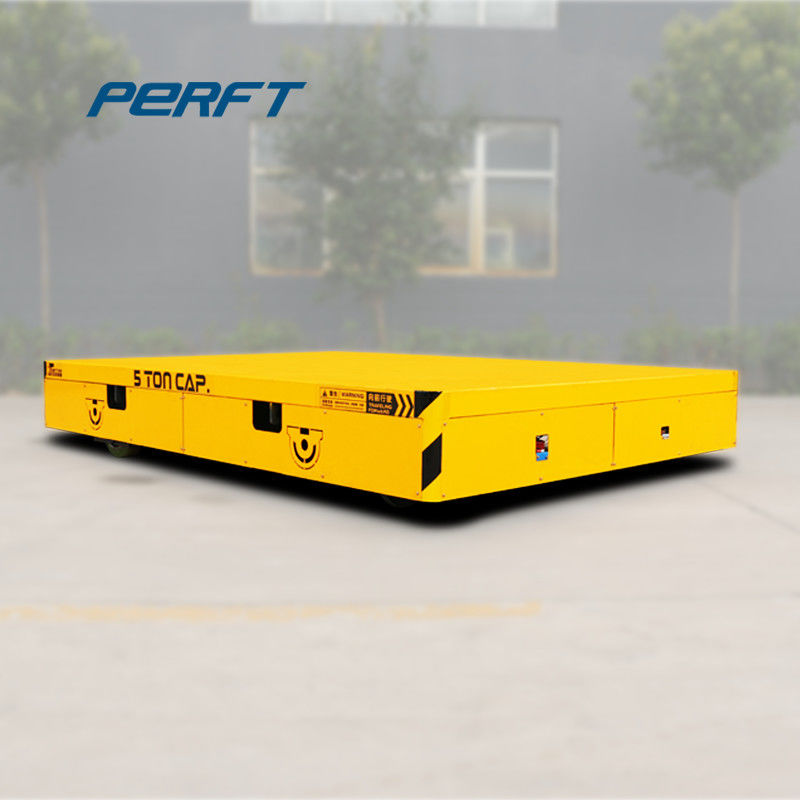

Detailed Image
Technical parameter table
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Our Company
Henan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
