Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | Heavy Capacity Motorized Trackless Transfer Cart |
|---|---|---|---|
| After-sales Service Provide: | Engineers Available To Service Machinery Overseas | Color: | Customized |
| Running Speed: | 20m/min | Table Size: | Customized |
| High Light: | engine industry coil transfer cart,self driven coil transfer cart,workshop transport coil transfer trolley |
||

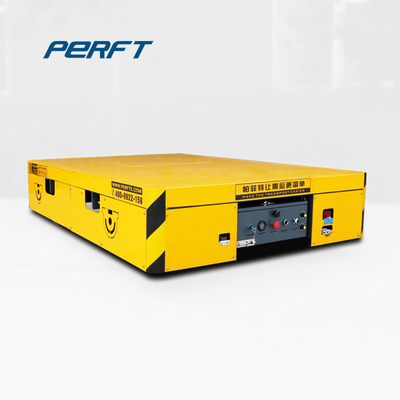

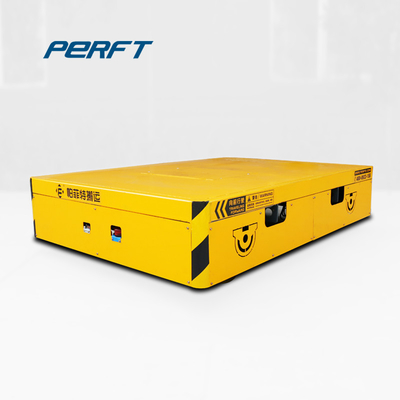

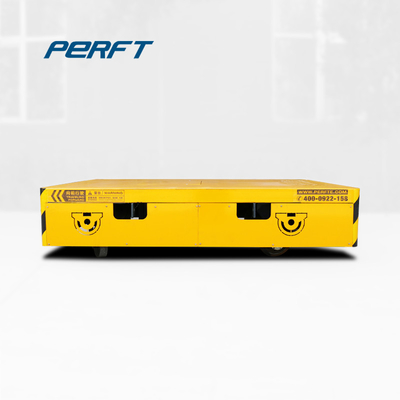

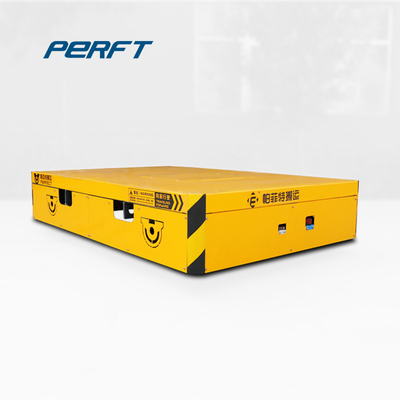

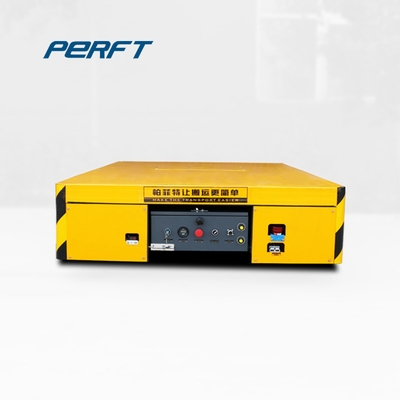

Engine Industry Coil Cart Using Self-Driven Rail Transfer Trolley for workshop transport
Introduction of Material Transfer Car
PERFECT Transfer Cars are available in a number of varieties and capacities, from 1 to 300 tons. They are modular in construction and allow movement changes at ground level in all types of industries and applications. The heavy load directional transfer car operates with battery power. And the car is autonomous and can move freely on smooth surfaces both on the inside and the outside on the ship. PERFECT Material Transfer Car also comes in many sizes, styles and capacities designed to suit your operations specific needs.
Our transfer car has crash protection and equipped with sound and light alarm systems. Adopting electromagnetic brake, response speed, braking distance is short, safe to use. Polyurethane solid wheels and tubeless rubber wheels are without damaging the floor coatings. The material transfer car has been widely used in many kinds of workshops and other occasions.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
Application of Transfer Car
Transfer car is usually used to transfer loads from one hall to another hall in the horizontal plane or to any point in the horizontal direction. It can easily transfer the load to spaces that the gantry cranes or overhead cranes cannot reach. The transfer car of PERFECT allows movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production line, and so on.
