| Product Name: | Anti-explosion 20 Tons Transfer Cart Die Transfer Cart For Press Rooms Grainger | Usage: | Handling Ladle |
|---|---|---|---|
| Application: | Transfer Materials | Color: | Customized |
| Capacity: | Customized | After-sales Service Provided: | Engineers Available To Service Machinery |
| Certificates: | CE ISO SGS | ||
| High Light: | handling ladle electric transfer cart,30 ton electric transfer cart,handling ladle rail transfer cart |
||
Introduction about product
This type of cart are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. It is widely used as a short-distance transportation tool, and can also be used as a crane to transport heavy objects in the workshop. Used for crossing over.

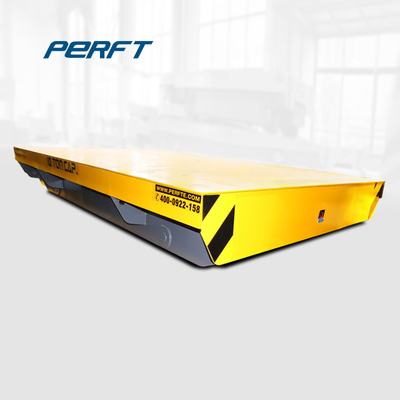

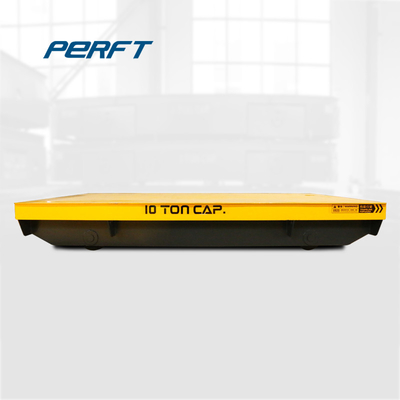

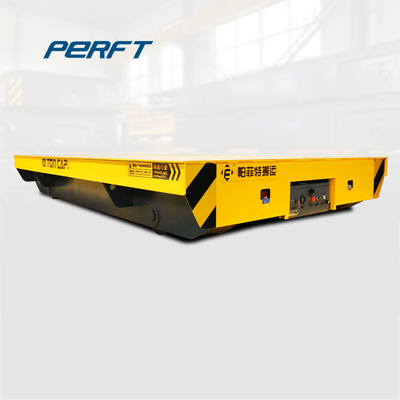

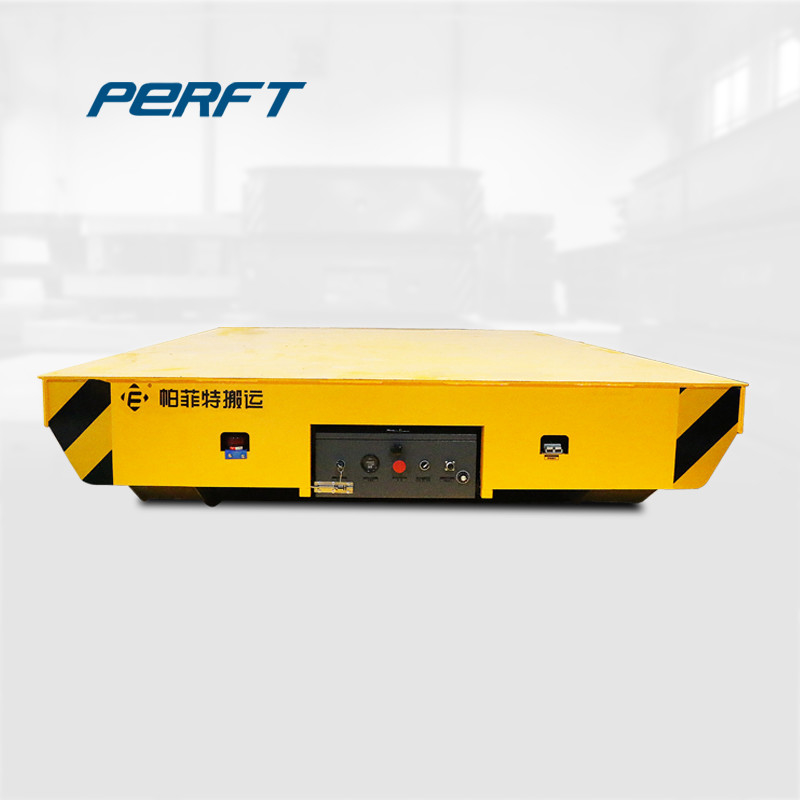

Image of productions
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Henan Perfect Handling Equipment Co.ltd. We are a collection of research and development, design, manufacturing as one of professional international company of handling equipment. Our company specialized 16 years, getting 8 national patents, so we have the best quality and the lower price.
