Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rail Based Trolley Material Transfer Cart For Heavy Industrial Materials Handling | Original: | Henan China |
|---|---|---|---|
| Wheel Diameter(mm): | 350-550 | Ground Clearance(mm): | 50-80 |
| Wheel Quantity: | 4 | Running Speed(m/min): | 0-25 |
| Type: | Material Handling Equipment | ||
| High Light: | Rail Based Trolley Material Transfer Cart,30T Rail Based Trolley,DC Powered Rail Material Transfer Cart |
||

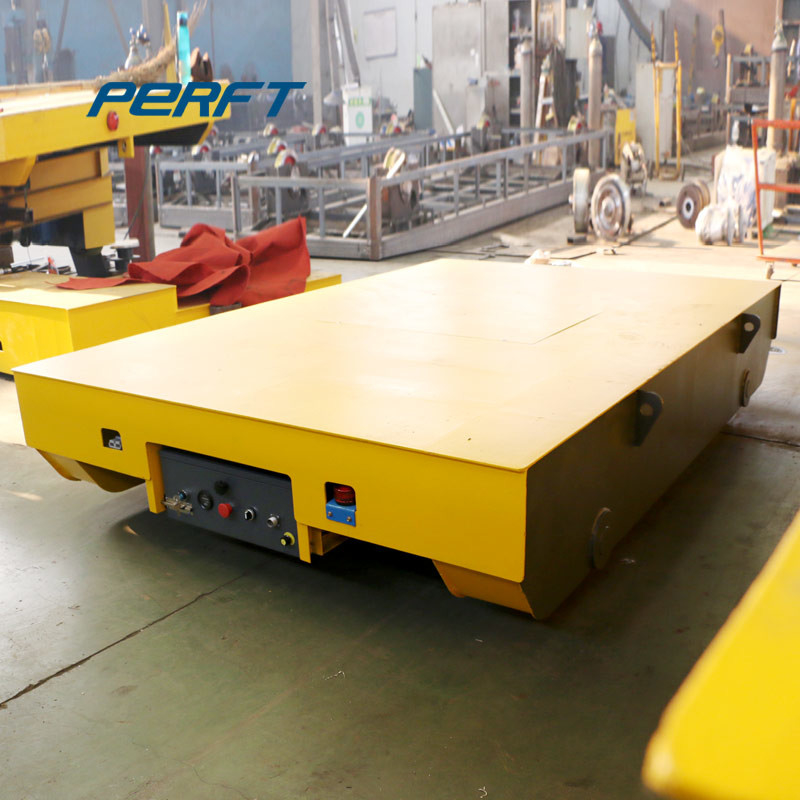

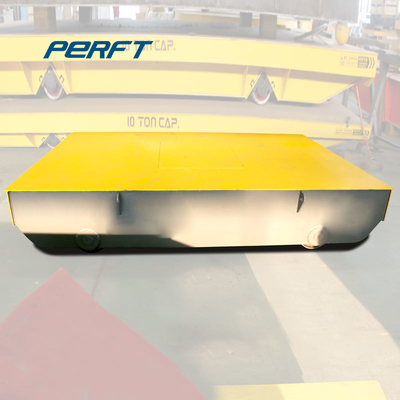

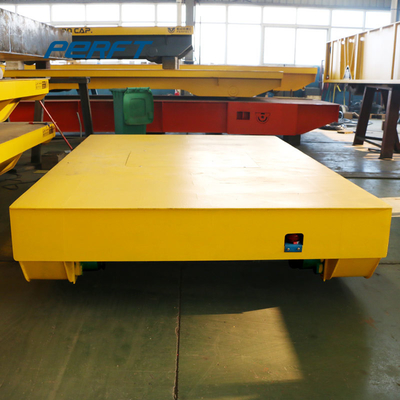

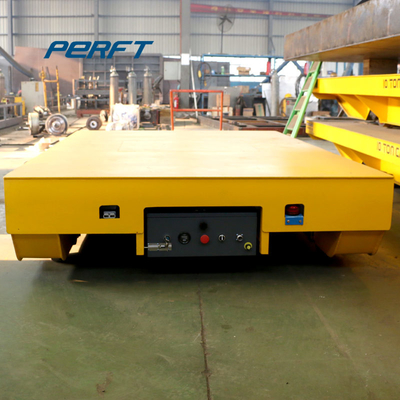

30T Rail Based Trolley Material Transfer Cart Flat Vehicle Trolley
Introductions of flat vihicle
The Flat Vehicle Trolley shuttles along a fixed path. Standard Vehicle Trolley is DC powered. Standard Trolley come in lengths of 4000, 4500 or 5000 mm and widths of 2200 or 2500mm. Larger railway Trolley capacities and sizes are available for specific applications. Our Flat Vehicle Trolley loads up to 300 tons. They can be also AC powered. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base.
Product Parameters
|
Model
|
BDG-2T | BDG-10T | BDG-20T | BDG-30T | BDG-50T | BDG-63T | BDG-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size(mm) | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 500 | 550 | 600 | 650 | 700 | 800 | 1200 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 15 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Details
Applicable
The Flat Vehicle Trolley is mainly applied in assembly line, metallurgy industry , warehouse transport, ship industry , workpiece transport in workshop, lathe transport, steel factory, construction, petroleum industry, energy, chemical industry, railway etc.
