Product Details:
Payment & Shipping Terms:
|
| Product Name: | 20t Battery Powered Material Transfer Cart Running On Cement Floor | Wheel Diameter(mm): | 250-500 |
|---|---|---|---|
| Ground Clearance(mm): | 50-80 | Wheel Quantity: | 4 |
| Running Speed(m/min): | 0-20 | Type: | Rail Transfer Car |
| High Light: | Electric Motorized Transport Bogie,Cement Floor Motorized Transport Bogie,30T Electric Material Transfer Cart |
||

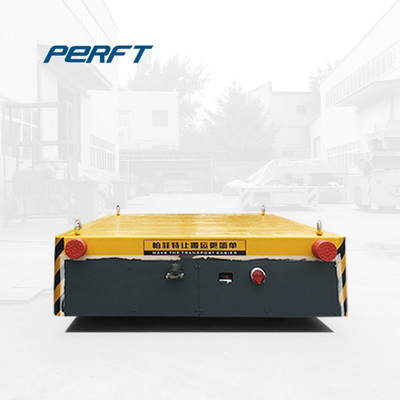

30 T Electric Motorized Transport Bogie On Cement Floor
Descraptions
The Electric Transfer Bogie is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
Product parameters
| Moldel | BWP-5T | BWP-10T | BWP-25T | BWP-40T | BWP-65T | BWP-100T |
| Length(mm) | 2000 | 3600 | 4500 | 5000 | 5600 | 6000 |
| Width(mm) | 1500 | 2000 | 2200 | 2500 | 2500 | 2600 |
| Height(mm) | 450 | 500 | 600 | 650 | 700 | 800 |
| Wheel Diameter(mm) | 270 | 300 | 400 | 500 | 600 | 600 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 75 | 75 |
| Motor Power(Kw) | 1 | 1.6 | 2.2 | 4 | 6.3 | 8/10 |
| Running Speed(m/min) | 0-30 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 142.8 | 221.4 | 343.8 |
| Battery Capacity (Ah) | 180 | 160 | 250 | 330 | 400 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 72 |
| Running time when full load(h) | 4.5 | 4.8 | 4 | 3.5 | 3.3 | 3 |
The Battery of transfer bogie
1. The battery capacity is depend on the cart load capacity. It can run 4 hours when full-load for no sport working. The cart will load and unload, and will stop times, so the working time is much longer than 4 hours.
2. The battery need 6-8 hours for charging. When it is left 30% power, it will need 4 hours to charge full.
3. The battery is very easy for the replacement. It can be taken out by a forklift or a trolley. The replacement will just need about 5 minutes.
4. The service lift of the battery is 3-4 years, you can charge 1200-1500 times with normal use.
Customization
PERFECT is specialized in designing and manufacturing of Electric Transfer Bogie:
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Customer Case
Package and shipping
*For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
