Product Details:
Payment & Shipping Terms:
|
| Product Name: | 360 Degree Rotate Trackless Transfer Cart | Color: | Customized |
|---|---|---|---|
| Application: | Transfer Materials | Capacity: | 1-300ton |
| Running Speed: | 0-20m/min | After-sales Service Provided: | Engineers Available To Service Machinery |
| Table Size: | Customized | ||
| High Light: | Electric Ferry Heavy Load Cart,360 Degree Rotate Material Transfer Cart,300ton Heavy Load Cart |
||

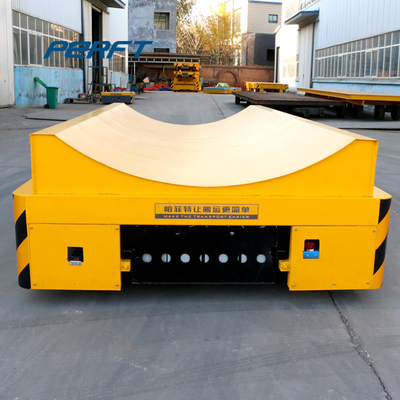

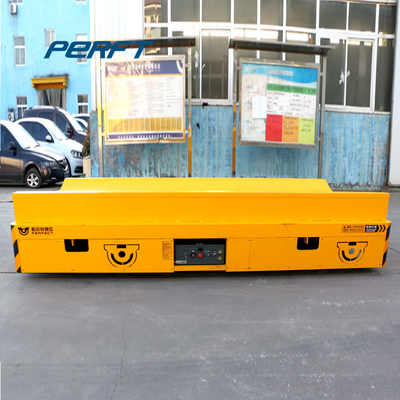

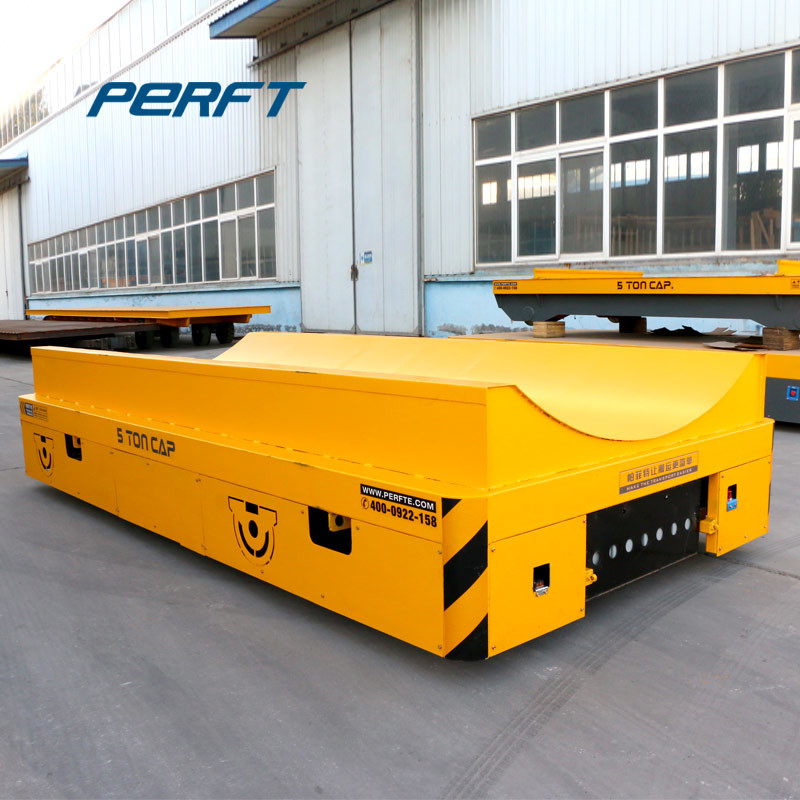

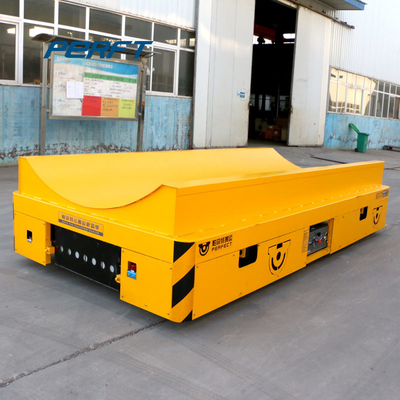

Features of Ferry Transfer Cart
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
1. Q: What is the size and load of this electric 25 ton transfer cart ?
A:The size and load of our this electric 25 ton transfer cart is customized design according to your requirement.
2. Q: How should I operate this electric 25 ton transfer cart ?
A: The electric 25 ton transfer cart is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this electric 25 ton transfer cart ?
A: Yes, there are electromagnetic brakes on the electric 25 ton transfer cart. When the electric 25 ton transfer cart is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the electric 25 ton transfer cart, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the electric 25 ton transfer cart and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the electric 25 ton transfer cart to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special electric 25 ton transfer cart, such as hydraulic lifting electric 25 ton transfer cart, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
