30T Battery Electric Transfer Cart Motorized Handling Carrier For Building Site

Name: 30T Battery Electric Transfer Cart Motorized Handling Carrier For Building Site
Brand: PERFECT
SKU: BXC
Price: 1 USD
Availability: InStock
Rating: 4.9 (147 reviews)

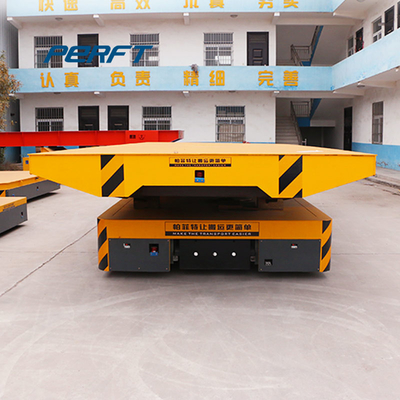

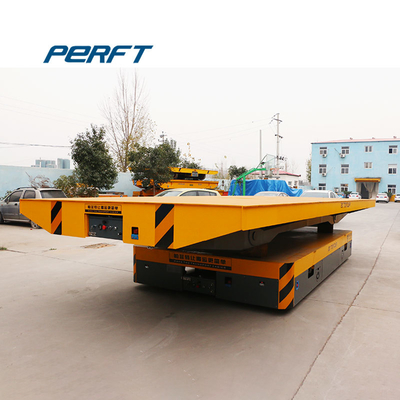

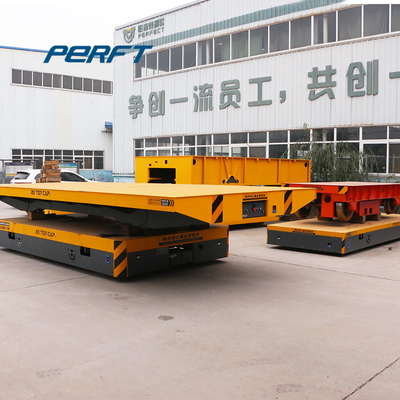

Large Image : 30T Battery Electric Transfer Cart Motorized Handling Carrier For Building Site

Product Details:

Place of Origin:	Xinxiang, China
Brand Name:	PERFECT
Certification:	CE, SGS, ISO
Model Number:	BXC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time:	45 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	75 Sets per month

Contact Now

Detailed Product Description

Powered Source:	Storage Battery / Lead-acid Battery	Operation Mode:	Pandent And Remote Controller And PLC
Cart Frame:	Q235B	Rail Gauge:	1435mm (Customized)
Color:	Yellow/Customized	Running Distance:	No Limited
Wheel Type:	Cast Steel Wheel	Safrty Device:	Buffer, Alarm Light, Emergency Stop Buttons
Special Function:	Anti-Explosion, Heat-Resistant, Lifting, Dumpling	Dimension:	Customized
High Light:	Motorized Electric Transfer Cart , Dumpling Battery Electric Transfer Cart , 30T Battery Transfer Cart

30T Custom Battery Electric Transfer Cart Motorized Handling Carrier for Building Site

Application about battery power tarnsfer cart

Assembly Line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc.
Warehouse transport: The cart is applied to transfer heavy material from one warehouse to another or from warehouse to factory (eg.transfer paper coils in paper mill, transfer large package ), it can travel in all kinds of rails. With automatically operate, it can greatly improve the working efficiency.
Ship industry: Due to the large load capacity, the cart is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.).
The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
Workshop: The cart is mainly applied in machining workshop, manufacturing workshop, mold workshop to transfer machining parts, finished products, castings etc.
Painting room: The cart should be producing fire during working. In order to avoid explosion, the motor, reducer, electric appliance, pendant and alarm should protected and explosion-proof.

Why Choose this serise of electric cart

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
---- Can run on the "C" "S" "L" shape rials Due to the power is from the battery with cable, the running distance is unlimited and can run on types rails.

Characters of Electric Railway Platform

Anti-explosion
Anti-high temperature
Suitable for ferry condition
Apply to various occasions
Stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
It has no strict requirement for the construction of the railway
No limit of moving distance
Safe and convenient operation for there is no wire outside the car
Adjustable speed

Technical Parameters of cart

BXC SERIES TRANSFER CART TECHNICAL PARAMETER TABLE
Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(Km)		6.5	4.8	4	3.8	3.2
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Why choose us?

PERFECT's electric railway platforms are all by no less than 120% Load Bearing Safety test before shipping.
PERFECT's electric railway platforms are all trustworthy and legitimate names in the industry.
PERFECT's electric railway platforms are design and built meeting JB/T6127-10 and Crane Girder Standards ensure durability and long lifetime.
PERFECT's electric railway platforms' manufacturing capacity range from 1 ton to 300 tons.
All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
Working normally before shipping and easy operation,No need professional training operator.
Heady duty packaging to provide protection during shipping.
More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of factory material transfer carts.
We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail cart drawing and operation manual.

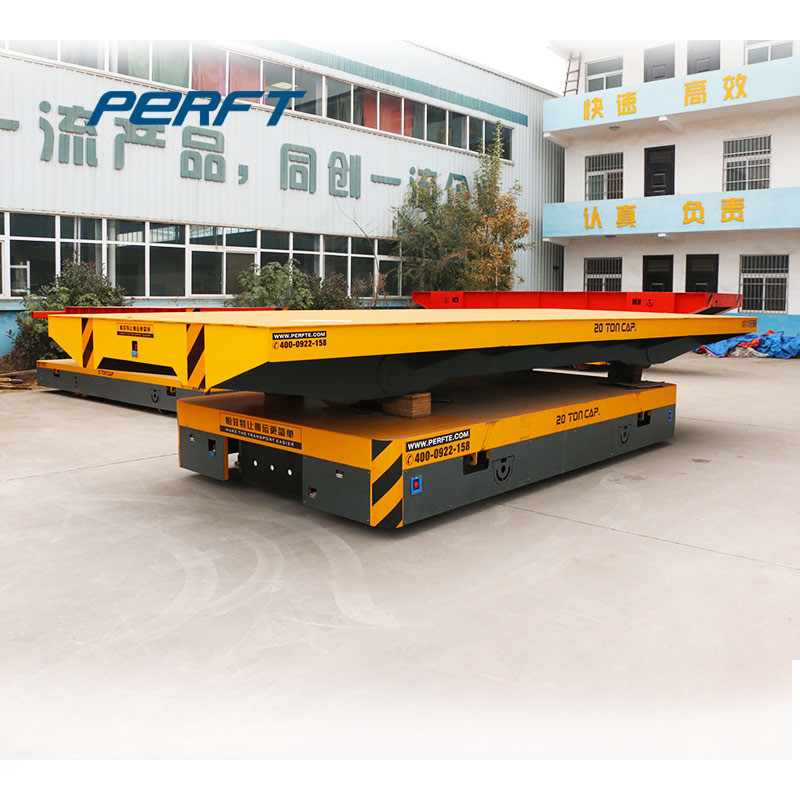

30T Battery Electric Transfer Cart Motorized Handling Carrier For Building Site 2
