Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heavy Duty Battery Powered Trackless Transfer Cart | Material: | Q235 |
|---|---|---|---|
| Capacity: | 1-300T | Color: | Customized |
| Application: | Industrial Filed | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery | ||
| High Light: | 100t Heavy Materials Electric Transfer Cart,100t Transport Carriage,Q235 Electric Transfer Cart |
||

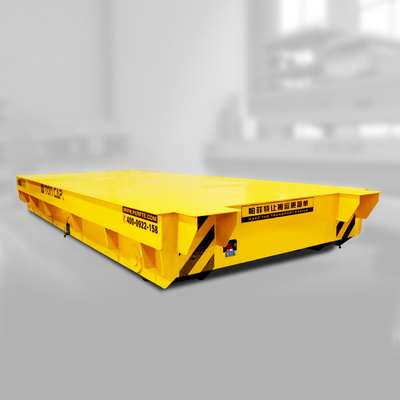

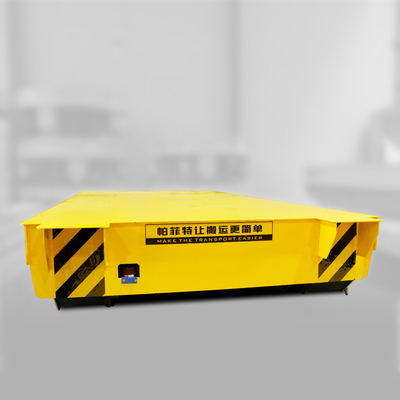

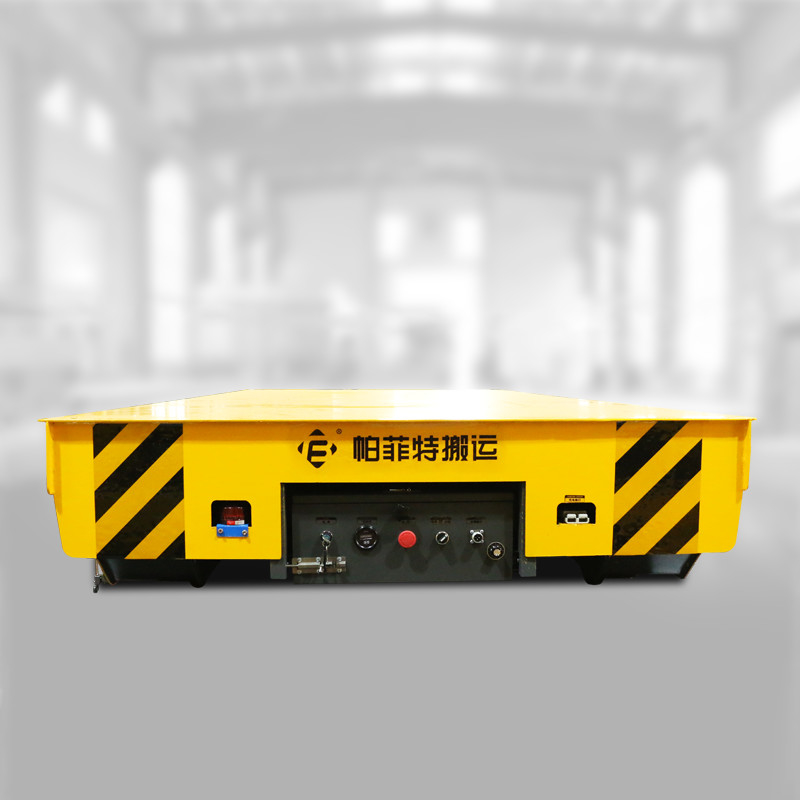

100t Transport Carriage Electric transfer cart to move heavy materials
introduction
PERFECT is specialized in designing and manufacturing of heavy duty material transport equipment. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport solution, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. The coil transfer carts are used to transport steel coils and pipes, die, machine parts, paper products for manufacturing industry; The factory transport solution is mainly to offer heavy duty horizontal transportation for manufacturing;while the motorized battery operated transport vehicle specially apply to transport heavy loads from one warehouse to another. With the steel box girder structure and safety devices make the electric transfer vehicle with easily, precisely and safely move up to 200 tons.
| Model | BXC-5t | BXC-20t | BXC-30t | BXC-40t | BXC-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
applIcations
Uses of heavy duty motorized industrial transfer flat carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
