| Product Name: | Electric Rail Transfer Cart For Steel Mill | Place Of Origin: | Henan, China (Mainland) |
|---|---|---|---|
| Color: | Customized | Capacity: | 1-300ton |
| Application: | Industrial Filed | Item: | CART |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE ISO SGS |
| High Light: | Steel Coils Railway Transfer Cart,300ton Material Handling Electric Transfer Cart,Electric Material Transfer Cart 20m/min |
||

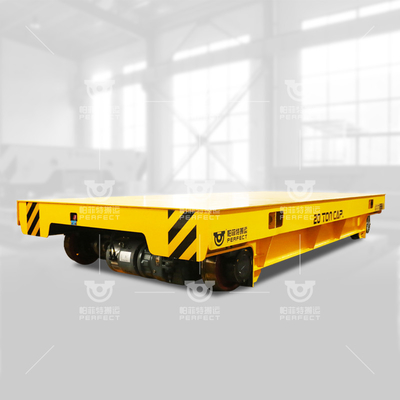

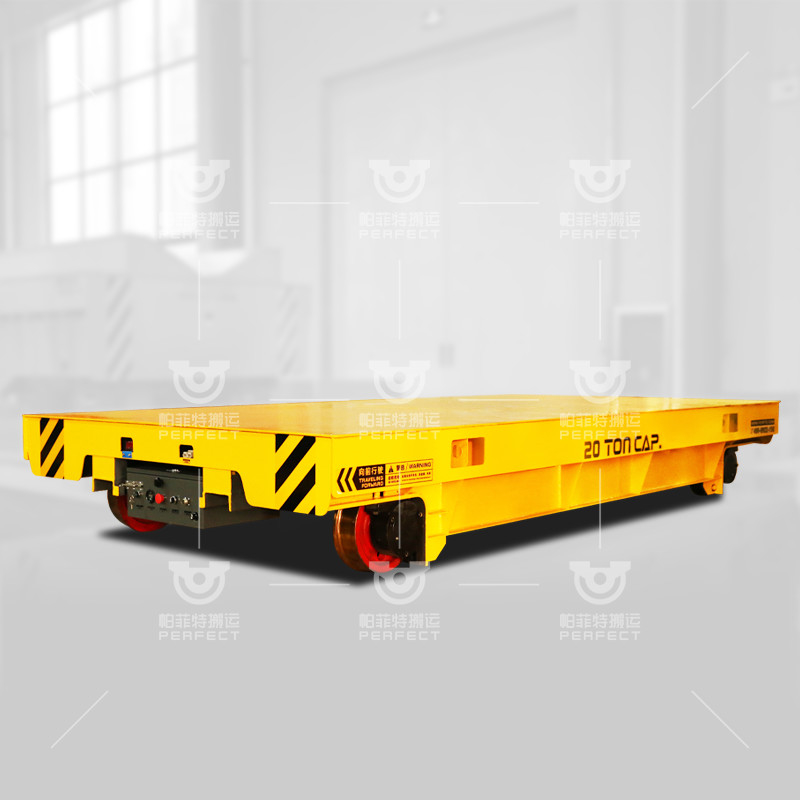

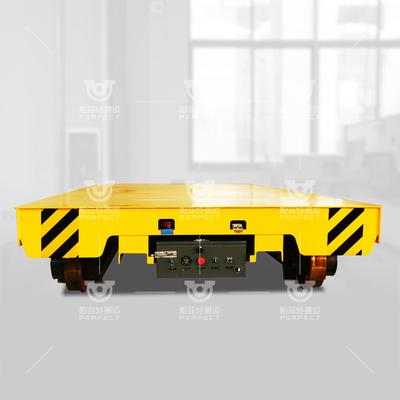

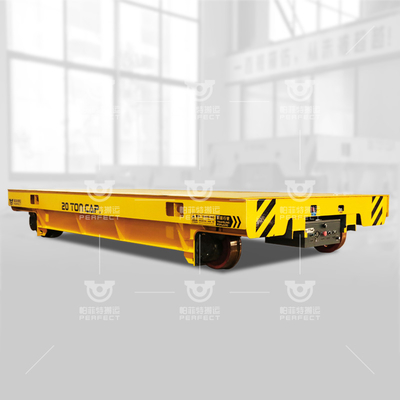

Our coil transfer cart are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
Parameter
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Factory visit
Currently, our products not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators.
We have been specializing in transfer cart manufacture for over 15 years.With advanced equipment,excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products can be used in industrial,steel,pharmacy,mining and many other lines. So we can assure that we will provide high quality and cost-effective products for you.
