Product Details:
Payment & Shipping Terms:
|
| Motor Power(Kw): | 3.5-15 | Running Speed(m/min): | 20 |
|---|---|---|---|
| Product Name: | 10 T Material Handling Electric Battery Powered Transfer Cart | Material: | Carbon Steel |
| Turnning Radius(mm): | 2501-5201 | Axles Distance(mm): | 2500-5200 |
| Running Speed(m/min): | 0-15 | ||
| High Light: | Large Die Mold Electric Transfer Cart,10Ton Material Handling Electric Transfer Cart,PLC Carbon Steel Material Transfer Cart |
||

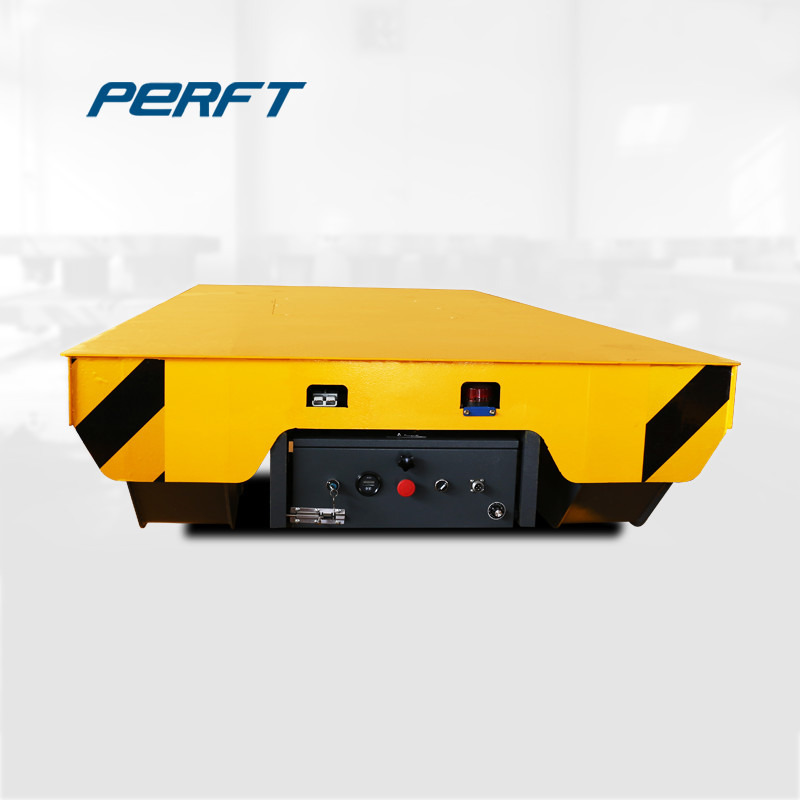

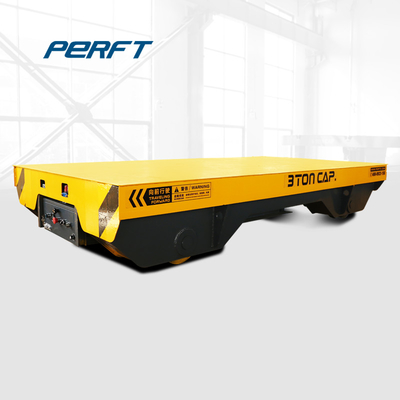

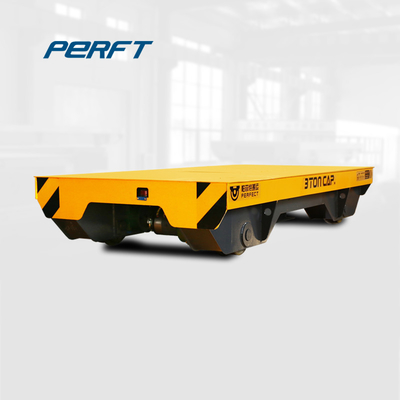

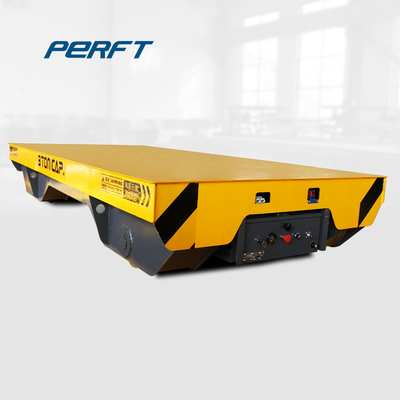

10 t Material handling Large Die Mold Electric Transfer Cart
Introductions
Perfect Material Handling offers a wide range of Electric Railroad Car specifically designed for the unique needs of both stamping and molding. These products include Die Transport Equipment, Die Cart, and Die Transfer Trolleys and Die Trailers Systems.
This Electric Railroad Car could run on railways or cement floor which is chosen according to the transportation route or clients' project plan. The selecting concept: the rail transport cart is mainly used for fixed route no need of rotation; while the trackless transfer trolley on cement floor can realize 360° direction turning.
Advantages
1. Running freely on the cemment floor.
2. Not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning.etc.
3. Power supply ways can be customized.
4. No damage to the cemment floor.
5. Can be customizable,such as:capacity,table size,running speed,supply power...
6. PLC system.
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
How to choose cart
There are types transfer carts, each designed for different applications. They are:
Twed tybe cart- For loads up to 60 ton. Carts have casters or crane wheels and are manually moved on smooth to semi-smooth floors or are towed behind lift trucks or behind powered carts mounted on rail. They are an economical alternative to purchasing a second powered cart. Winches can also be used to pull carts of this type for on-rail applications. Carts can be sized according to requirements of work areas with space constraints.
On-Rail Type Carts - For loads up to 100 ton. Carts are mounted on steel rail for shuttling along a fixed path. They can be AC powered or DC battery powered. Typically used for moving materials such as steel or tanks of liquids from one location to another. Larger cart capacities and sizes are available for specific applications. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable moveable machine base.
Steerable Type Carts - For loads up to 45 ton. Carts have two fixed and two swivel casters and are DC battery powered (optional AC powered). Carts are designed to travel on smooth to semi-smooth level floors. Customization is available for specific applications.
