Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cable Drum Power Railroad 15T Transfer Cart | Usage: | Heavy Duty |
|---|---|---|---|
| Color: | Customized | Capacity: | Customized |
| Running Speed: | 0-20m/min | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | Industrial Cable Drum Power Railroad Cart,Liquid Steel Transport Railroad Cart,10T Material Transfer Cart |
||

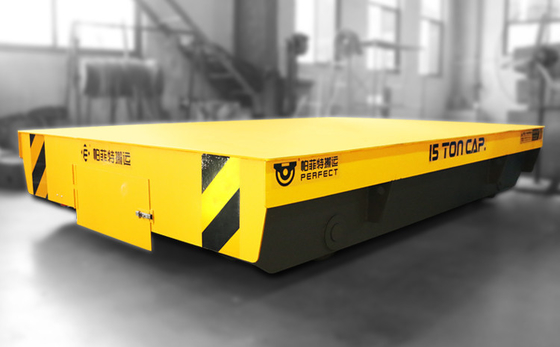

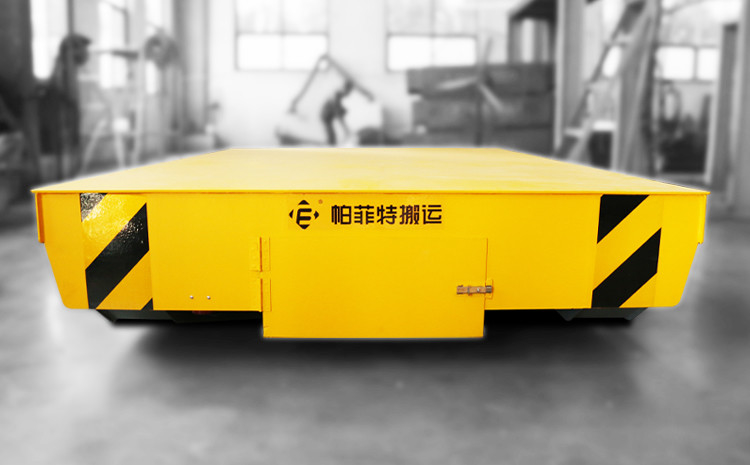

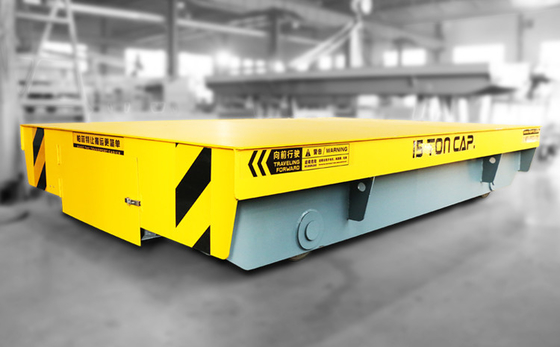

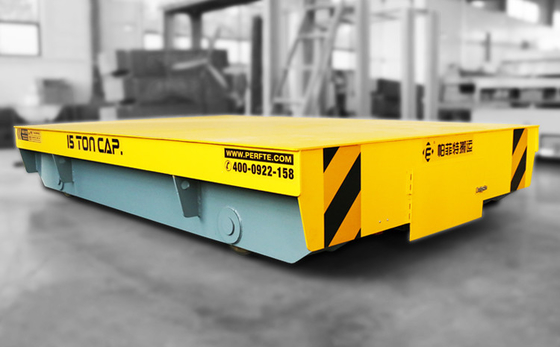

10T Liquid Steel Transport industrial cable drum power railroad cart
Our BXC series ladle transfer cart is powered by battery. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed. The heat insulating material is used to prevent the high temperature. In case to handle emergency situations, two motors are assemlied in the car to make sure the machine works smoothly when one motor is broken.
| Model | BTL-2t | BTL-20t | BTL-50t | BTL-100t | BDGS-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) |
0-20
|
|||||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
